ID # 39044372

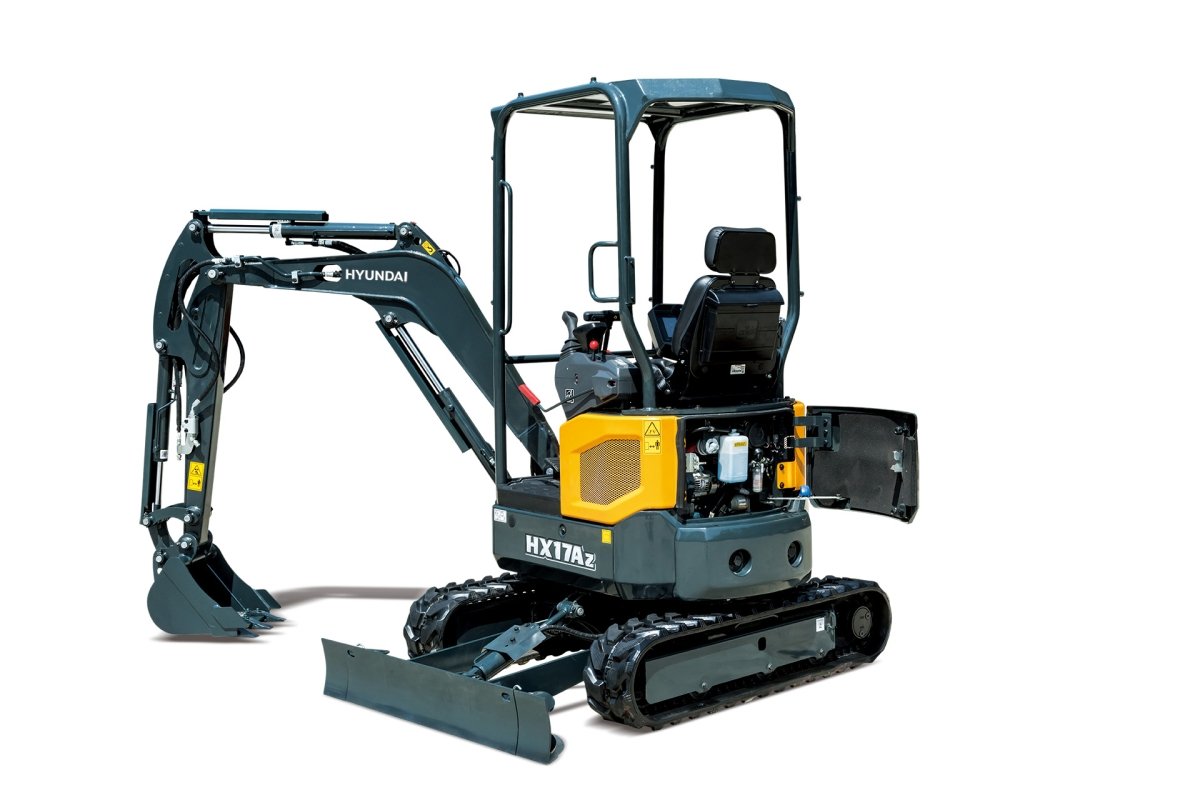

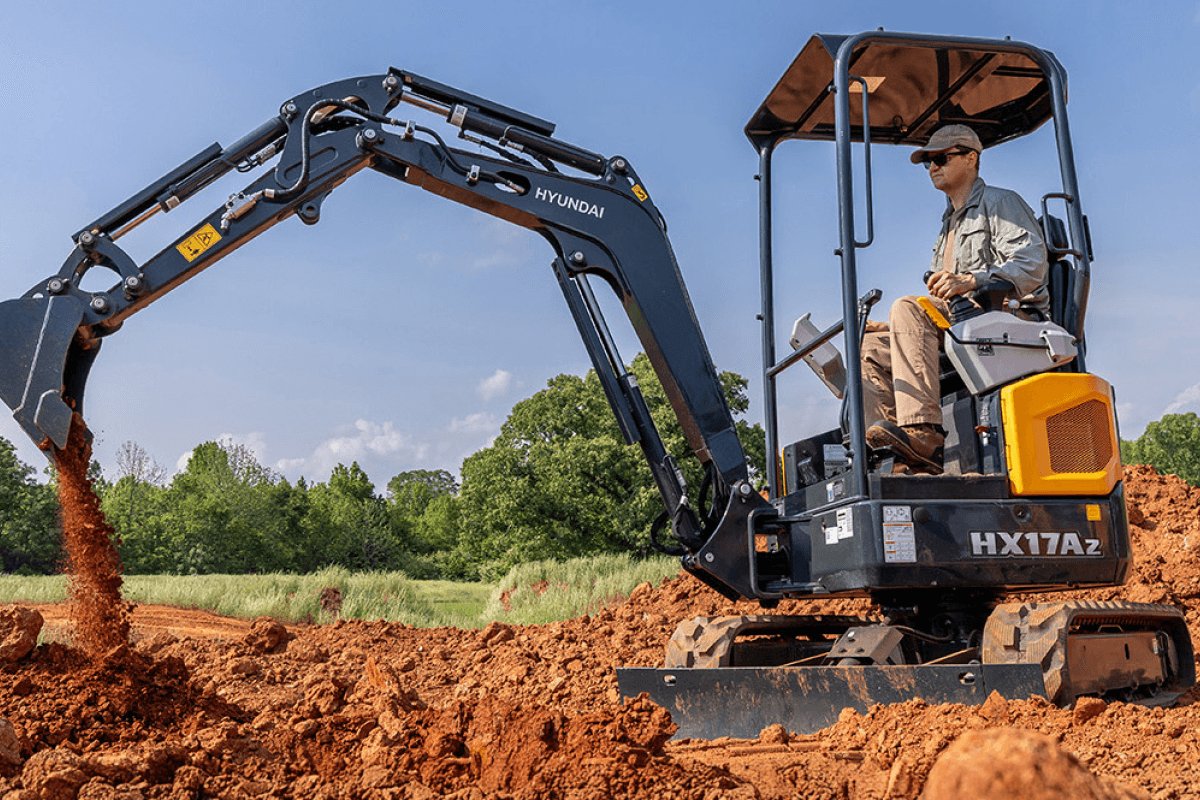

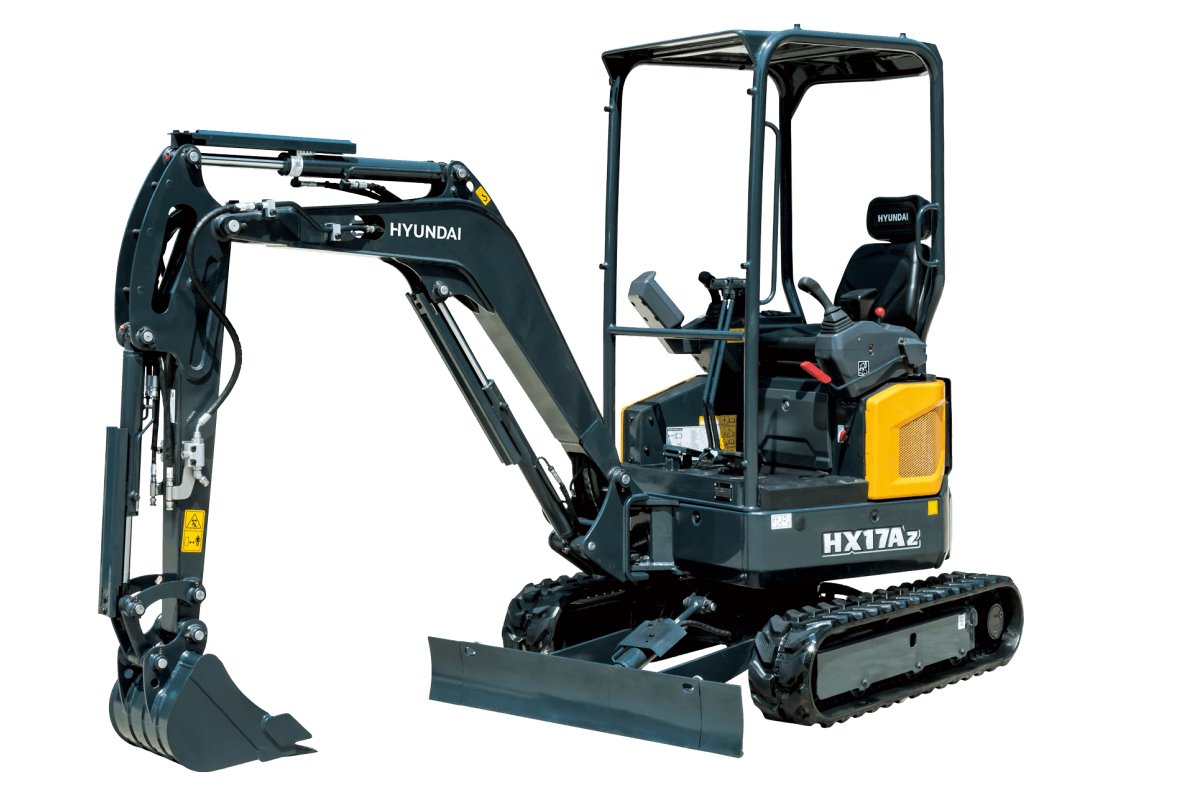

Hyundai HX17AZ

  • Hyundai HX17AZ
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview
Innovative hydraulic system technologies make the HX17AZ excavator fast, smooth and easy to control. The HX series is designed for maximum performance to keep the operator working productively. Operating a HX17AZ excavator is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.
Specifications
Model
HX17AZ
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
16 hp @ 2,300 rpm
SWING SPEED
9.16 rpm
ENGINE MODEL
Kubota D902-E4B
ARM CROWD FORCE
1,812 lb.
BUCKET CAPACITY
0.05 yd³
OPERATING WEIGHT
4,365 lb.
MAX. DIGGING DEPTH
8' 0.1"
MAX. DIGGING REACH
18' 4" (5.58 m)
TAIL SWING RADIUS
2' 4.3"
MAX TRAVEL SPEED (MPH)
2.5 mph
BUCKET BREAKOUT FORCE (ISO)
3,668 lb.
reliability and durability

Hyundai HX17AZ RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HX17AZ is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai HX17AZ DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
performance

Hyundai HX17AZ

KUBOTA TIER 4 FINAL ENGINE

The HX17AZ features a KUBOTA D902 Tier 4 Final diesel engine with a vertical, water-cooled 4-cycle direct injector.

Hyundai HX17AZ

AUXILIARY HYDRAULIC FLOW

Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.

Hyundai HX17AZ

Dozer Blade

Blade height is adjusted by maneuvering the joystick.

Hyundai HX17AZ

ZERO-TAIL SWING

The HA17AZ has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.
convenience

Hyundai HX17AZ

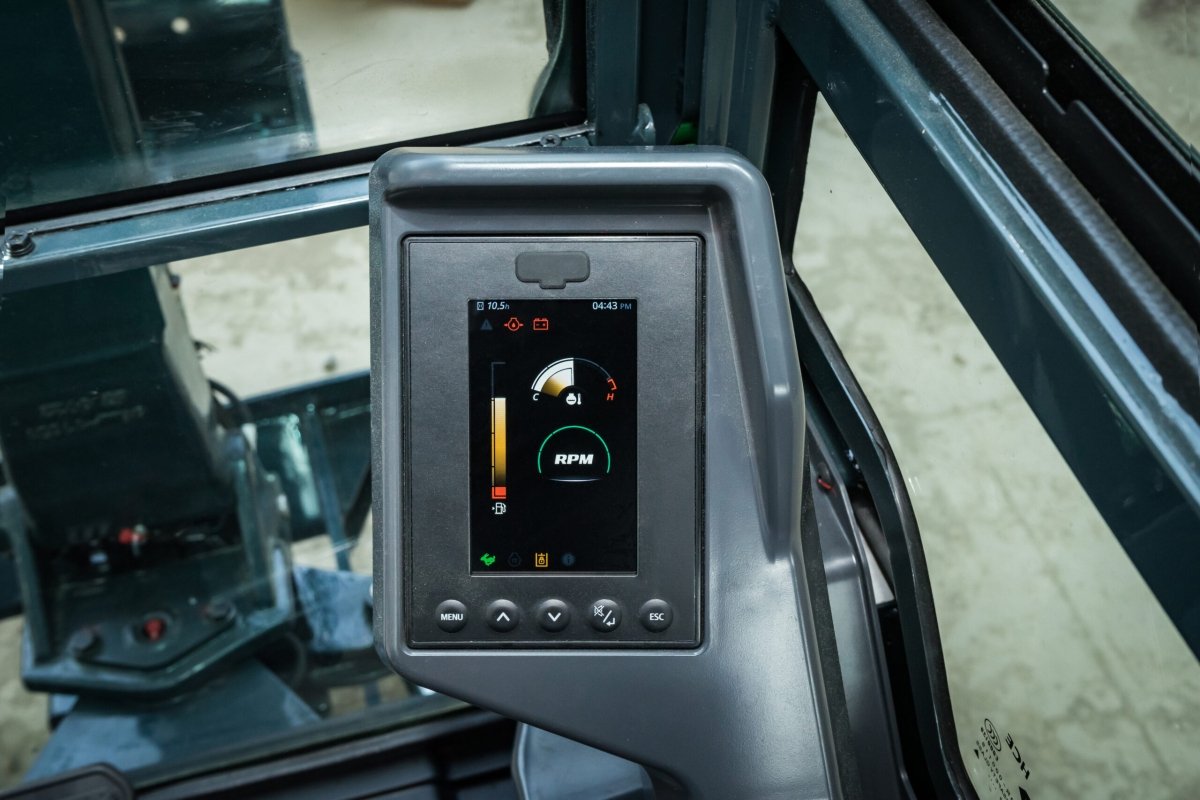

5-INCH FULL-COLOR LCD MONITOR

The Hyundai HX17AZ features a 5-inch full-color LCD monitor with IP68 rating, providing operators with clear and comprehensive information for efficient machine control and monitoring during operations.

Hyundai HX17AZ

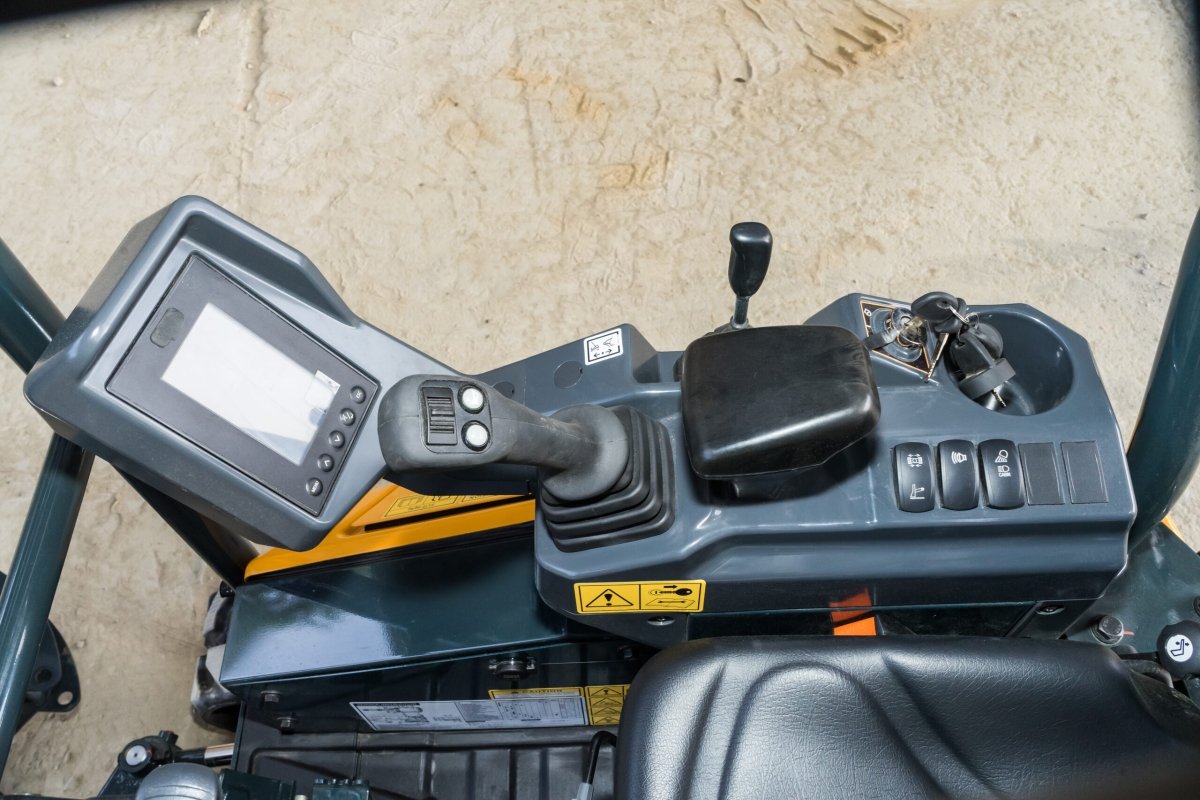

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade. Easy-to-access control switches on the left side console improve operating comfort and productivity.
serviceability

Hyundai HX17AZ

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

Hyundai HX17AZ

CENTRALIZED LUBRICATION

Centralized lubrication bank for faster, easier service and maintenance.
safety

Hyundai HX17AZ

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

Hyundai HX17AZ

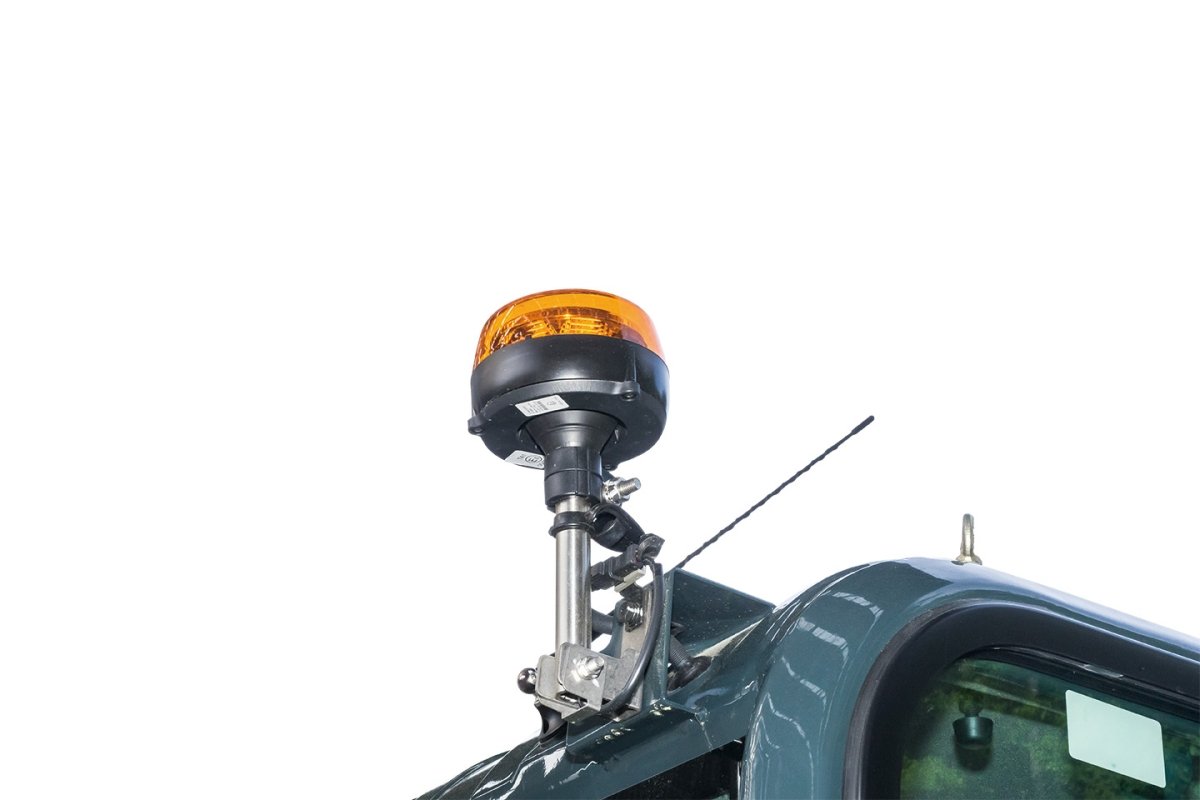

BEACON LIGHT

The HX17A can be equipped with a beacon light option.

Hyundai HX17AZ

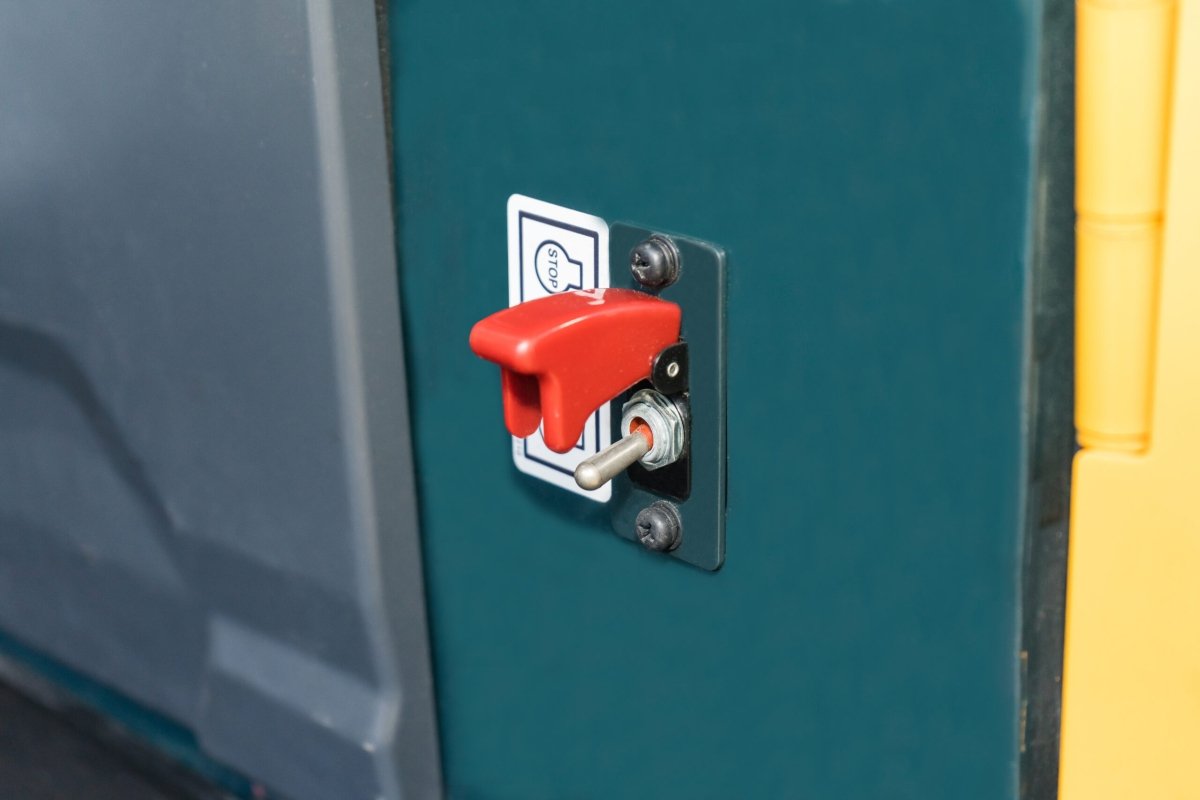

EMERGENCY STOP SWITCH

The HX17AZ includes an emergency engine stop switch to ensure the safety of the operator and those around the machine.

REINFORCED CANOPY STRUCTURE Hyundai HX17AZ

The canopy features a reinforced pillar design that complies with TOPS (Top Over Protection System) and FOG (Falling Object Guard) level 1 ISO standards.
