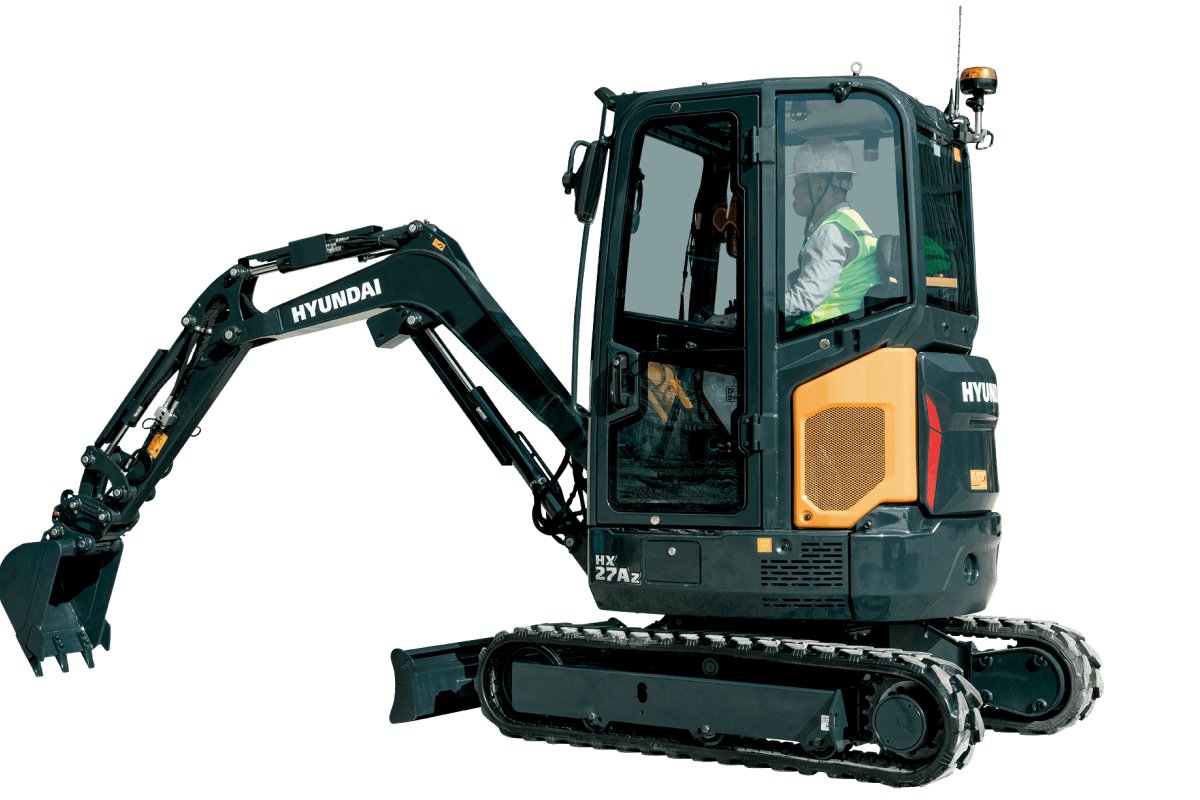

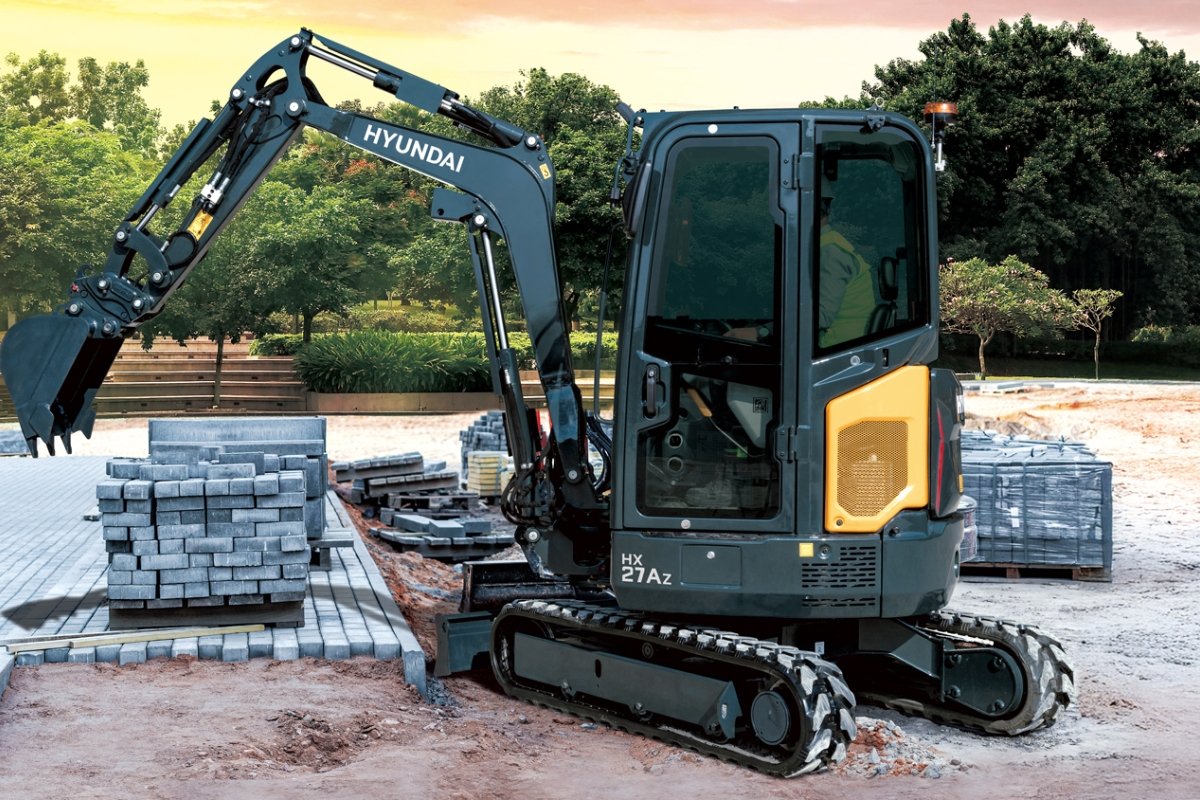

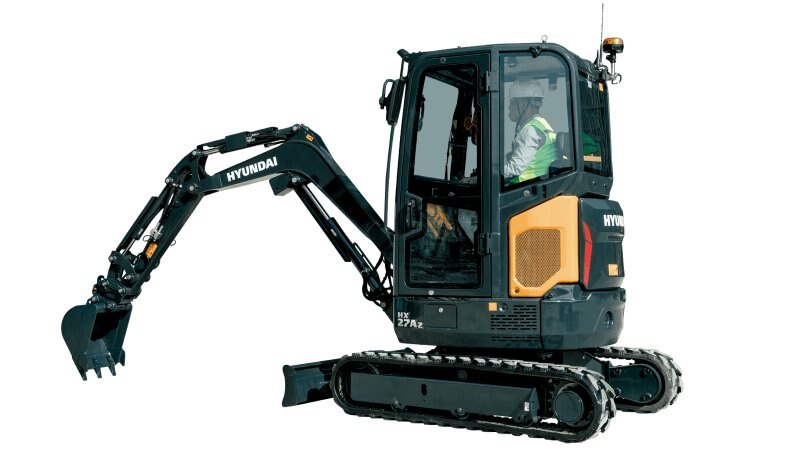

Hyundai HX27AZ

Name: Hyundai HX27AZ
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

The Hyundai HX27A Z is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power in confined spaces.

Specifications

Model

HX27AZ

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

24.4 HP @ 2,350 rpm

SWING SPEED

9.16 rpm

ENGINE MODEL

Kubota D1305

BUCKET CAPACITY

0.09 yd³

OPERATING WEIGHT

5,930 lb.

TAIL SWING RADIUS

2' 10.4"

MAX. DIGGING DEPTH

8' 10.1"

MAX. DIGGING REACH

15' 6"

ARM CROWD FORCE (ISO)

2,895 lb.

MAX TRAVEL SPEED (MPH)

2.7 mph

BUCKET BREAKOUT FORCE (ISO)

4,583 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX27A Z is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

KUBOTA TIER 4 FINAL ENGINE

The HX27AZ features Kubota D1305 diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 24.4 HP (18.2 kW).

AUXILIARY HYDRAULIC FLOW

Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.

Dozer Blade

Blade height is adjusted by maneuvering the joystick.

ZERO-TAIL SWING

The HA27AZ has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.

convenience

5-INCH FULL-COLOR LCD MONITOR

The Hyundai HX27AZ features a 5-inch full-color LCD monitor with IP68 rating, providing operators with clear and comprehensive information for efficient machine control and monitoring during operations.

HEATING SYSTEM

The HX27AZ comes equipped with an integrated heating system, providing a comfortable working environment inside the cabin.

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

COWL DESIGN IMPROVEMENT

Cowling on the HX-A series has been completely redesigned so all panels are openable.

safety

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

LED LIGHT

The HX-A series is equipped standard with an LED boom light.

EXCELLENT VISIBILITY

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

literature

Name	Link
FAMILY BROCHURE	Download
PRODUCT SPECS	Download

Documents

hx27az-spec-sheet.pdf
