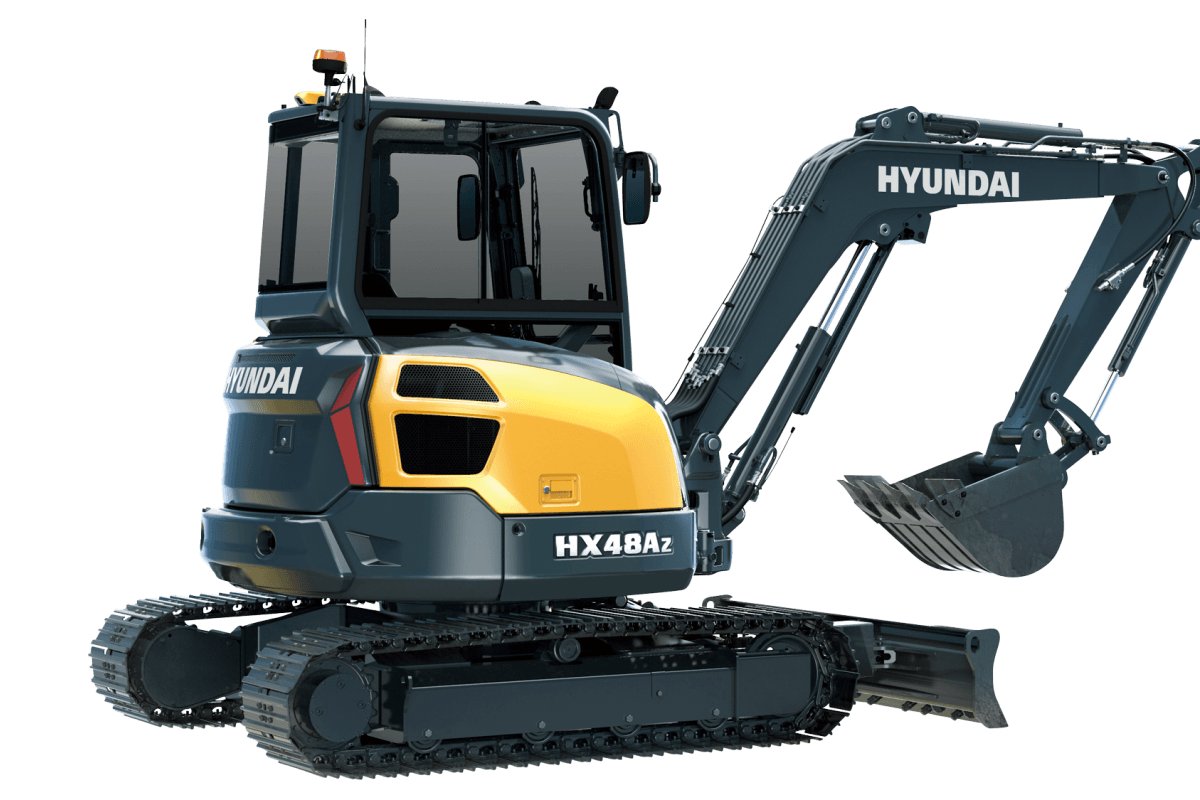

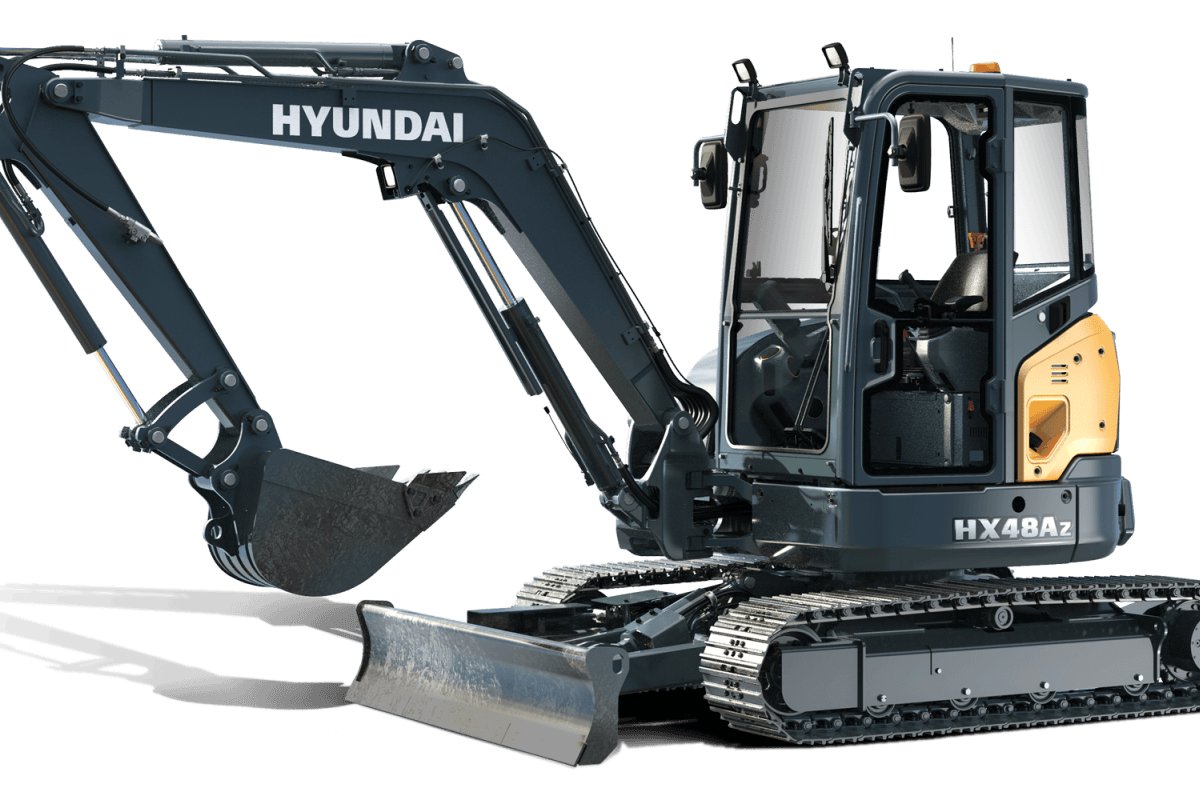

Hyundai HX48AZ

  • Hyundai HX48AZ
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview
The Hyundai HX48AZ is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power in confined spaces. The HX48AZ  received the prestigious 2022 Red Dot Design Award, recognizing outstanding industrial designs worldwide, along with the HX35AZ and HX40A. The excavators were honored, in part, for their distinctive “tiger eye” rear light design, showcasing a perfect blend of form and function.
Specifications
Model
HX48AZ
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
37.7 hp @ 2,200 rpm
SWING SPEED
10.1 rpm
ENGINE MODEL
Yanmar 4TNV88C
BUCKET CAPACITY
0.2 yd³
OPERATING WEIGHT
11,199 lb.
TAIL SWING RADIUS
3' 6.5"
MAX. DIGGING DEPTH
11' 10.5"
MAX. DIGGING REACH
20' 0.6"
ARM CROWD FORCE (ISO)
4,998 lb.
MAX TRAVEL SPEED (MPH)
2.7 mph
BUCKET BREAKOUT FORCE (ISO)
7,341 lb.
reliability and durability

Hyundai HX48AZ RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HX48AZ is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai HX48AZ DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
performance

Hyundai HX48AZ

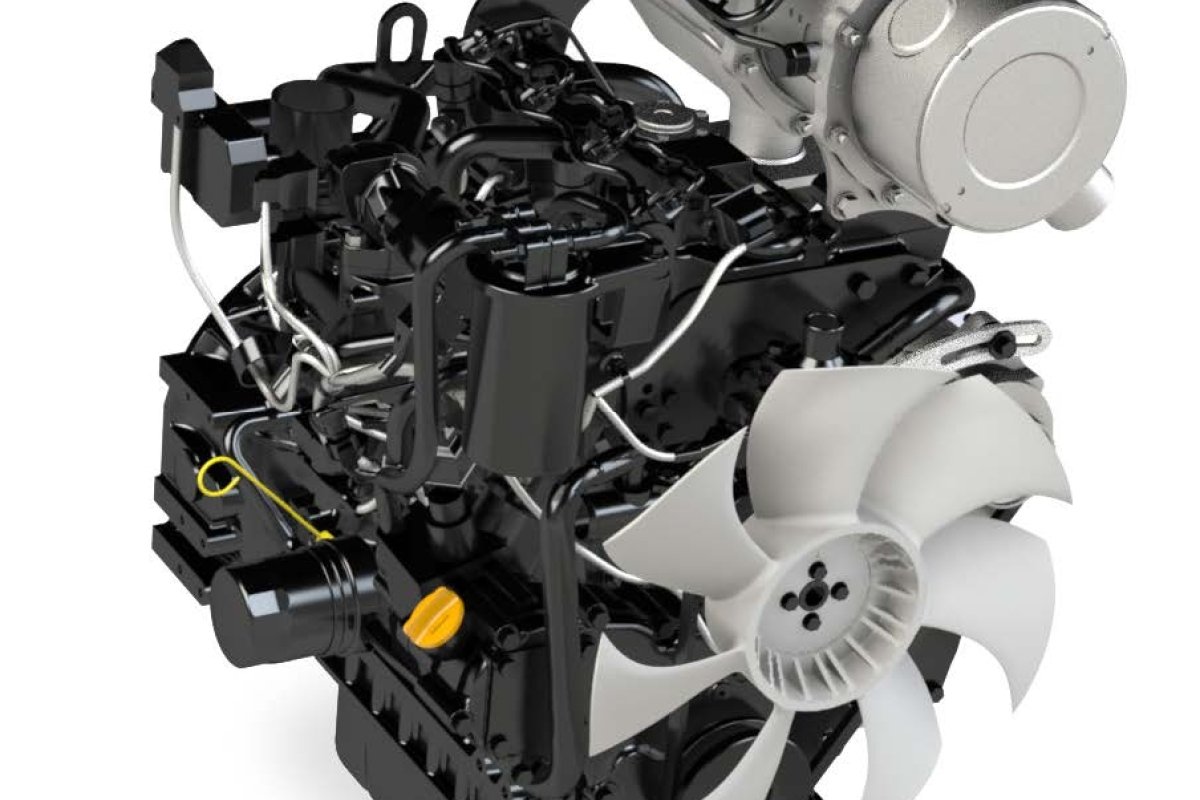

KUBOTA TIER 4 FINAL ENGINE

The HX48AZ features Yanmar 4TNV88C diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 37.7 HP (28.1 kW).

Hyundai HX48AZ

AUXILIARY HYDRAULIC FLOW

Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.

Hyundai HX48AZ

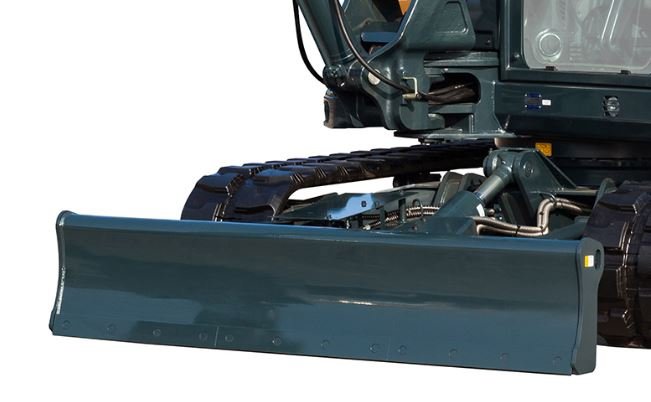

ANGLE DOZER BLADE FLOATING

Blade height is automatically adjusted by turning on dozer blade float function.

Hyundai HX48AZ

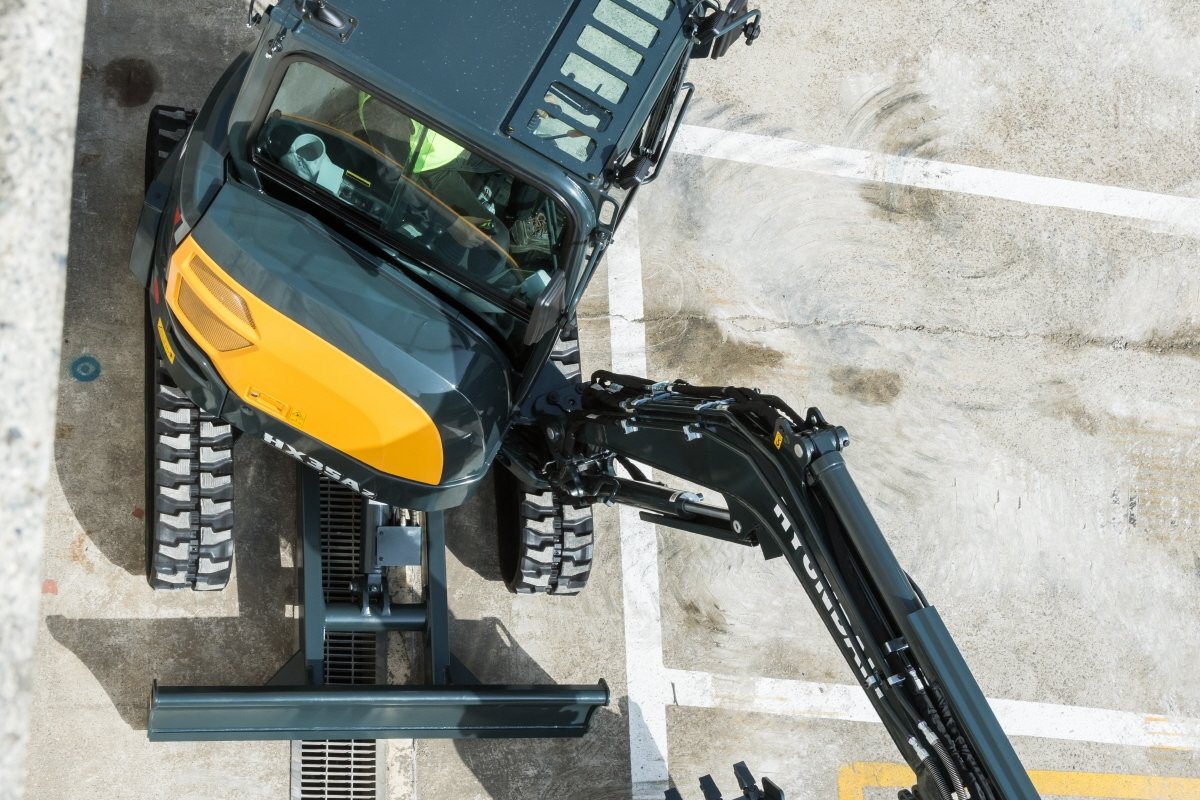

ZERO-TAIL SWING

The HA48AZ has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.
convenience

Hyundai HX48AZ

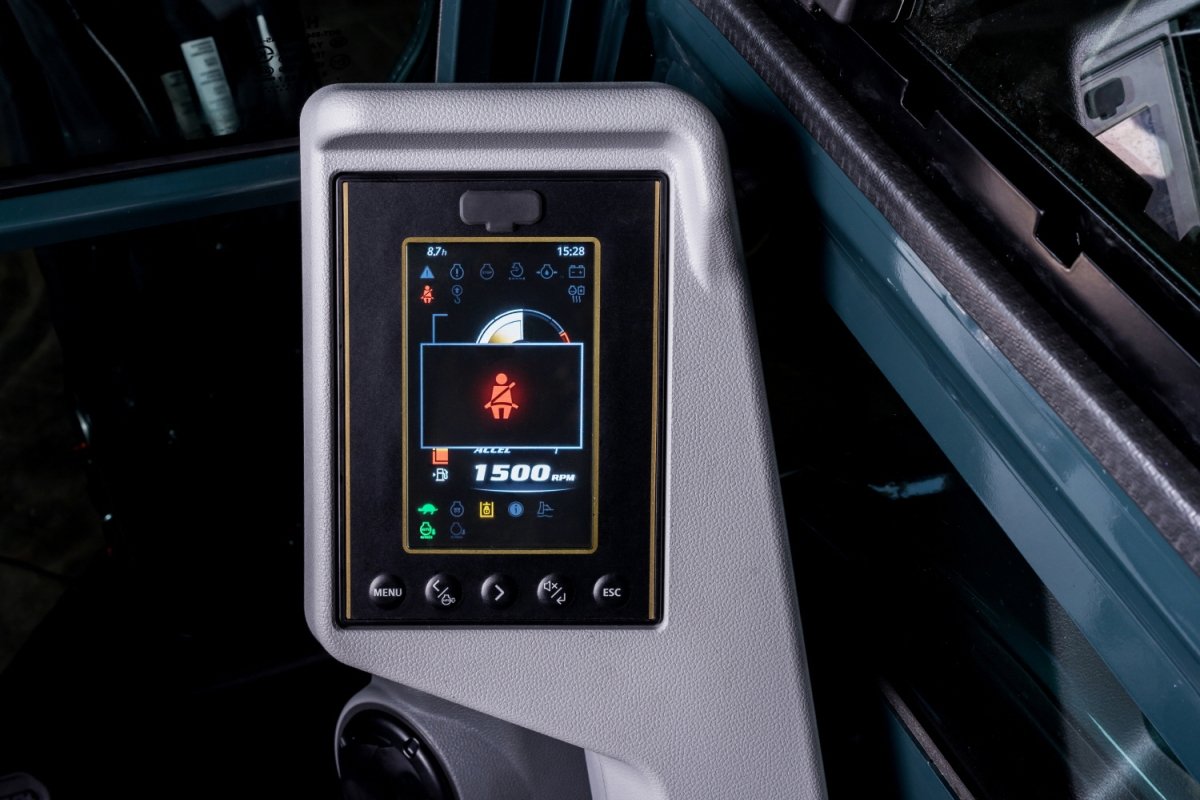

5-INCH FULL-COLOR LCD MONITOR

The Hyundai HX48AZ features a 5-inch full-color LCD monitor with IP68 rating, providing operators with clear and comprehensive information for efficient machine control and monitoring during operations.

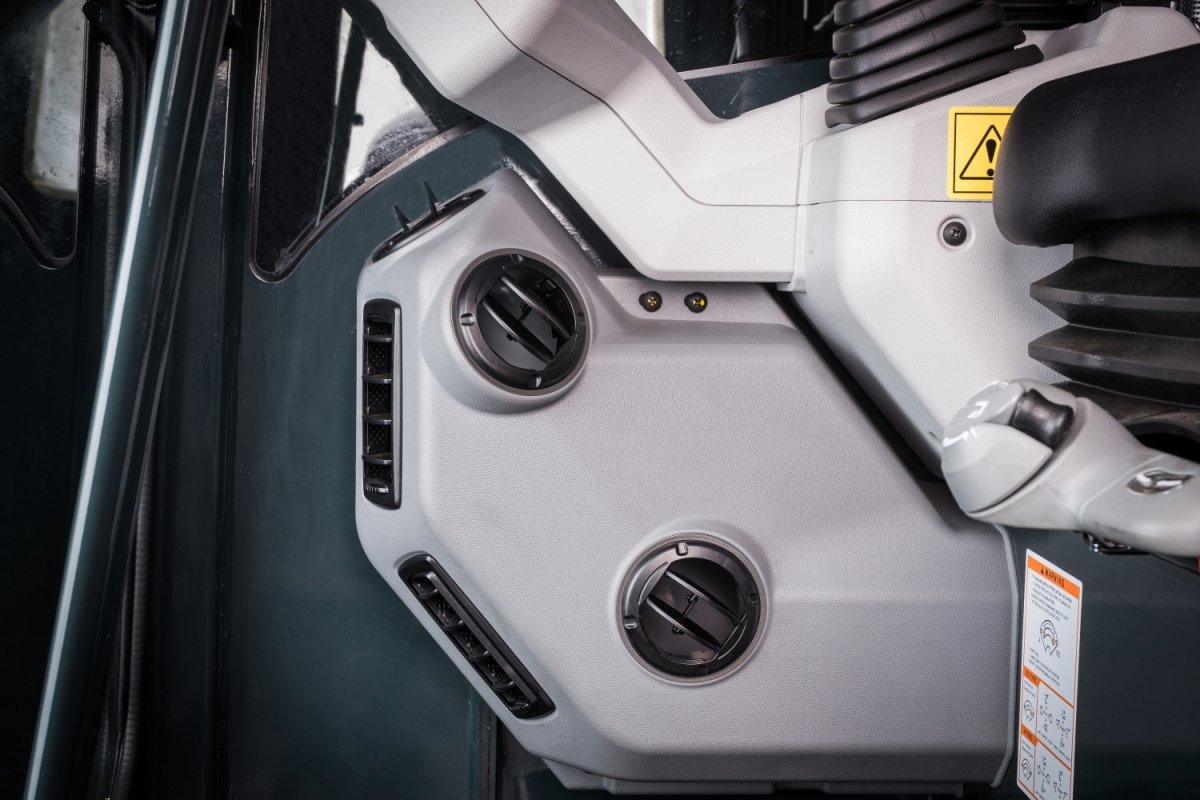

HEATING AND A/C SYSTEM Hyundai HX48AZ

The HX-A mini excavators comes equipped with an integrated heating & air-conditioning system, providing a comfortable working environment inside the cabin in all climate conditions.

Hyundai HX48AZ

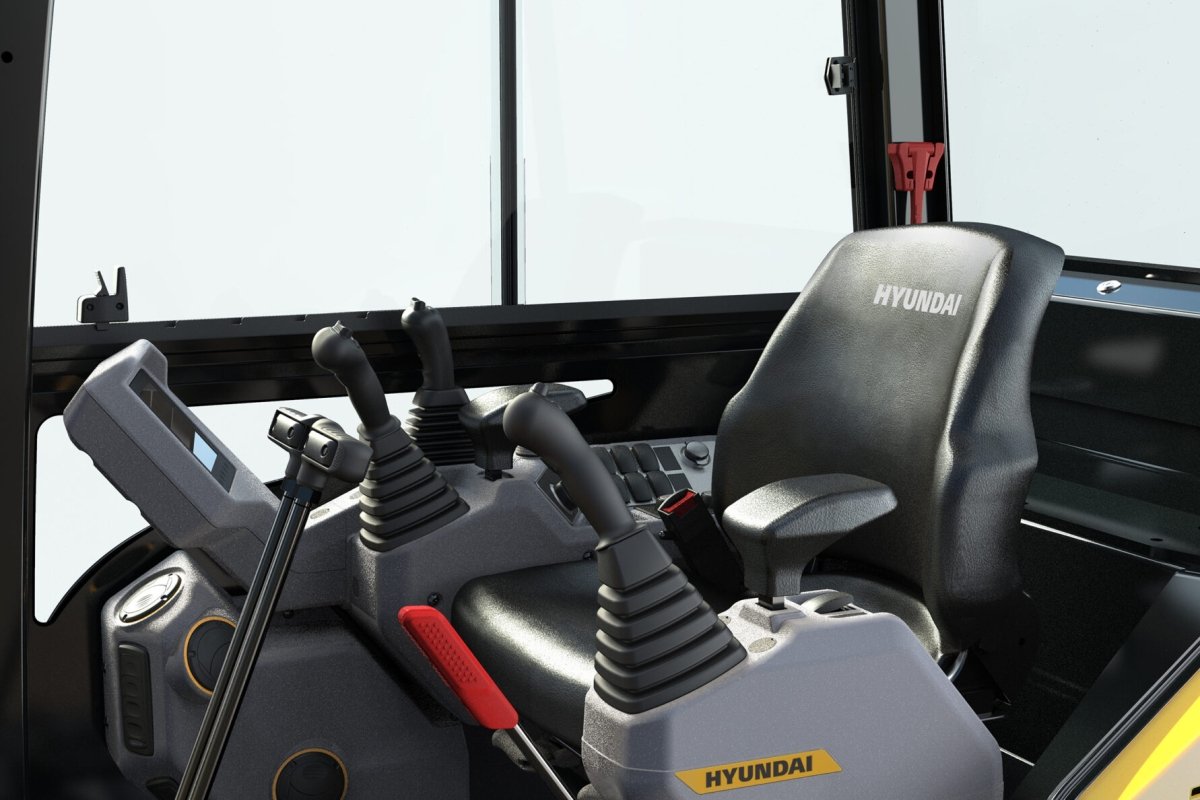

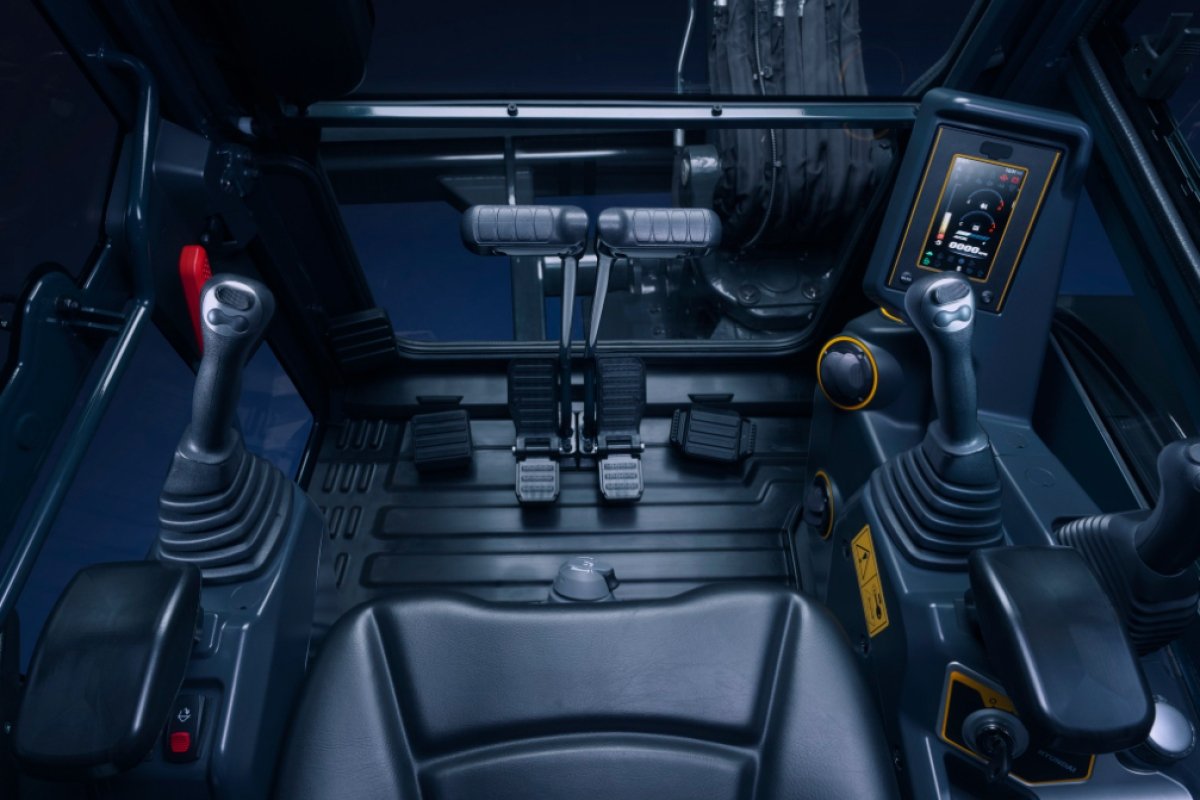

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade. Easy-to-access control switches on the left side console improve operating comfort and productivity.

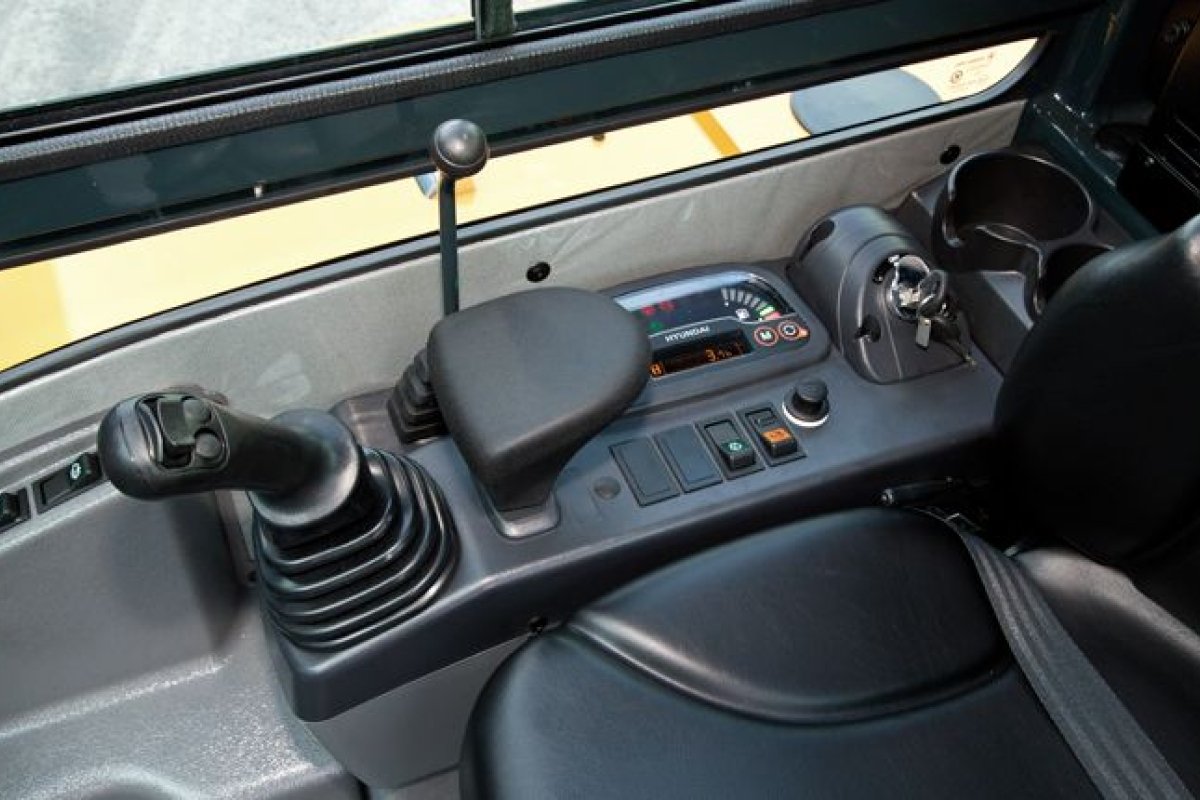

CAB ENTRY Hyundai HX48AZ

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
serviceability

Hyundai HX48AZ

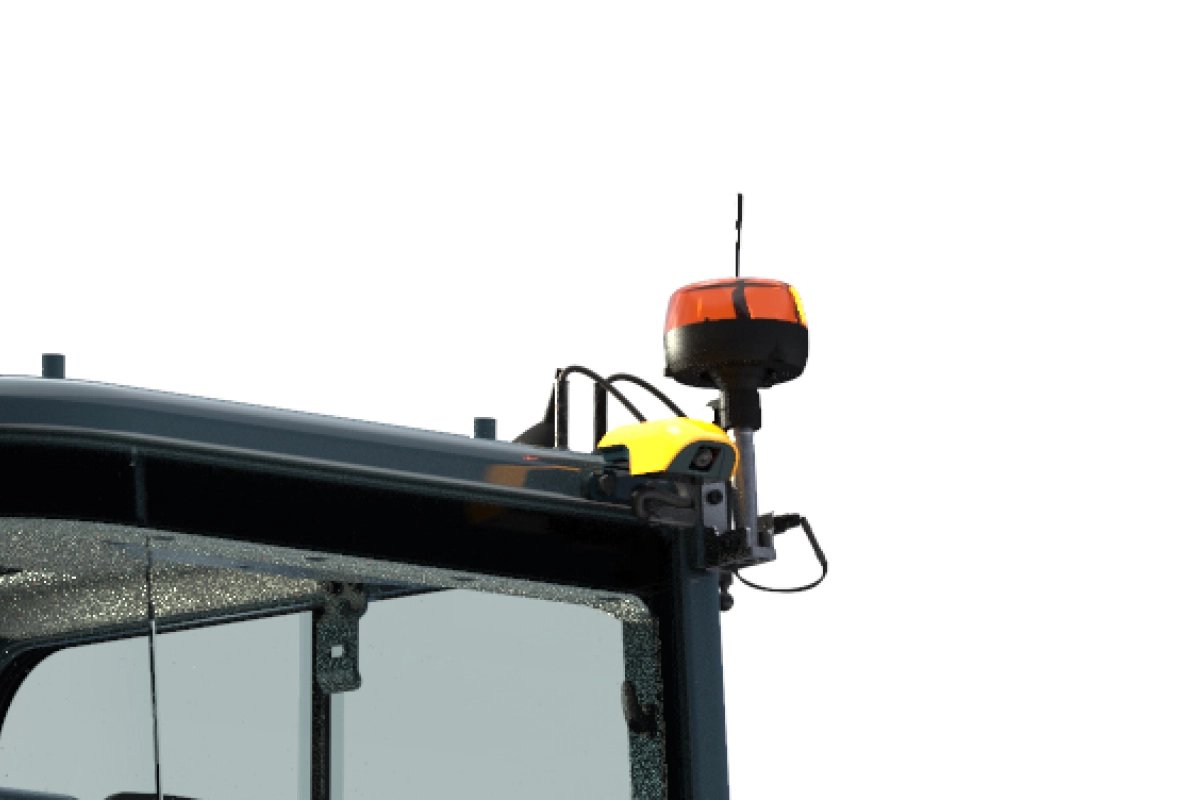

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

Hyundai HX48AZ

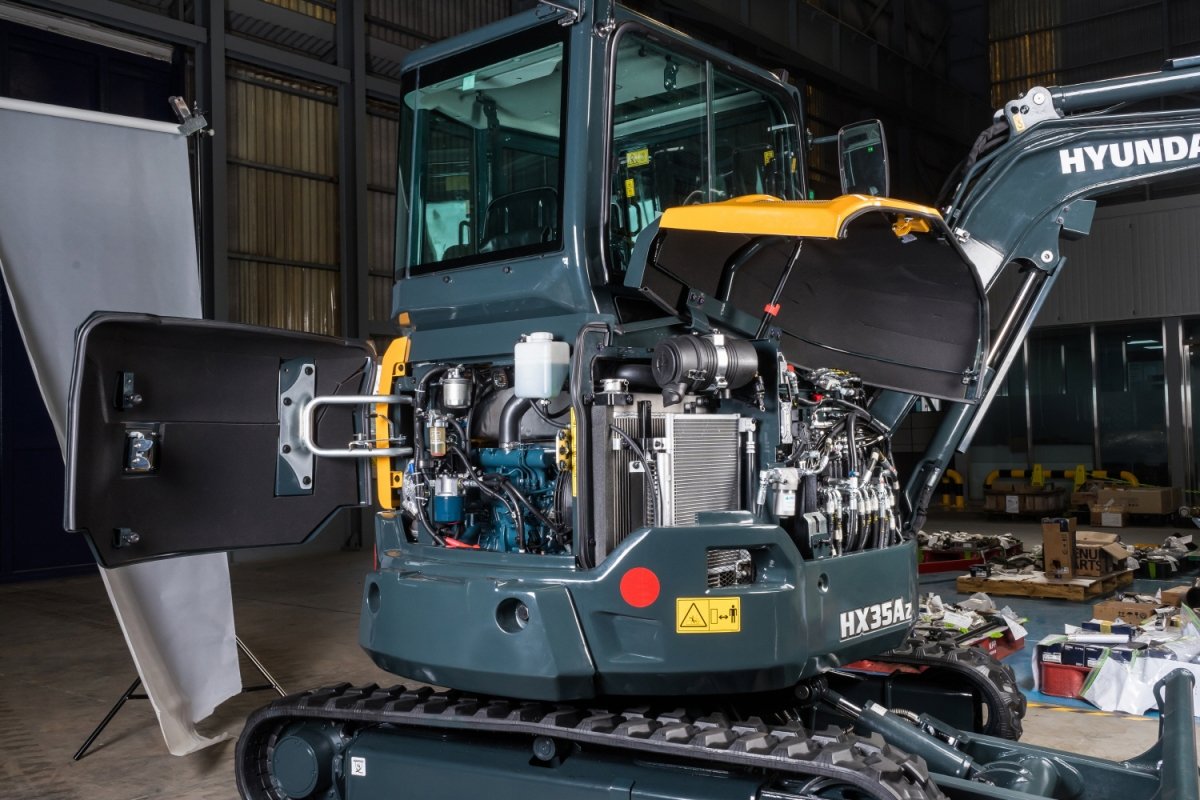

COWL DESIGN IMPROVEMENT

Cowling on the HX-A series has been completely redesigned so all panels are openable.
safety

Hyundai HX48AZ

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

Hyundai HX48AZ

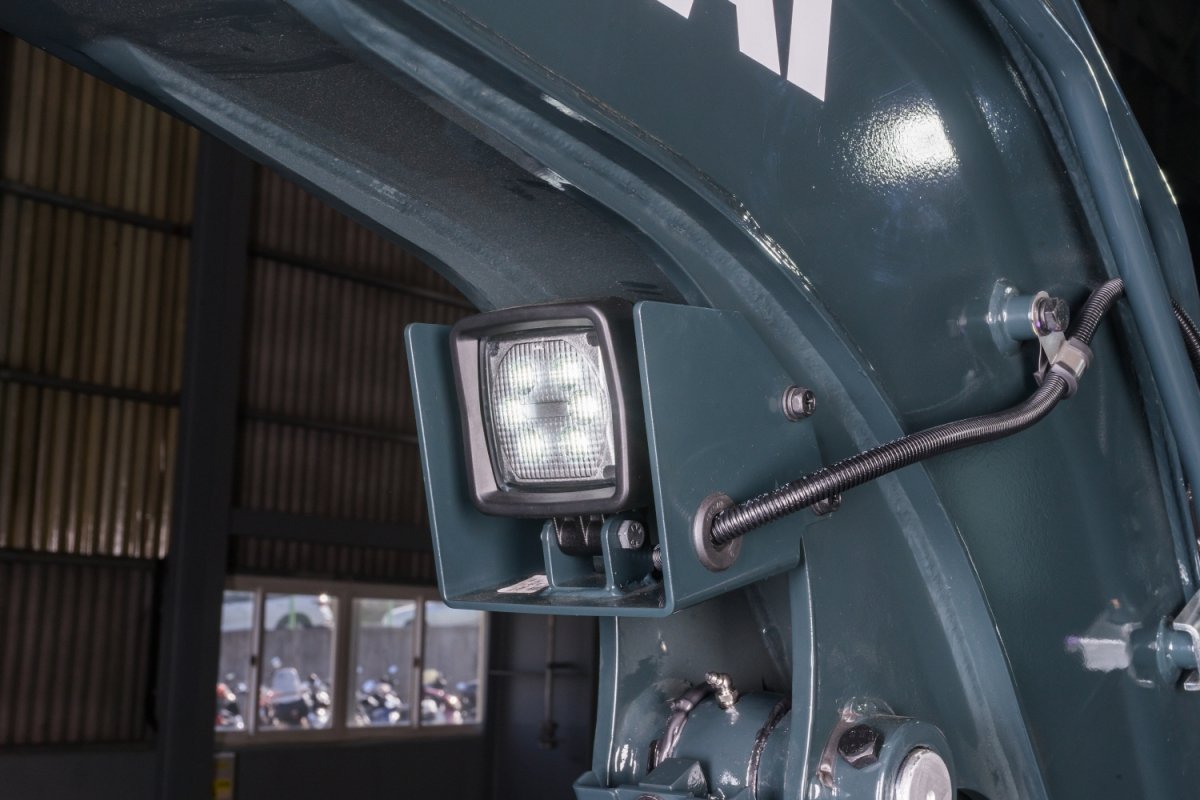

LED LIGHT

The HX-A series is equipped standard with an LED boom light.

Hyundai HX48AZ

EXCELLENT VISIBILITY

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

Optional Rearview Camera Hyundai HX48AZ

The HX48A comes with the option of adding a rearview camera for increased safety and visibility on the jobsite.
