ID # 39044376

Hyundai HX55ACR

Name: Hyundai HX55ACR
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

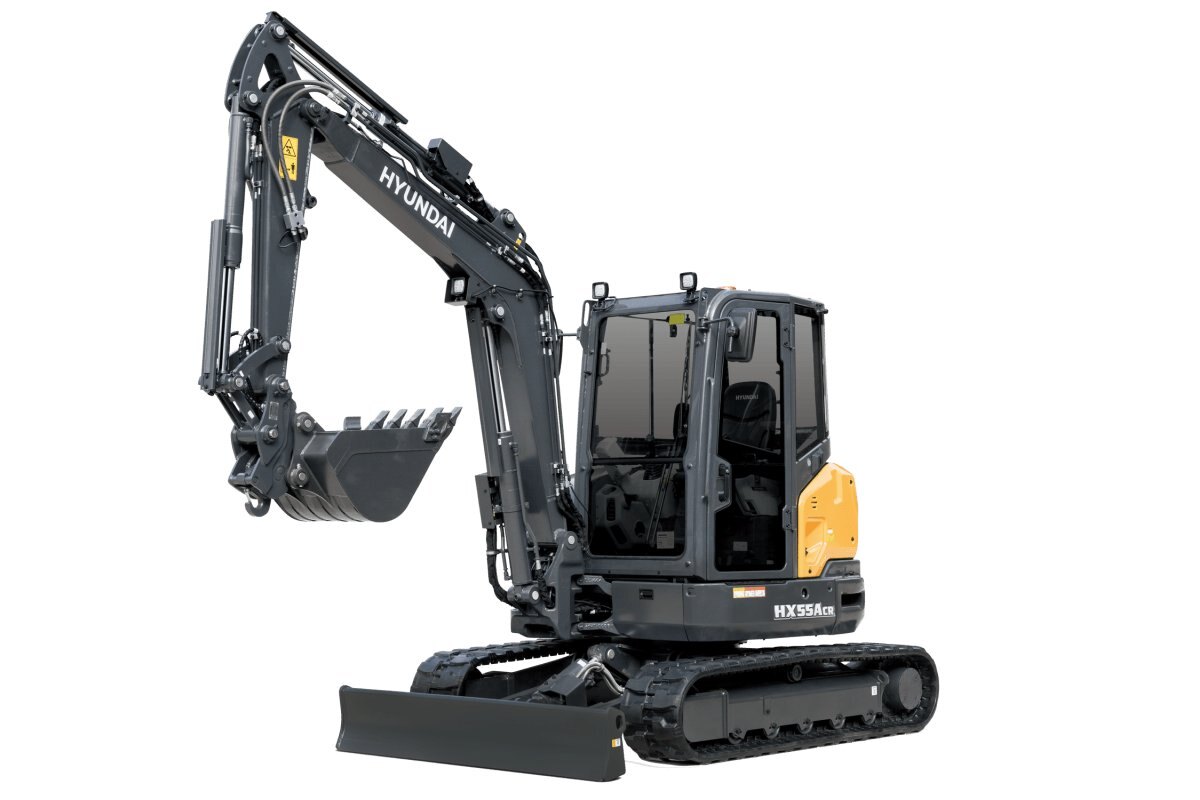

The Hyundai HX55ACR is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power.

Specifications

Model

HX55ACR

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

45.0 hp @ 2,400 rpm

SWING SPEED

10 rpm

ENGINE MODEL

Yanmar 4TNV86CT

BUCKET CAPACITY

0.2 yd³

OPERATING WEIGHT

12,604 lb.

TAIL SWING RADIUS

3' 10.3"

MAX. DIGGING DEPTH

12' 8.4"

MAX. DIGGING REACH

20' 10"

ARM CROWD FORCE (ISO)

5,088 lb.

MAX TRAVEL SPEED (MPH)

2.9 mph

BUCKET BREAKOUT FORCE (ISO)

8,353 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX55ACR is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

TIER 4 FINAL ENGINE

The HX55ACR features diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 45 HP (33.6 kW).

AUXILIARY HYDRAULIC FLOW

Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.

ANGLE DOZER BLADE FLOATING

Blade height is automatically adjusted by turning on dozer blade float function.

convenience

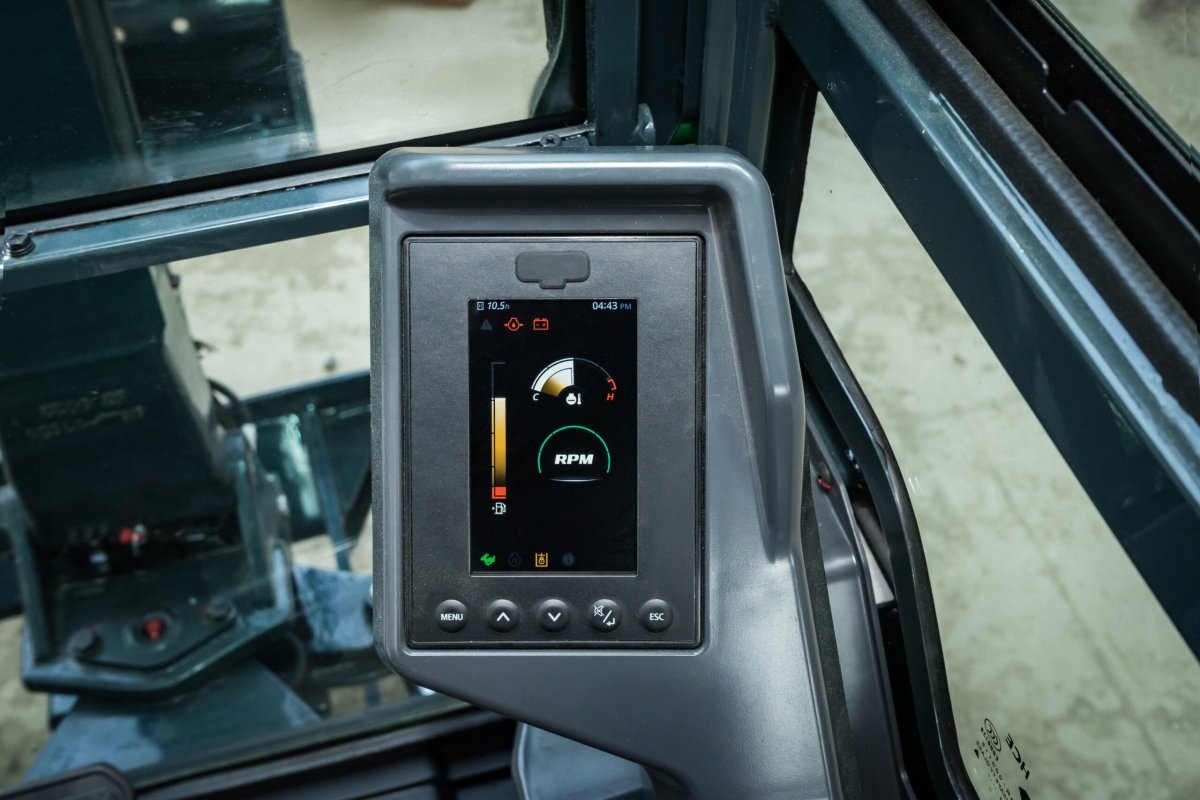

5-INCH FULL-COLOR LCD MONITOR

The advanced large 7" touch screen LCD cluster monitor with flow rate control allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed.

SUSPENSION SEAT

The HX55ACR operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.

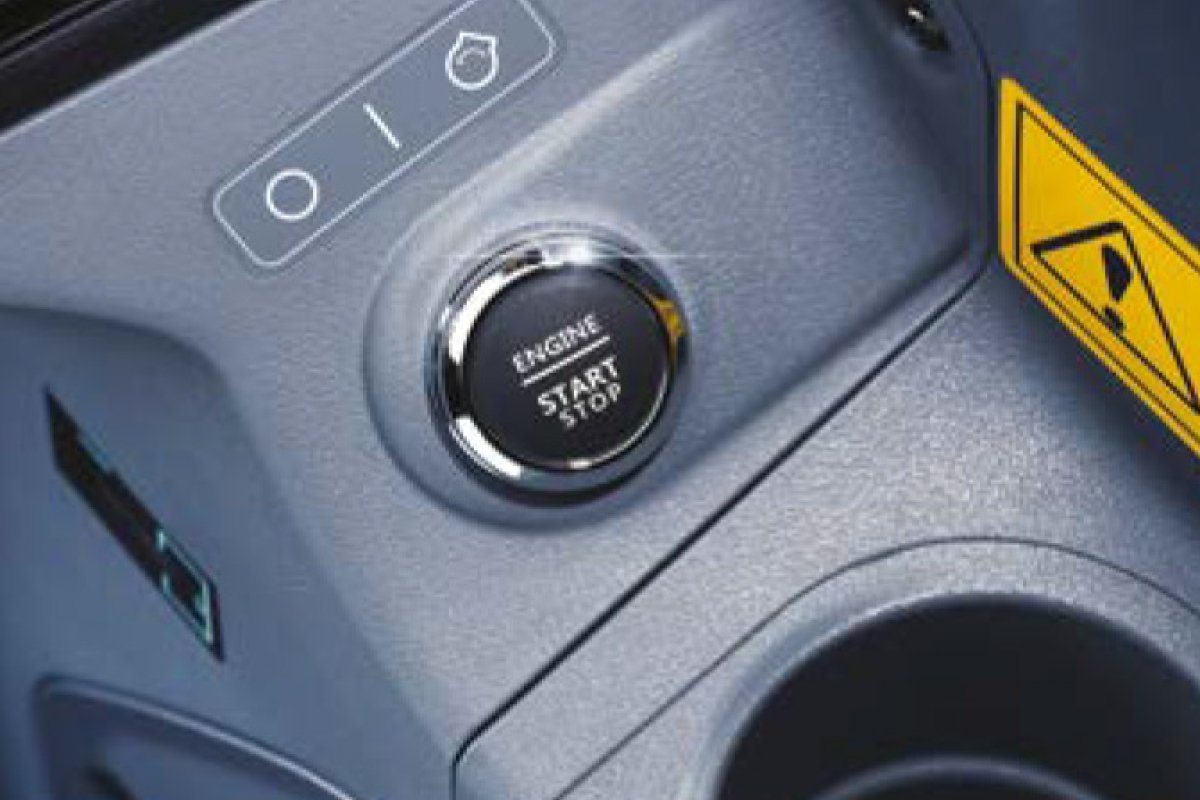

OPTIONAL PUSH BUTTON START

An innovative machine requires convenient modern functions like the optional button-type ignition key with start & stop function, plus added USB port.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

Fully Accessible MCV & Engine

The HX55ACR cowl is a full open type, which allows for easy access to both the MCV and engine. In addition, the layout of the MCV and engine has been optimized for better serviceability.

Optimal Placement of Filters

Large engine hood and easy ground level access to daily checks and filter.

safety

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.
