ID # 39044377

Hyundai HX60A

  • Hyundai HX60A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview

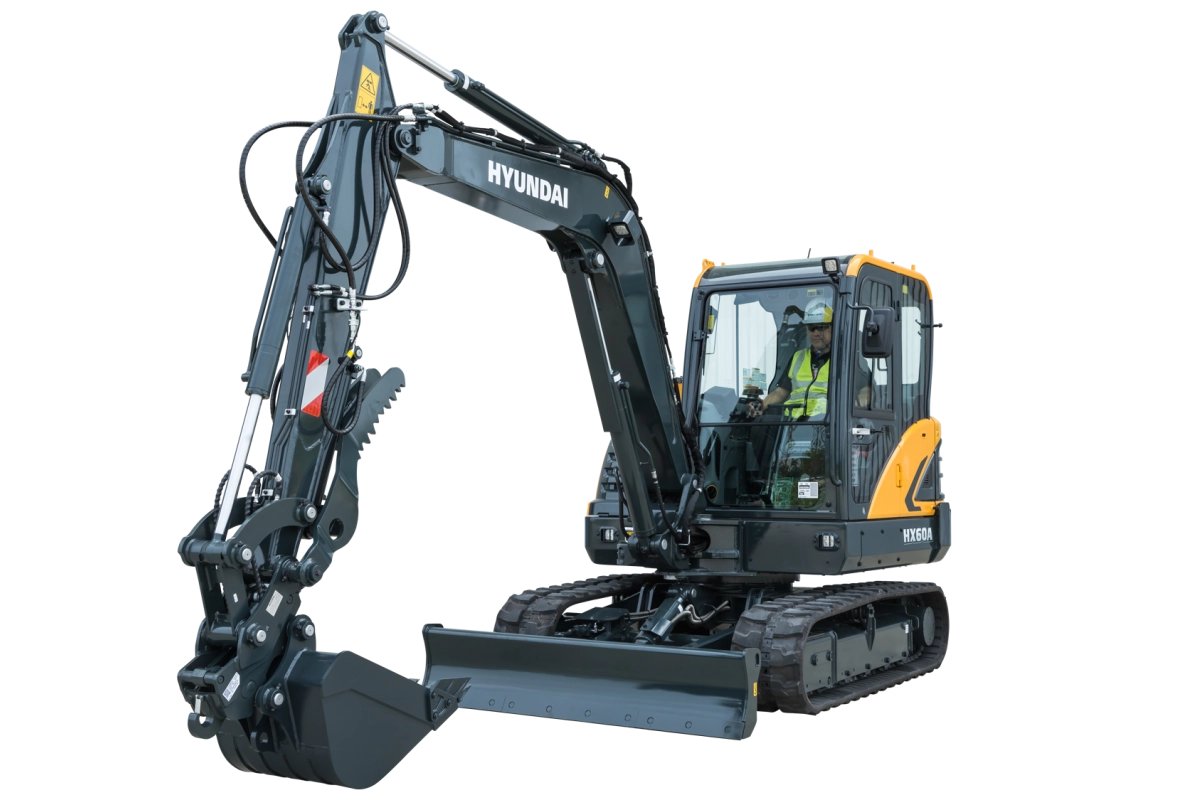

The Hyundai HX60A is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power.
Specifications
Model
HX60A
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
65.9 hp @ 2,400 rpm
SWING SPEED
9.4 rpm
ENGINE MODEL
Hyundai / DM02VB
BUCKET CAPACITY
0.24 yd³
OPERATING WEIGHT
13,404 lb.
TAIL SWING RADIUS
5' 5"
MAX. DIGGING DEPTH
12' 4.4"
MAX. DIGGING REACH
20' 2.1"
ARM CROWD FORCE (ISO)
6,363 lb.
MAX TRAVEL SPEED (MPH)
2.6 mph
BUCKET BREAKOUT FORCE (ISO)
9,462 lb.
reliability and durability

Hyundai HX60A RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HX60A is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai HX60A DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
performance

Hyundai HX60A

TIER 4 FINAL ENGINE

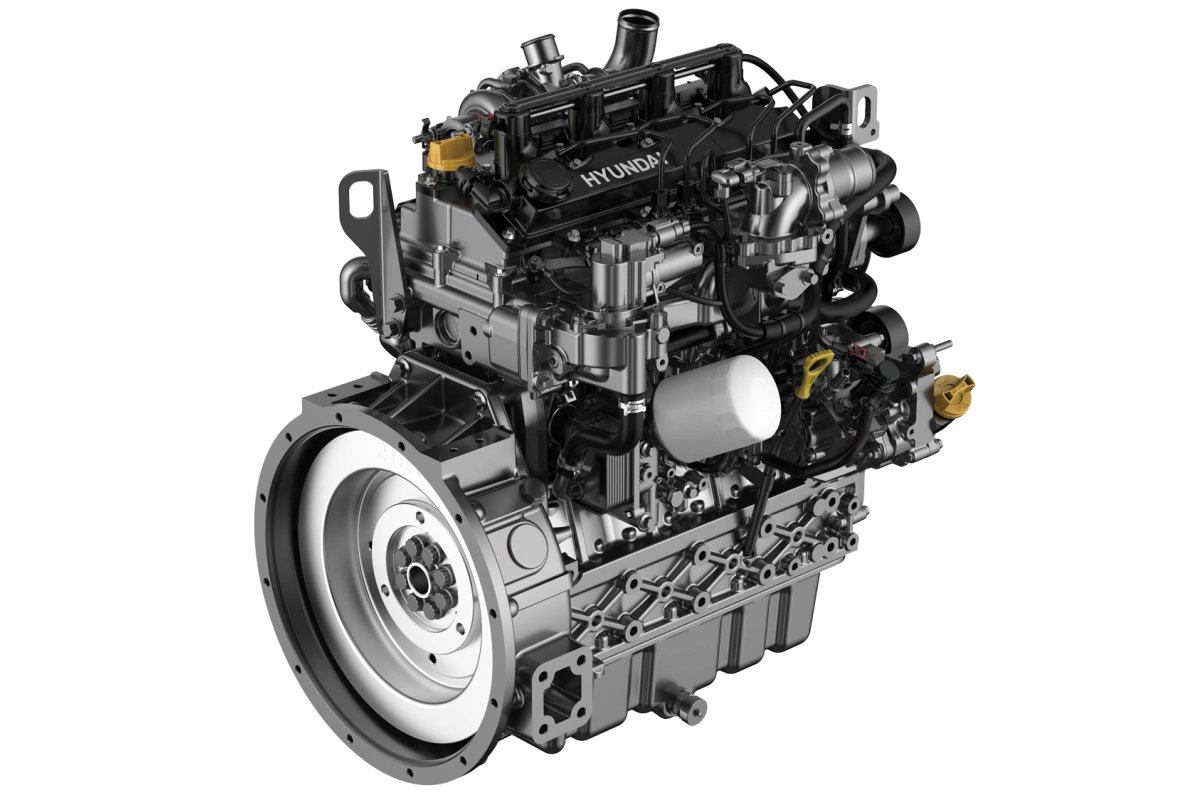

The HX60A features a diesel engine with a vertical, water-cooled 4-cycle direct injector. It has a net power rating of 65 HP (48.5 kW).

Hyundai HX60A

AUXILIARY HYDRAULIC FLOW

Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.

Hyundai HX60A

ANGLE DOZER BLADE FLOATING

Blade height is automatically adjusted by turning on dozer blade float function.
convenience

Hyundai HX60A

MONITOR

The advanced large 7" touch screen LCD cluster monitor with flow rate control allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed.

Hyundai HX60A SUSPENSION SEAT

The HX60A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.

CAB ENTRY Hyundai HX60A

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
serviceability

Hyundai HX60A

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

Hyundai HX60A

Fully Accessible MCV & Engine

The HX55ACR cowl is a full open type, which allows for easy access to both the MCV and engine. In addition, the layout of the MCV and engine has been optimized for better serviceability.

Hyundai HX60A Optimal Placement of Filters

Large engine hood and easy ground level access to daily checks and filter.
safety

Hyundai HX60A

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

Hyundai HX60A

LED LIGHTING

For added safety, LED lamps are used in all the work lights. The boom work lights are recessed to help prevent damage when working.

Optional Rearview Camera Hyundai HX60A

The HX60A is equipped with a rearview camera as standard with the option of a side-view camera.
literature
Name Link
FAMILY BROCHURE Download
PRODUCT SPECS Download
