ID # 39044378

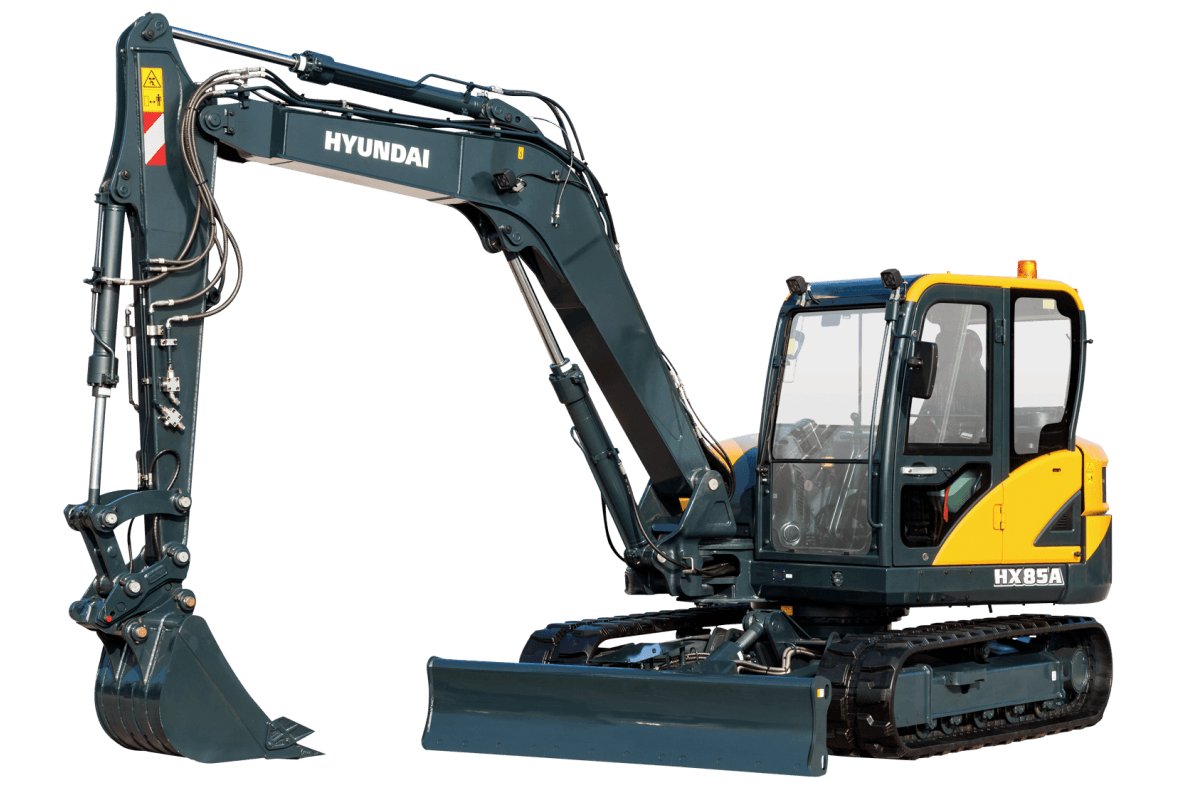

Hyundai HX85A

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview
The Hyundai HX85A model is the company’s first compact excavator included among the A-Series machines, and the first to be designated an HX model number. The largest of Hyundai’s compact excavator models, the HX85A fills a transitional spot in its overall excavator product line between the compact and full-sized models. It features an engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of this compact machine, along with its ability to work productively in confined spaces.
Specifications
Model
HX85A
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
65.9 hp @ 2,400 rpm
SWING SPEED
9.4 rpm
ENGINE MODEL
Hyundai / DM02VB
BUCKET CAPACITY
0.24 yd³
OPERATING WEIGHT
13,404 lb.
TAIL SWING RADIUS
5' 5"
MAX. DIGGING DEPTH
12' 4.4"
MAX. DIGGING REACH
20' 2.1"
ARM CROWD FORCE (ISO)
6,363 lb.
MAX TRAVEL SPEED (MPH)
2.6 mph
BUCKET BREAKOUT FORCE (ISO)
9,462 lb.
reliability and durability

Hyundai HX85A RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HX85A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

Hyundai HX85A DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
performance

Hyundai HX85A

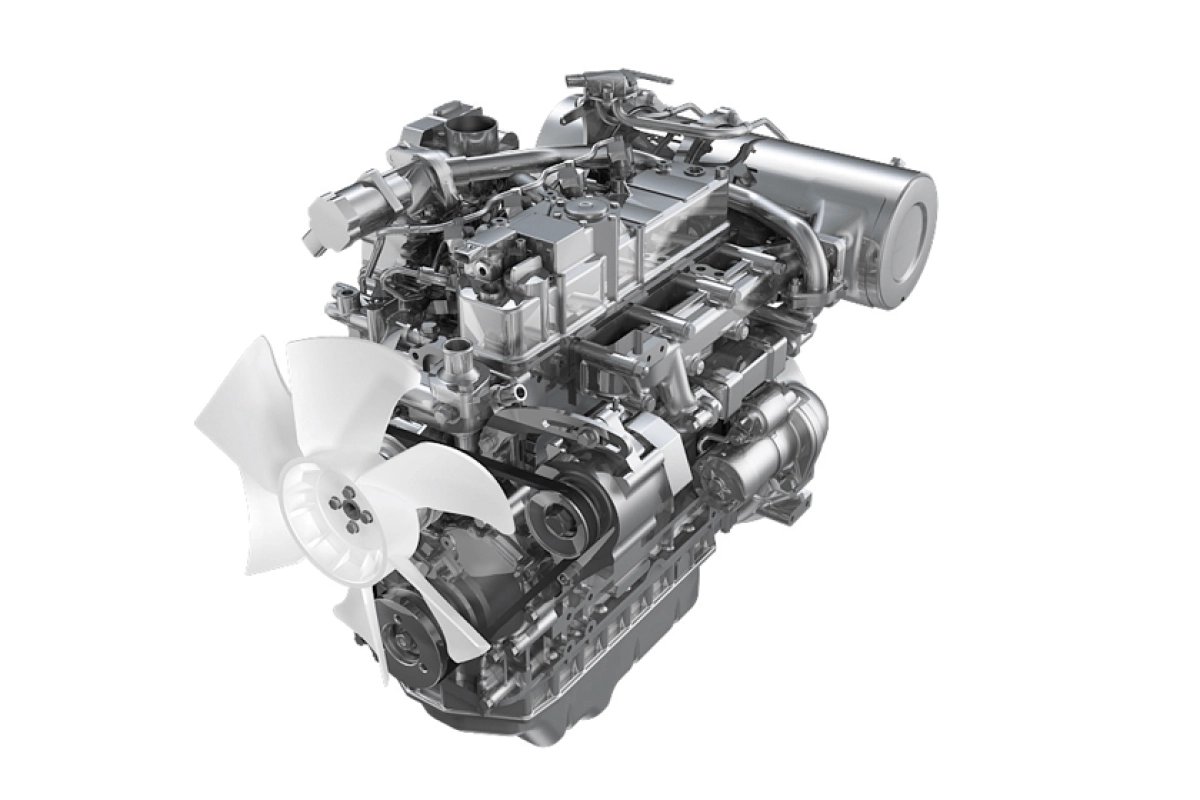

TIER 4 FINAL ENGINE

YANMAR 4TNV98C-PHYB Water cooled, 4 cycle diesel, 4 cylinders in line, direct injection, low emission engine with 65.1 HP (48.5 kW) at 2,400 rpm delivers more power and peak torque for a smooth operator experience. Maintenance has been simplified while offering an auto-regeneration feature that keeps the engine EPA certified, particulate matter clean, and the machine up and running. Features like this offer HX85A owners reduced operating costs through better fuel economy, better performance, and longer service intervals.

Hyundai HX85A

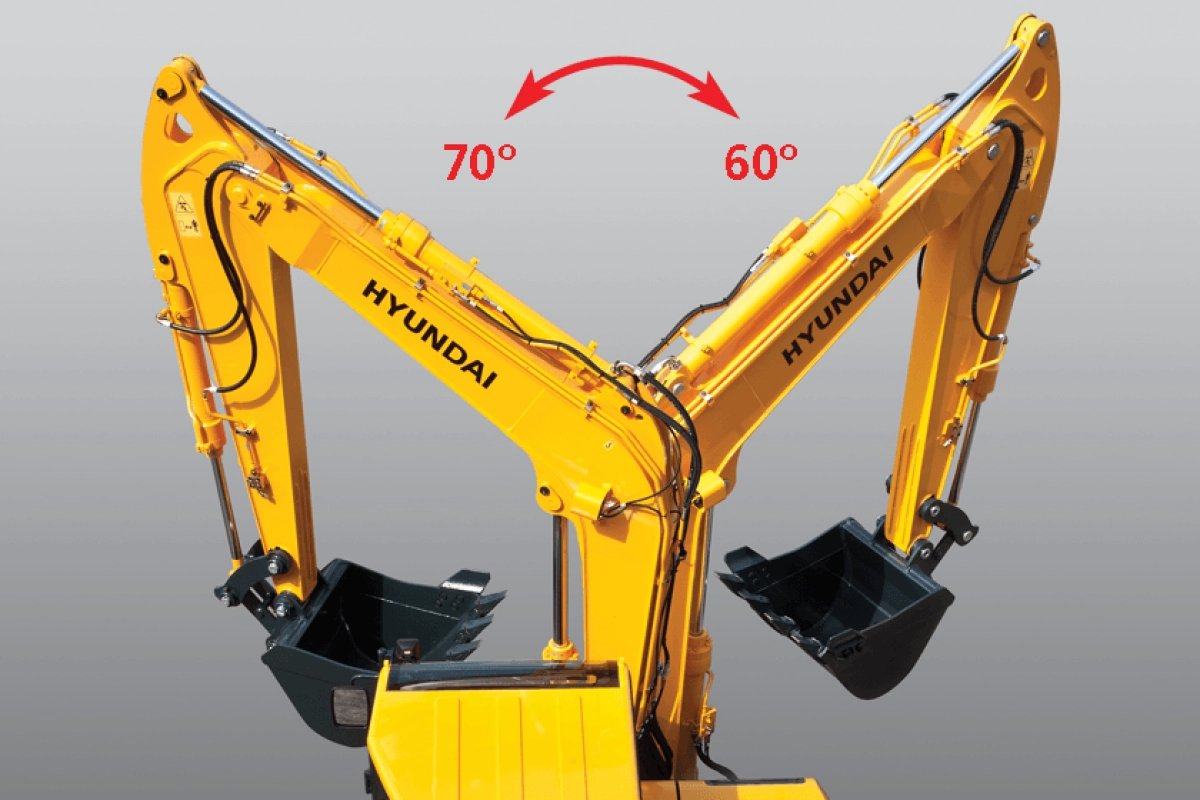

Boom Swing

The HX85A boom swing function is designed for efficient work in congested residential and urban areas. The boom can be offset left or right within an operating range. Plus, increased swing torque provides enhanced operating capability on the slope.

Hyundai HX85A

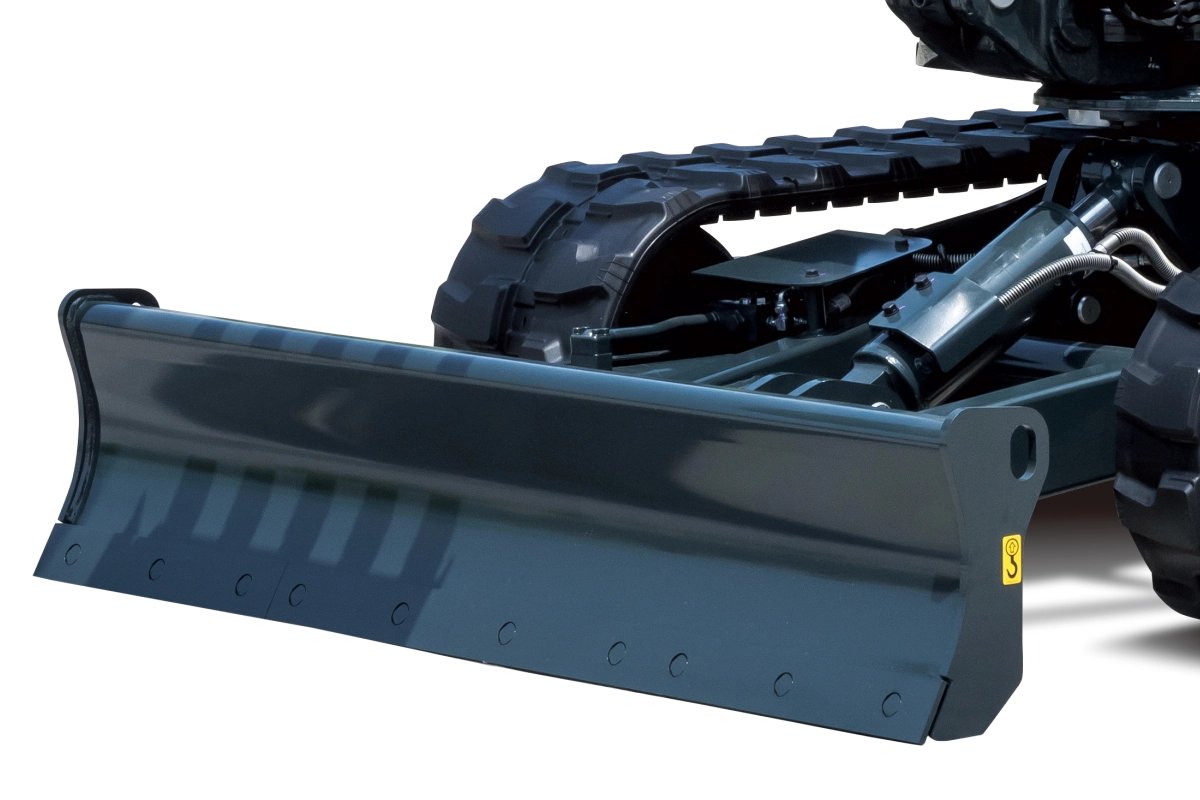

DOZER BLADE

The HX85A excavator features as standard equipment a large angled dozer blade that provides added versatility, efficiency, and stability. An optional 4-way angle dozer blade that moves up, down, left, and right is also available.
convenience

Hyundai HX85A

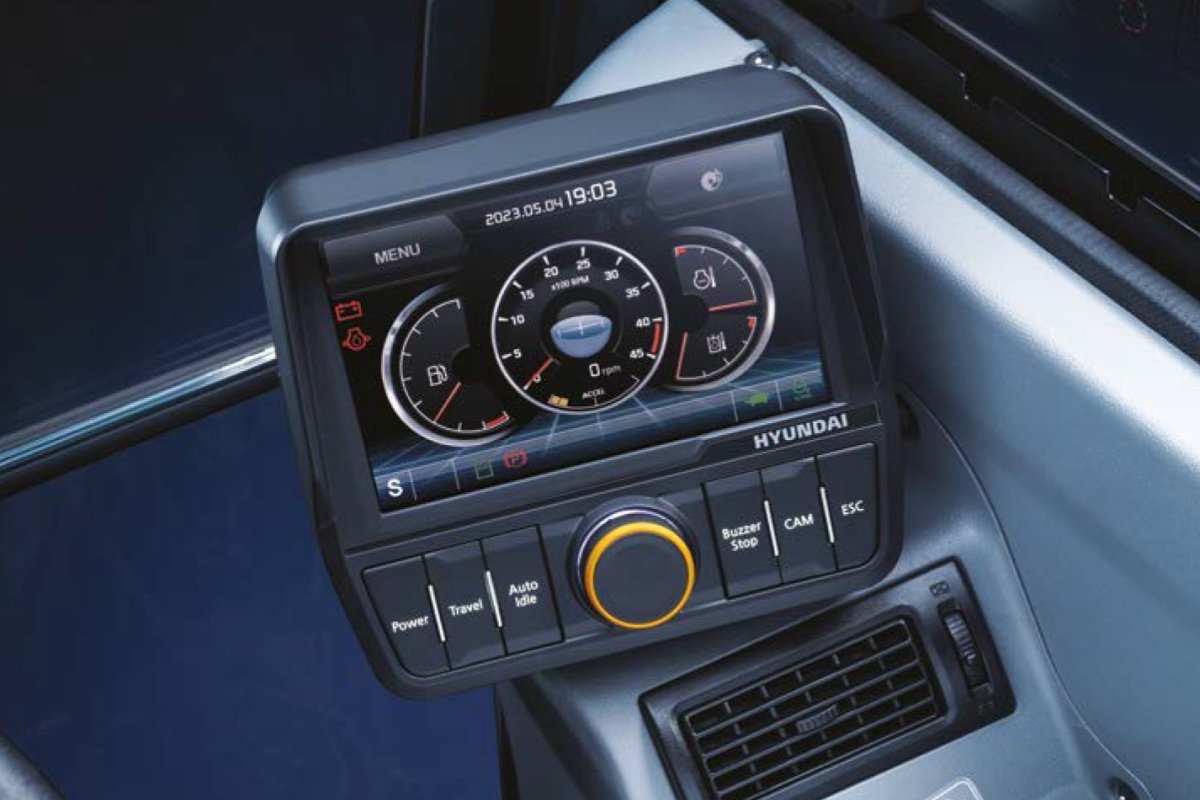

MONITOR

The advanced large 7" touch screen LCD cluster monitor with flow rate control allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed.

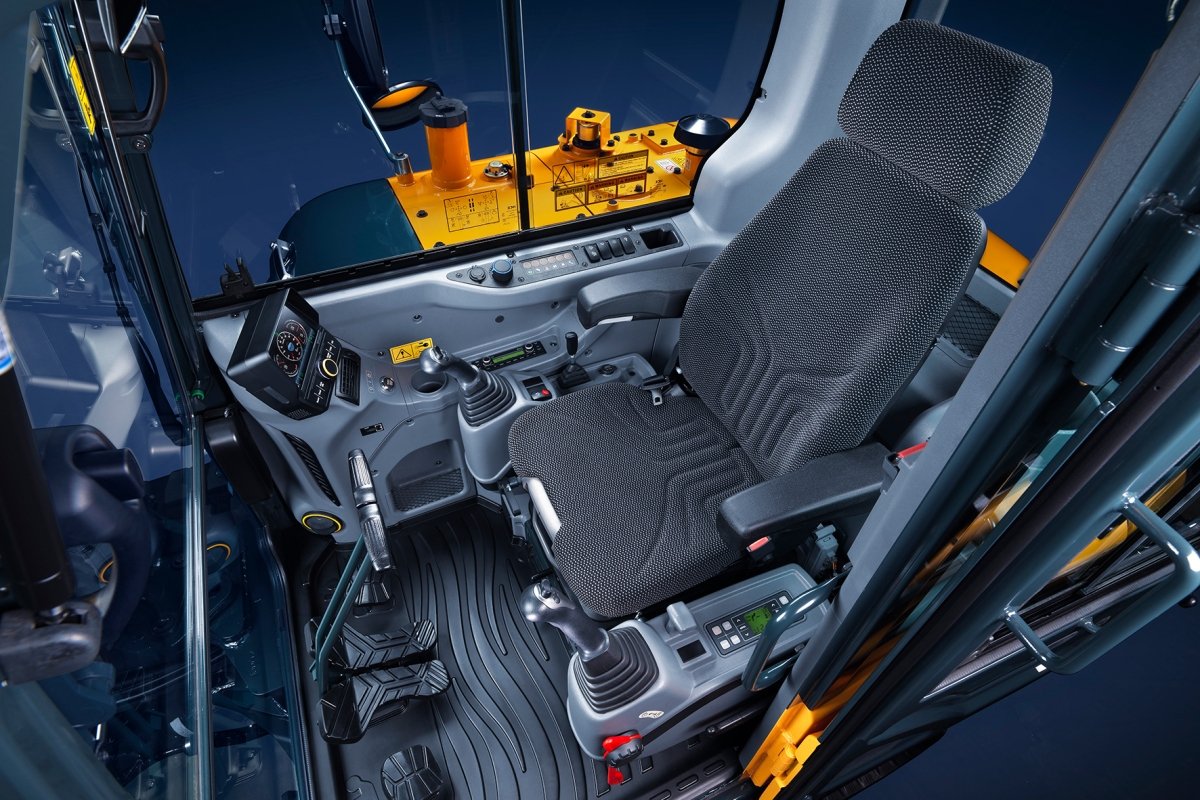

Hyundai HX85A SUSPENSION SEAT

The HX60A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.

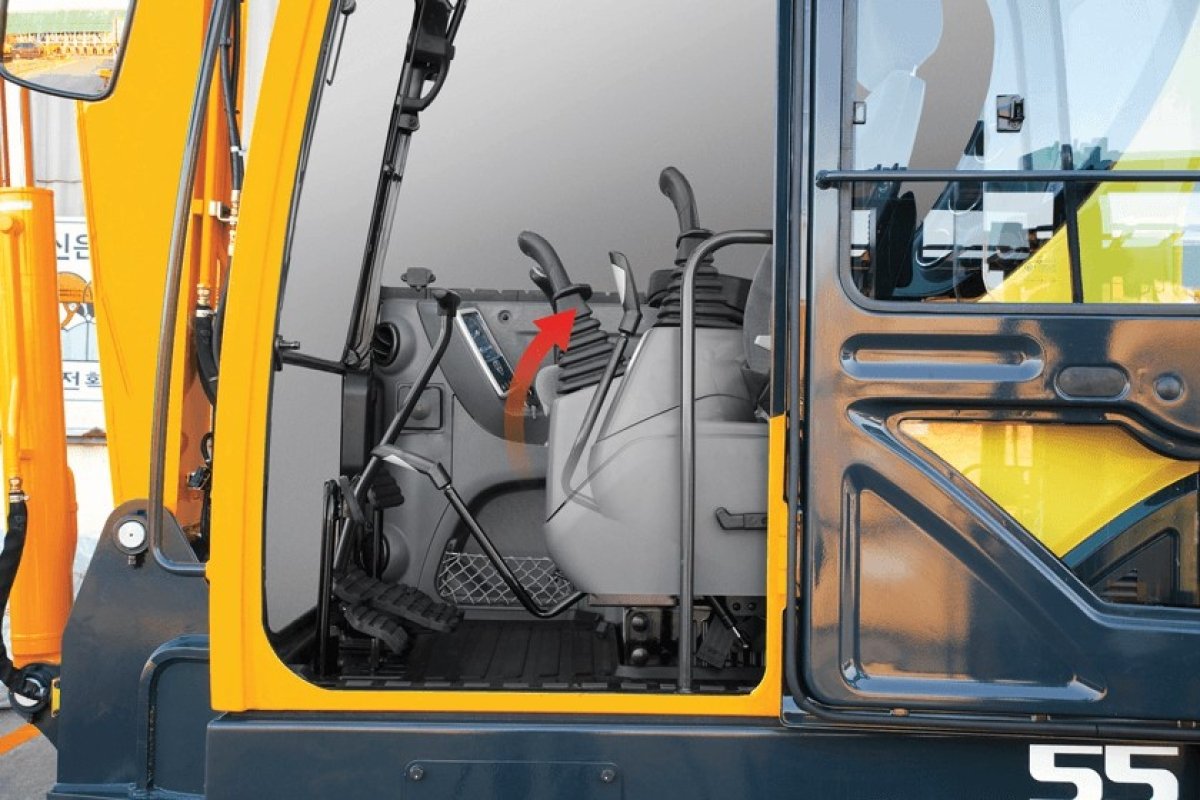

CAB ENTRY Hyundai HX85A

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
serviceability

Hyundai HX85A

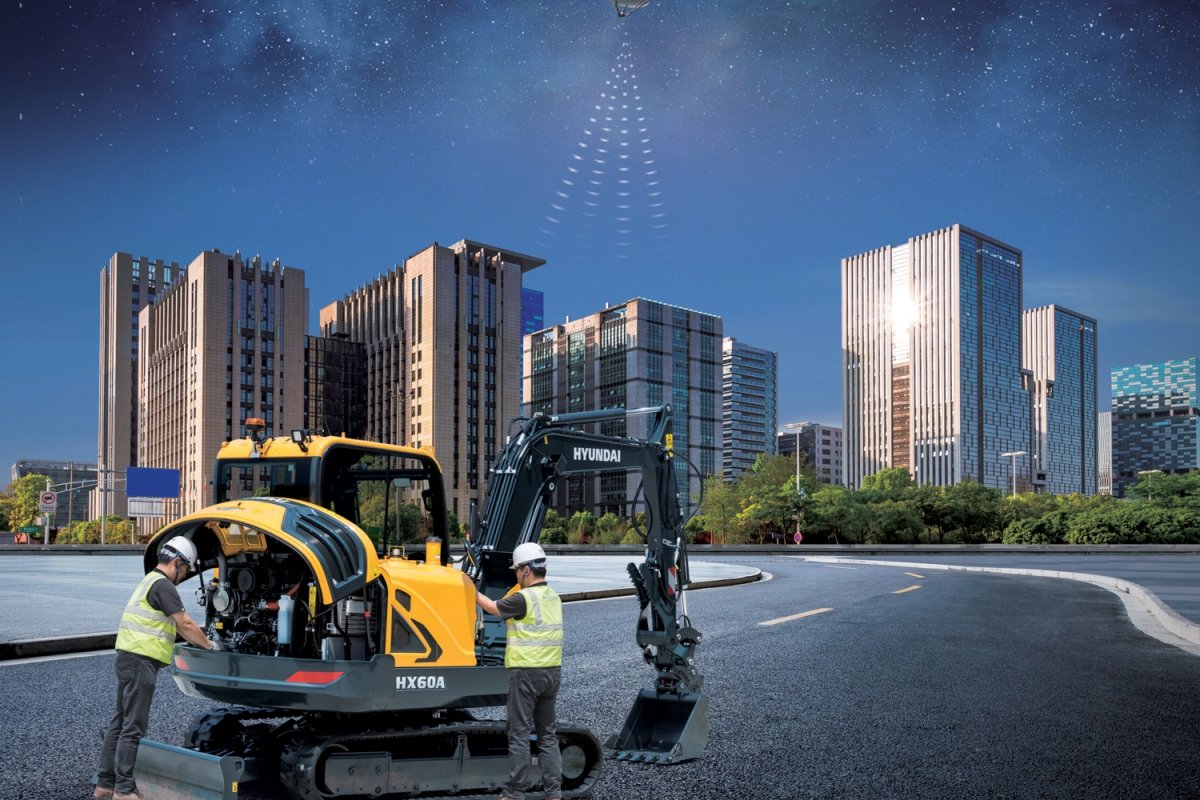

HI MATE TELEMATICS

Hyundai Hi MATE telematics now available on all HX-A series mini excavators for a 5-year standard subscription.

Hyundai HX85A

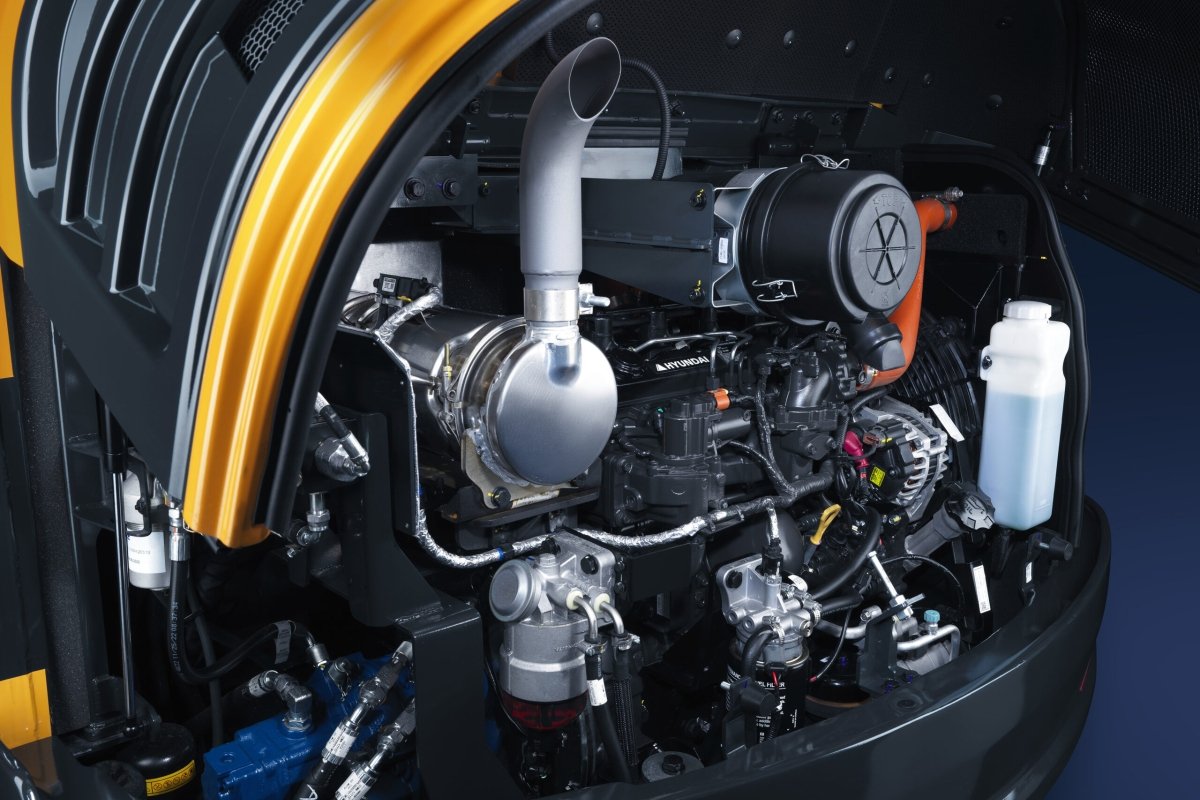

Fully Accessible MCV & Engine

The HX55ACR cowl is a full open type, which allows for easy access to both the MCV and engine. In addition, the layout of the MCV and engine has been optimized for better serviceability.

Hyundai HX85A Optimal Placement of Filters

Large engine hood and easy ground level access to daily checks and filter.
safety

Hyundai HX85A

AUTO-SAFETY LOCK

If the operator accidentally releases the safety lever while the RCV lever is engaged, our excavator's safety system prevents unintended operation. This ensures that the excavator is not controlled by the RCV lever and prevents potential accidents.

Hyundai HX85A

LED LIGHTING

For added safety, LED lamps are used in all the work lights. The boom work lights are recessed to help prevent damage when working.

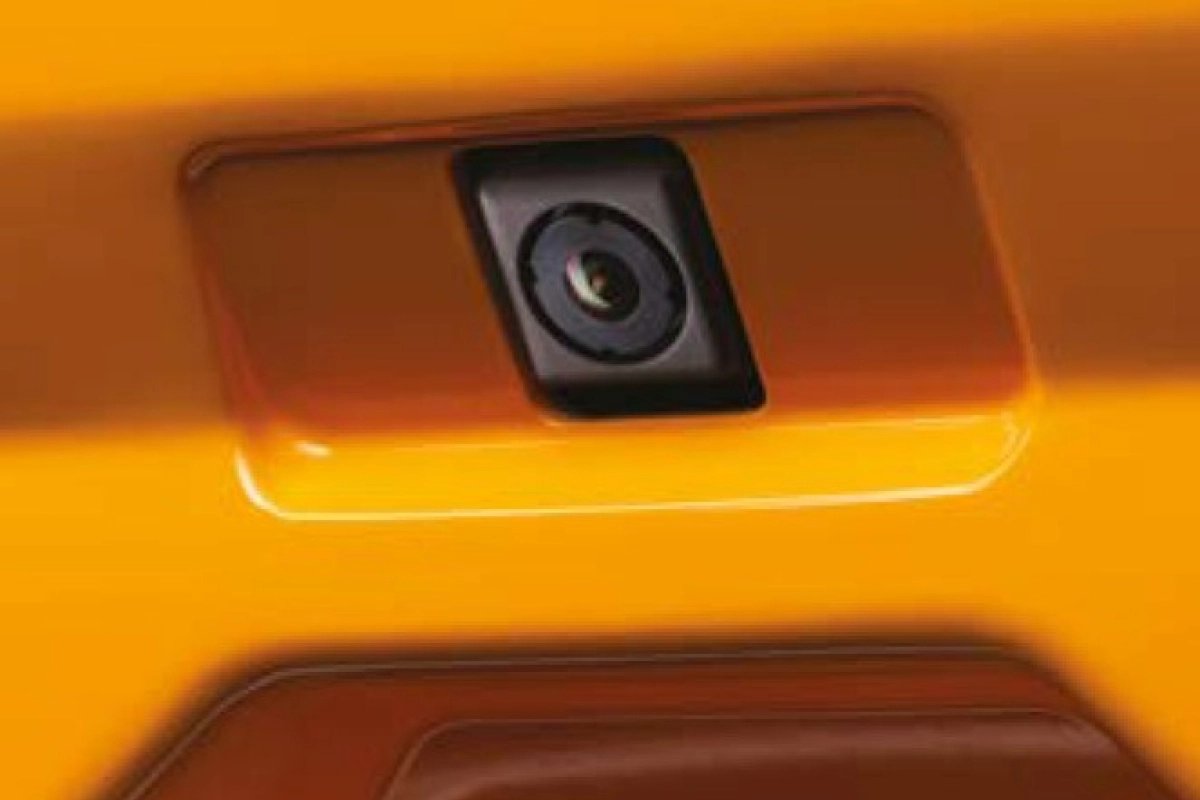

Optional Rearview Camera Hyundai HX85A

The HX60A is equipped with a rearview camera as standard with the option of a side-view camera.
literature
Name Link
FAMILY BROCHURE Download
PRODUCT SPECS Download
