Hyundai HX90A

  • Hyundai HX90A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview

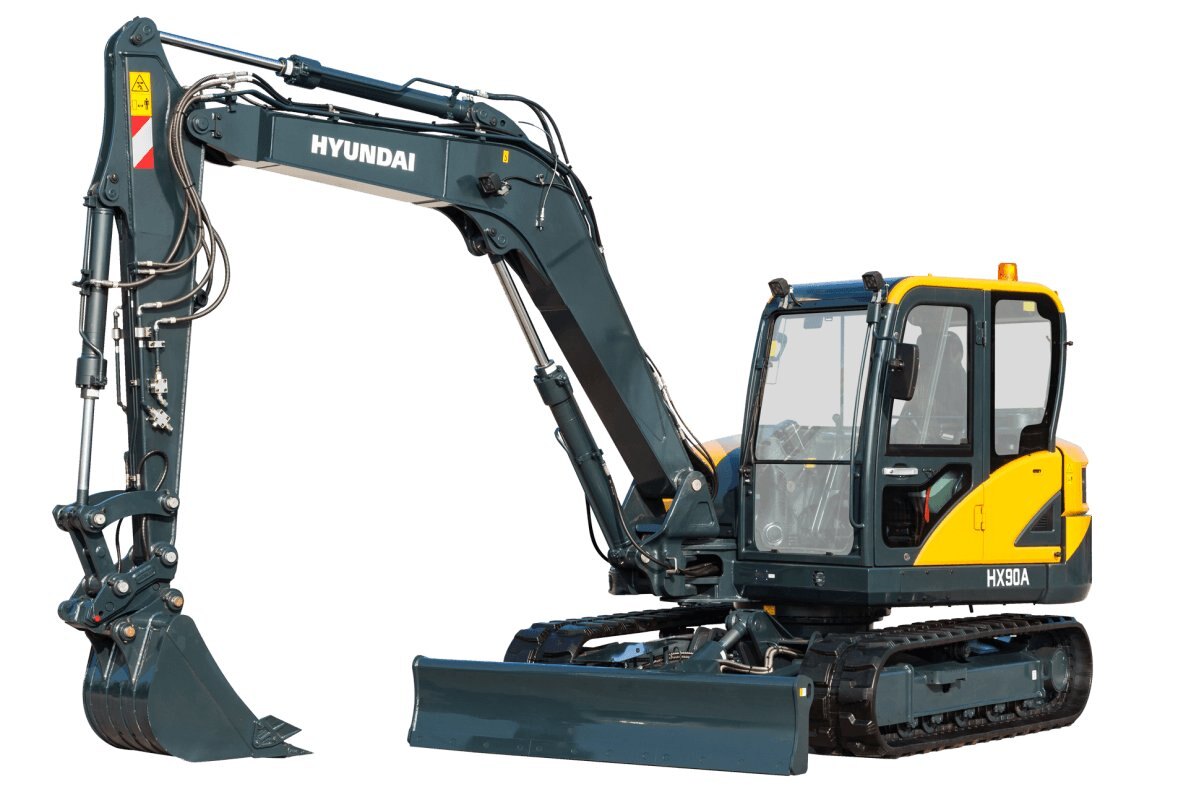

The Hyundai HX90A model is the company’s first compact excavator included among the A-Series machines, and the first to be designated an HX model number. The largest of Hyundai’s compact excavator models, the HX90A fills a transitional spot in its overall excavator product line between the compact and full-sized models. It features an engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of this compact machine, along with its ability to work productively in confined spaces.
Specifications
Model
HX90A
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
65 hp @ 2,400 rpm
SWING SPEED
9.5 rpm
ENGINE MODEL
Yanmar 4TNV98C-PHYB
BUCKET CAPACITY
0.33 yd³
OPERATING WEIGHT
20,040 lb.
TAIL SWING RADIUS
5' 5.9"
MAX. DIGGING DEPTH
15' 0.7"
MAX. DIGGING REACH
24' 4.1"
ARM CROWD FORCE (ISO)
8,338 lb.
MAX TRAVEL SPEED (MPH)
3.2 mph
BUCKET BREAKOUT FORCE (ISO)
13,852 lb.
reliability and durability

Hyundai HX90A RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX90A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

Hyundai HX90A DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
performance

Hyundai HX90A

TIER 4 FINAL ENGINE

YANMAR 4TNV98C-PHYB Water cooled, 4 cycle diesel, 4 cylinders in line, direct injection, low emission engine with 65.1 HP (48.5 kW) at 2,400 rpm delivers more power and peak torque for a smooth operator experience. Maintenance has been simplified while offering an auto-regeneration feature that keeps the engine EPA certified, particulate matter clean, and the machine up and running. Features like this offer HX90A owners reduced operating costs through better fuel economy, better performance, and longer service intervals.

Hyundai HX90A

Boom Swing

The HX90A boom swing function is designed for efficient work in congested residential and urban areas. The boom can be offset left or right within an operating range. Plus, increased swing torque provides enhanced operating capability on the slope.

Hyundai HX90A

DOZER BLADE

The HX90A excavator features as standard equipment a large angled dozer blade that provides added versatility, efficiency, and stability. An optional 4-way angle dozer blade that moves up, down, left, and right is also available.
convenience

Hyundai HX90A

MONITOR

The advanced large 7" touch screen LCD cluster monitor allows the operator to select his personal machine preferences. Button selections are provided for auto idle shutdown mode, max power mode, and travel speed. The view from the optional rearview camera and a slope sensor can also be displayed on the monitor for additional operating safety and performance awareness. A security feature is also provided to prevent the machine from starting without a proper password.

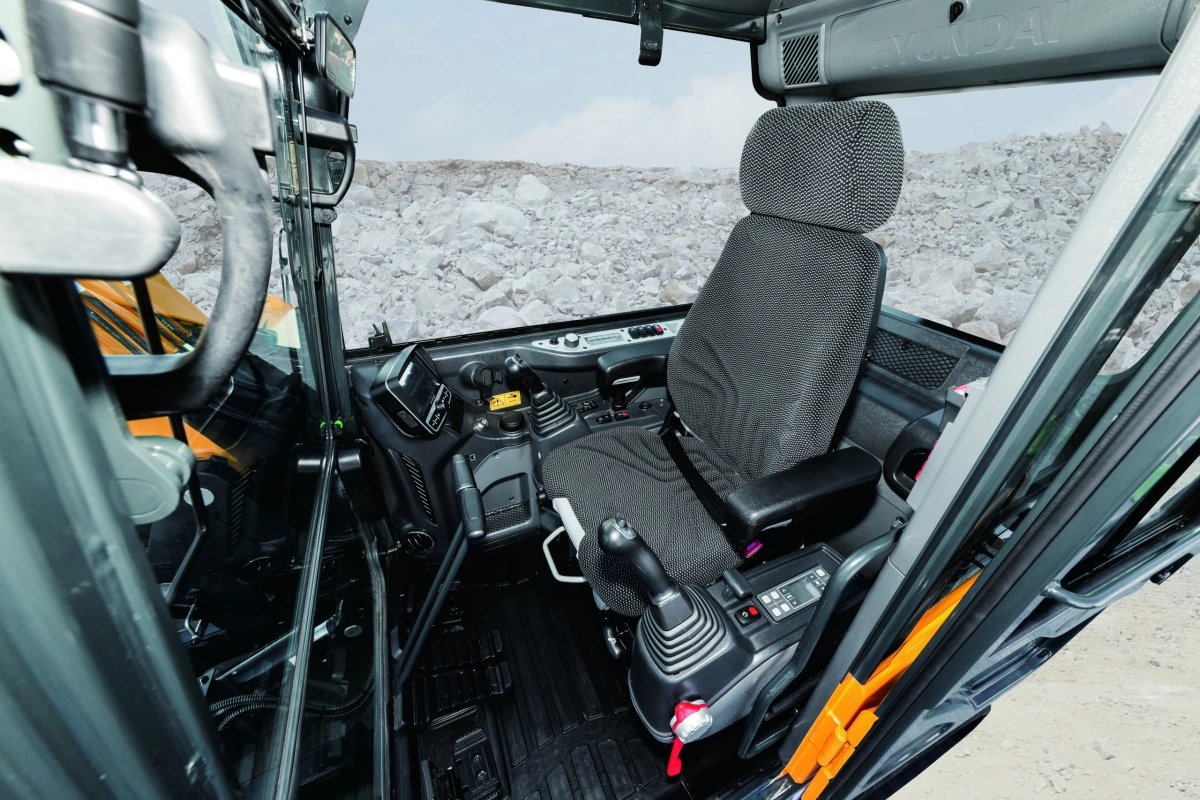

Hyundai HX90A SUSPENSION SEAT

The HX90A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable armrests and a spacious environment helps to minimize operator fatigue.

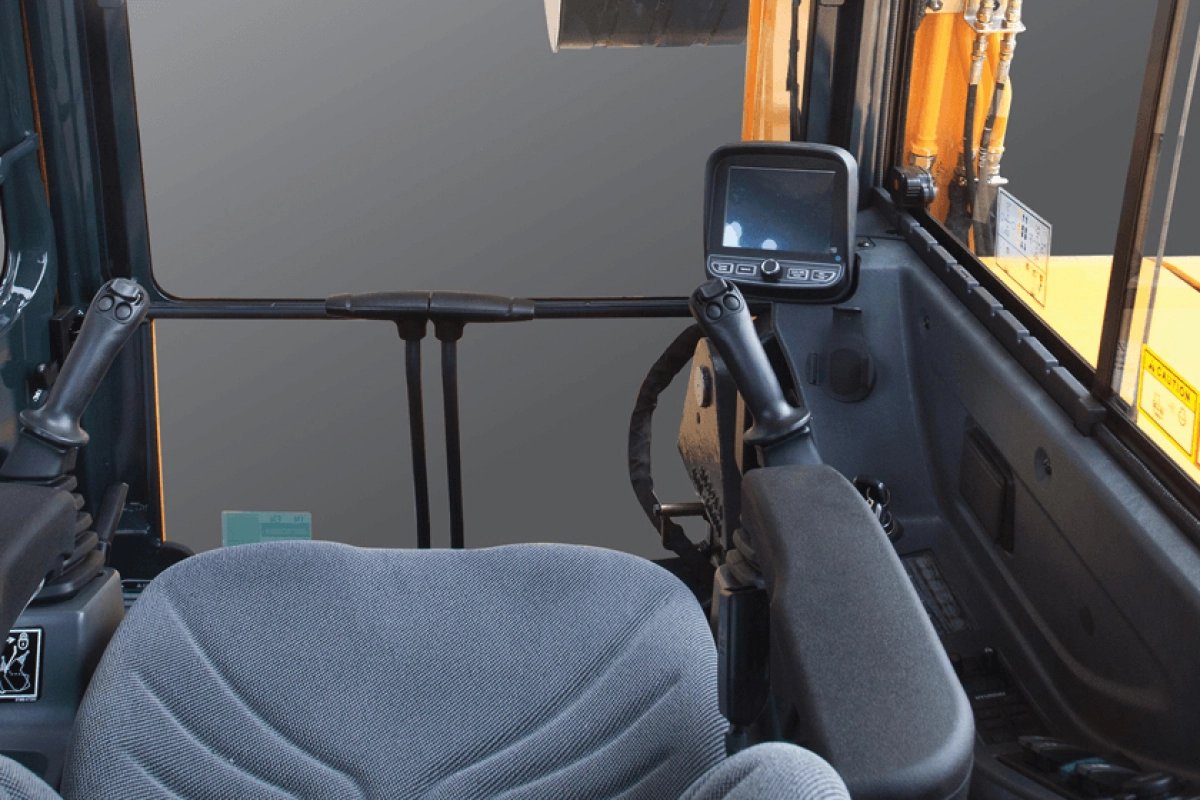

ERGONOMIC CONTROLS & SWITCHES Hyundai HX90A

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY Hyundai HX90A

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
serviceability

Hyundai HX90A

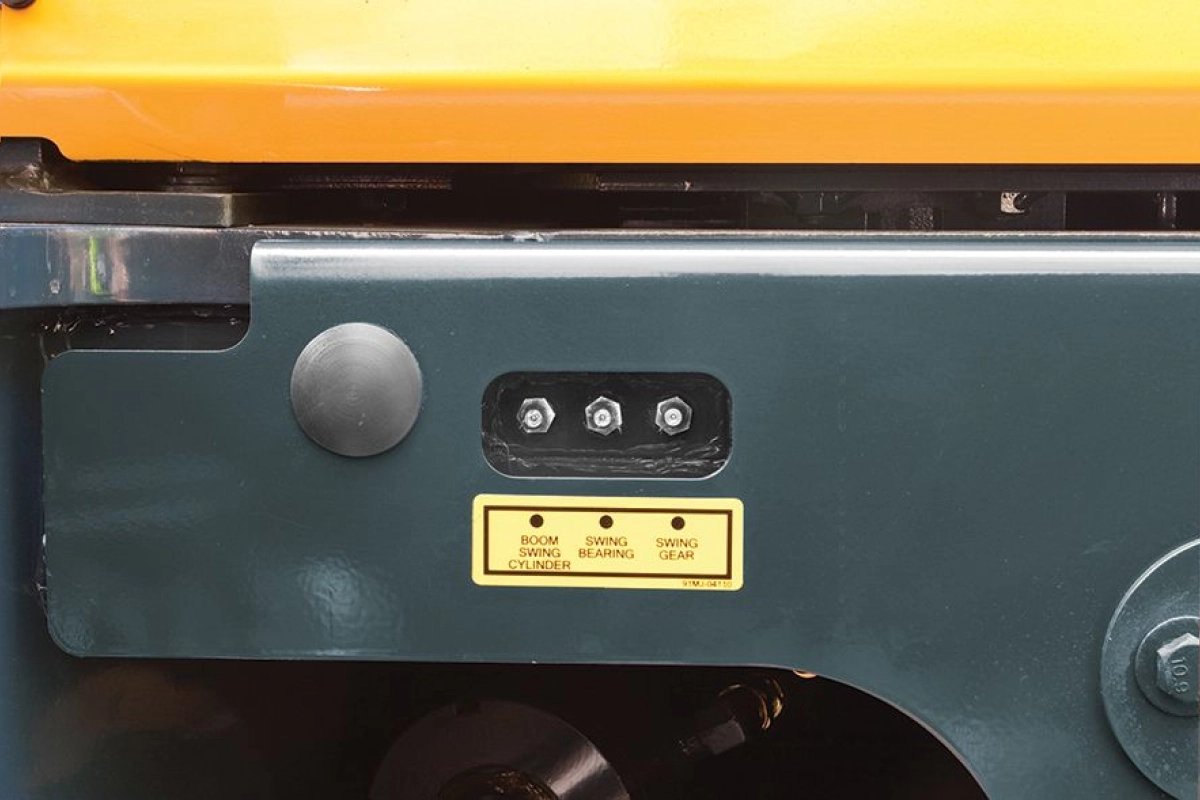

CENTRALIZED LUBRICATION

Centralized lubrication bank for faster, easier service and maintenance.

Hyundai HX90A

LONG-LIFE COMPONENTS

Hyundai compact excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear-resistant, noise-reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine downtime.

Hyundai HX90A

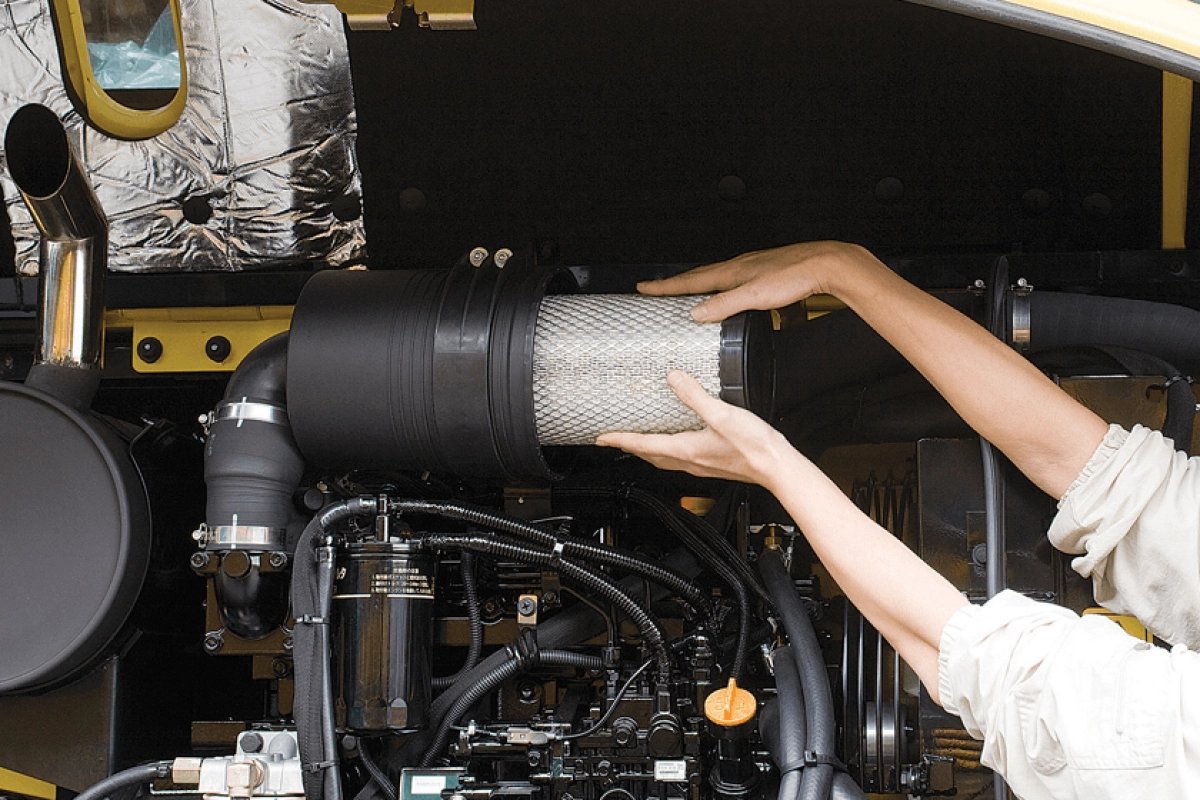

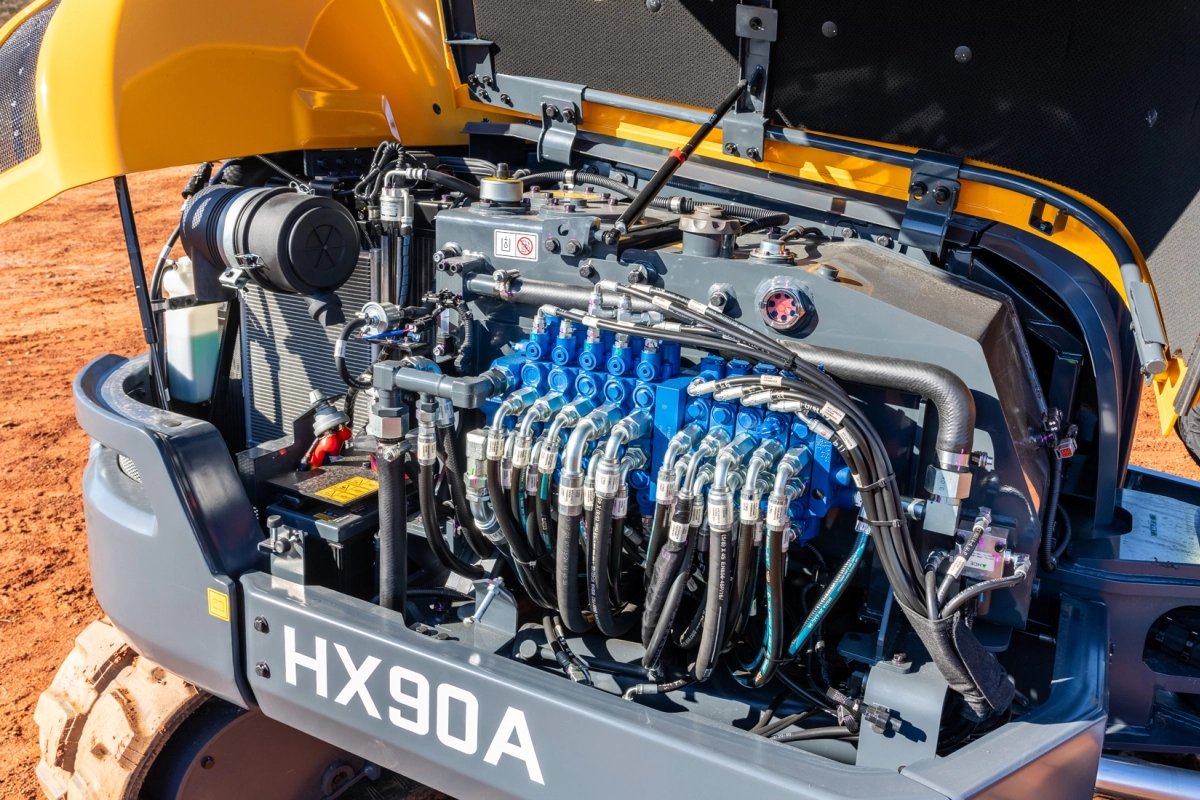

EASY ACCESS

The HX90A was built with accessibility in mind. All covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the HX90A.

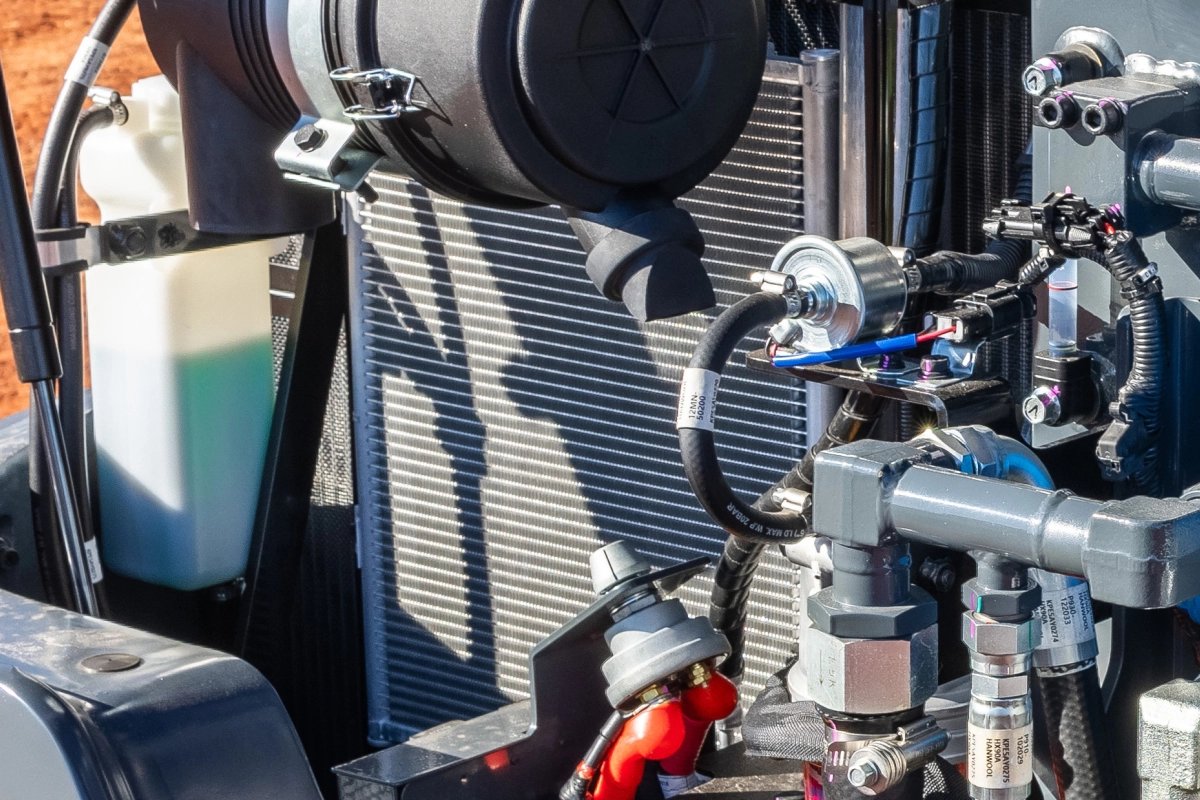

DURABLE COOLER Hyundai HX90A

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improved clean out and durability.
safety

Hyundai HX90A

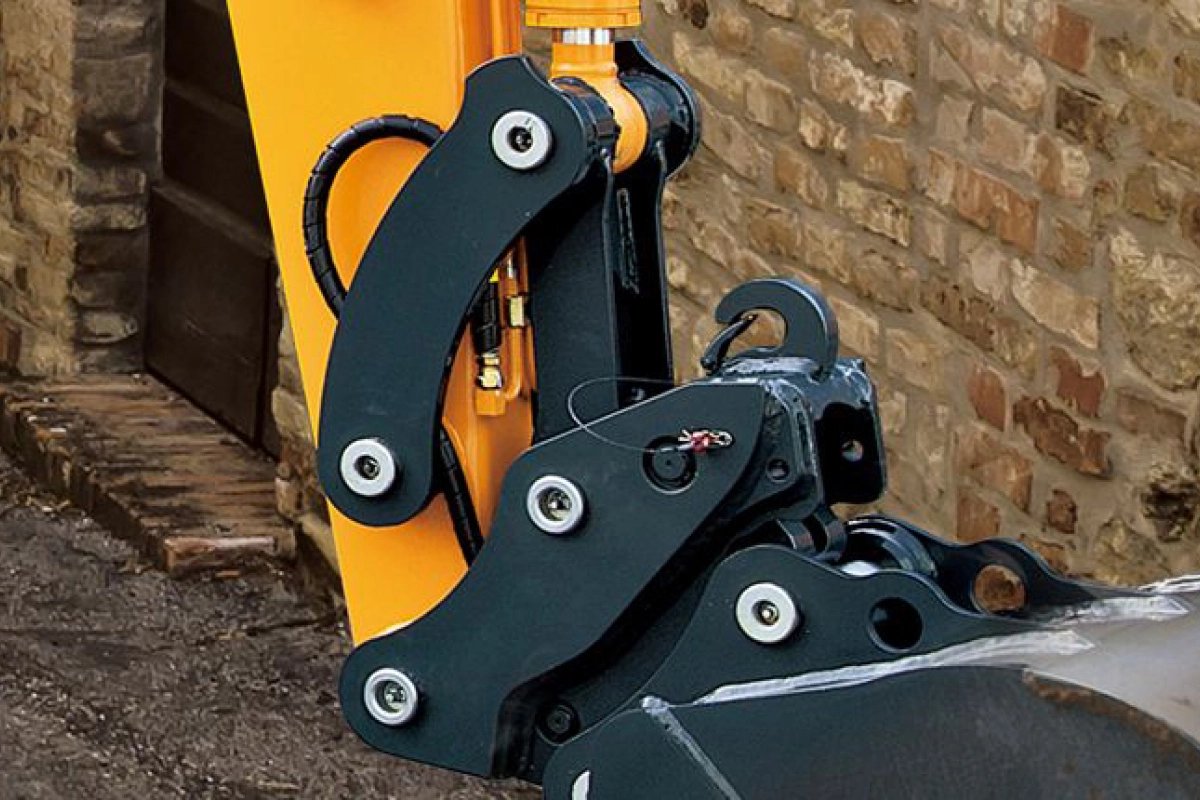

DUAL-LOCK QUICK COUPLER

The HX90A comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

Hyundai HX90A

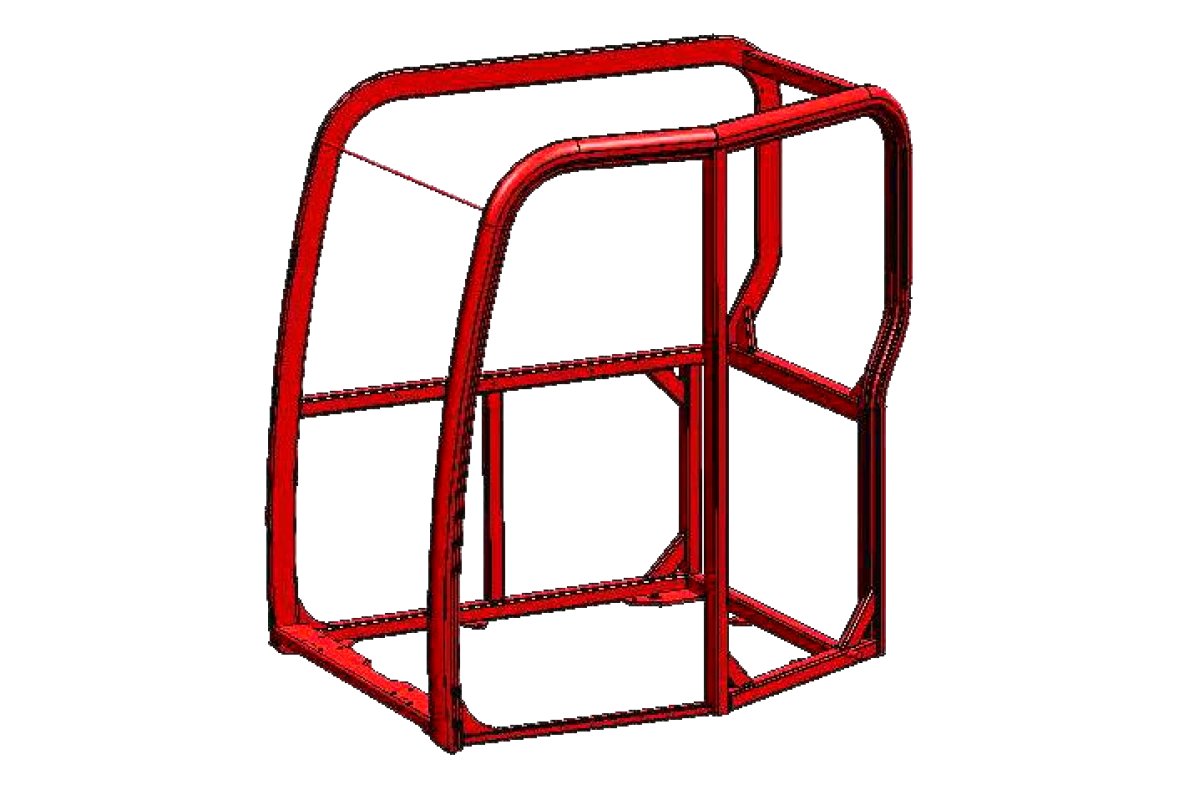

REINFORCED CAB STRUCTURE

Hyundai's HX90A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

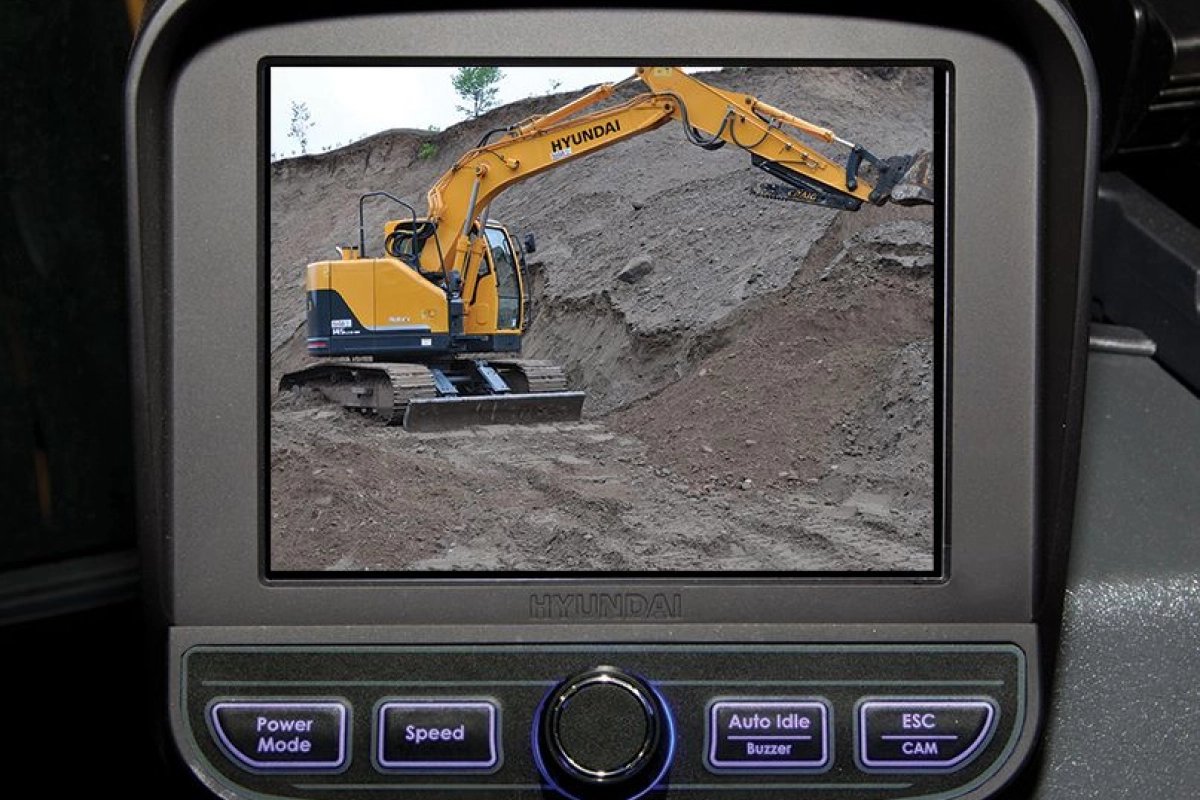

Optional Rearview Camera Hyundai HX90A

Hyundai's HX90A is equipped with an optional full color, integrated rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.

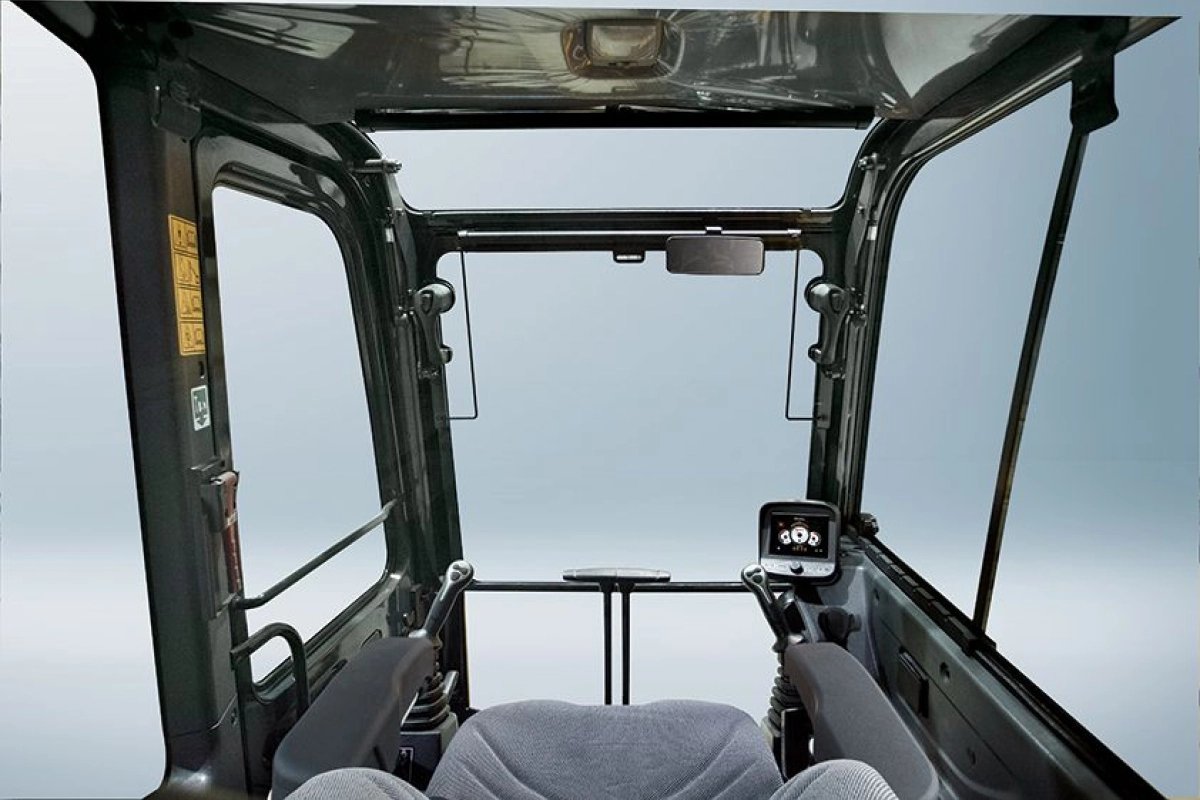

EXCELLENT VISIBILITY Hyundai HX90A

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.
