ID # 39044382

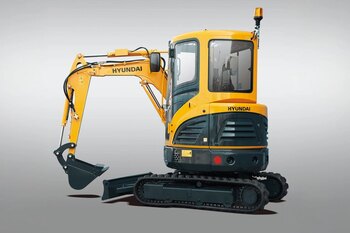

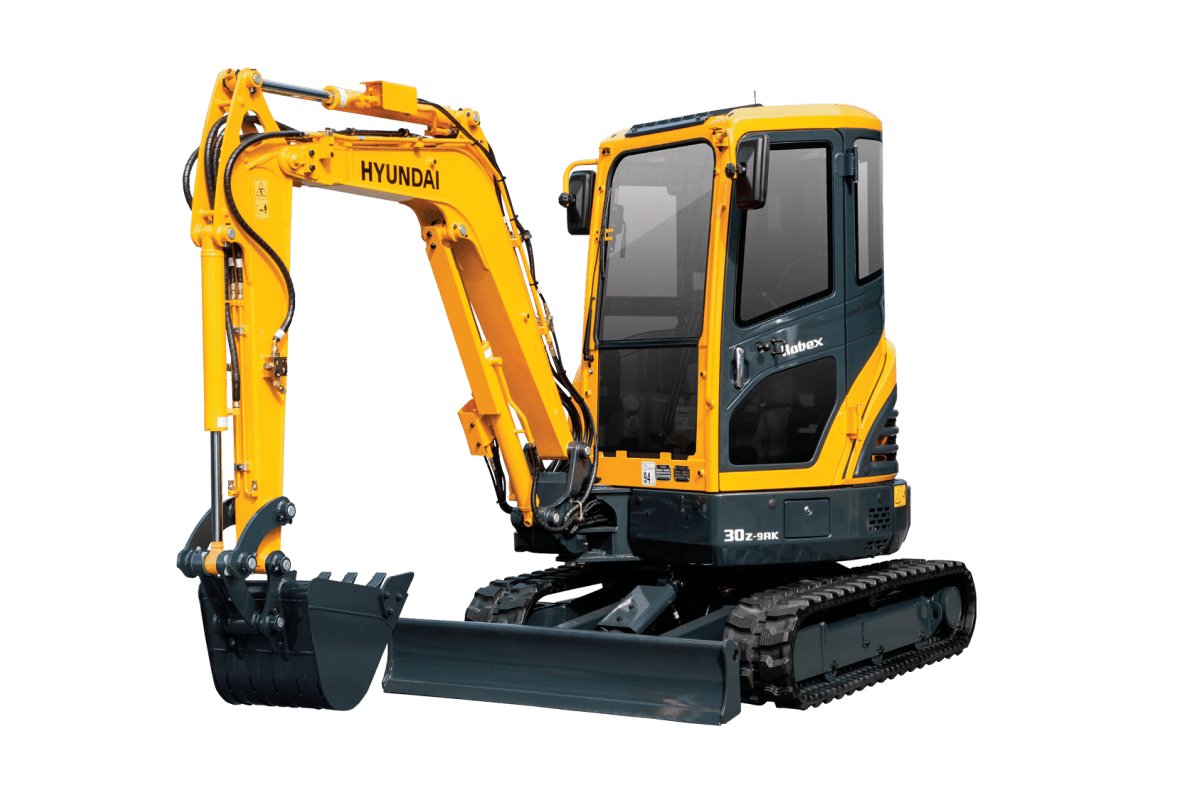

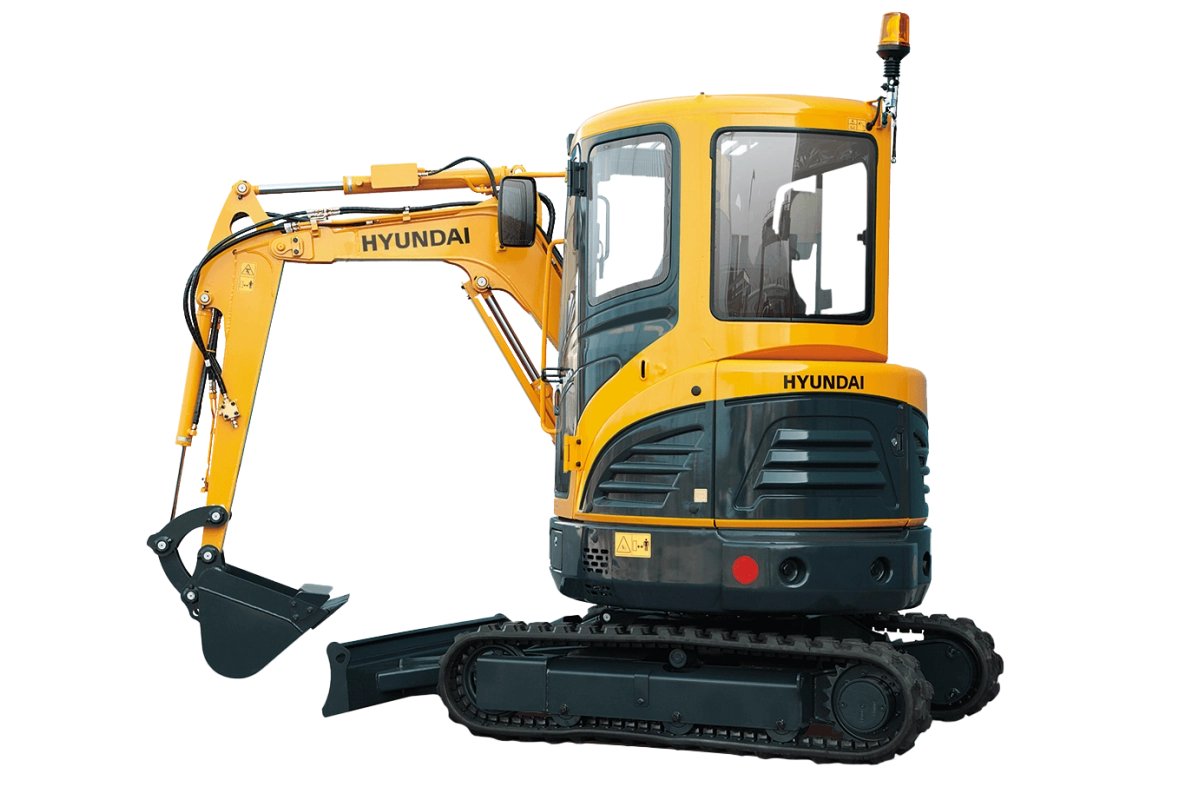

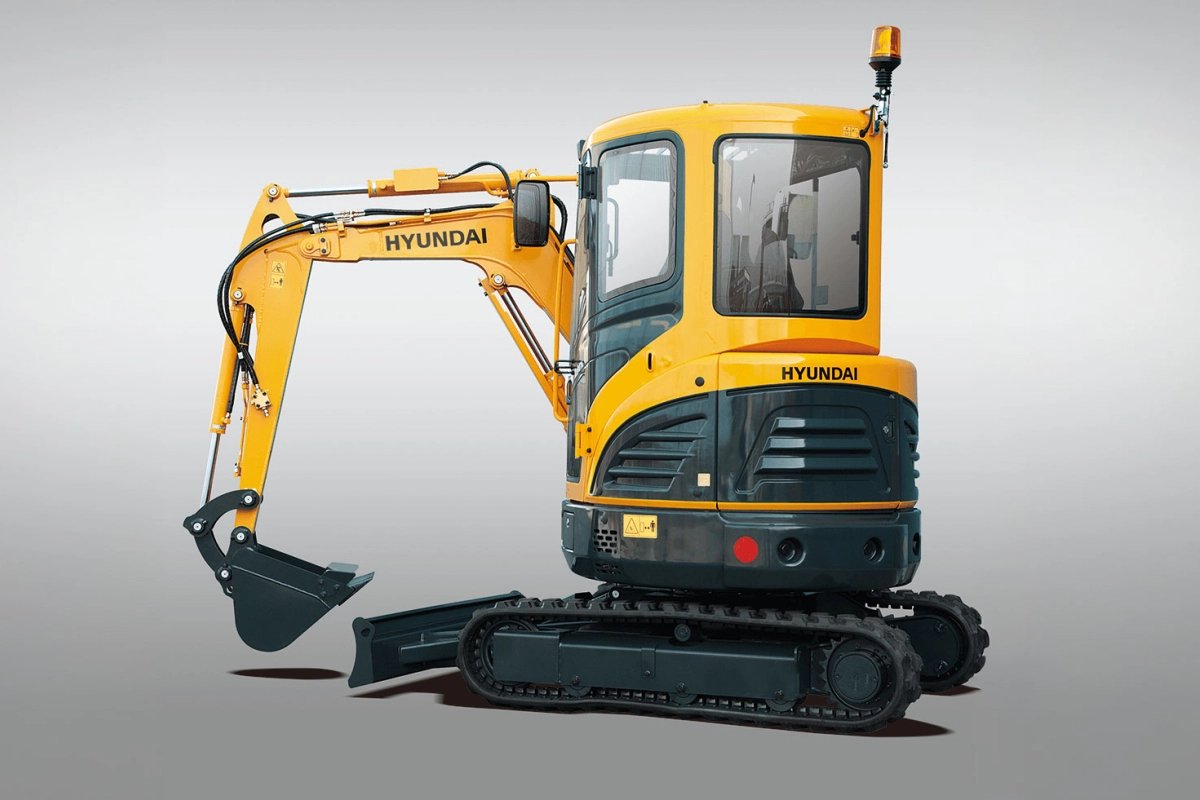

Hyundai R30Z-9AK

Name: Hyundai R30Z-9AK
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

Innovative hydraulic system technologies make the 9AK series excavator fast, smooth and easy to control. 9AK series is designed for maximum performance to keep the operator working productively. Operating a 9AK series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.

Specifications

Model

R30Z-9AK

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

23.2 HP @ 2,350 rpm

SWING SPEED

9.1 rpm

ENGINE MODEL

Kubota D1305

BUCKET CAPACITY

0.1 yd³

OPERATING WEIGHT

6,625 lb.

TAIL SWING RADIUS

2' 6.5"

MAX. DIGGING DEPTH

8' 2.4"

MAX. DIGGING REACH

15' 3.1"

ARM CROWD FORCE (ISO)

3,086 lb.

MAX TRAVEL SPEED (MPH)

2.7 mph

BUCKET BREAKOUT FORCE (ISO)

4,519 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R30Z-9AK is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

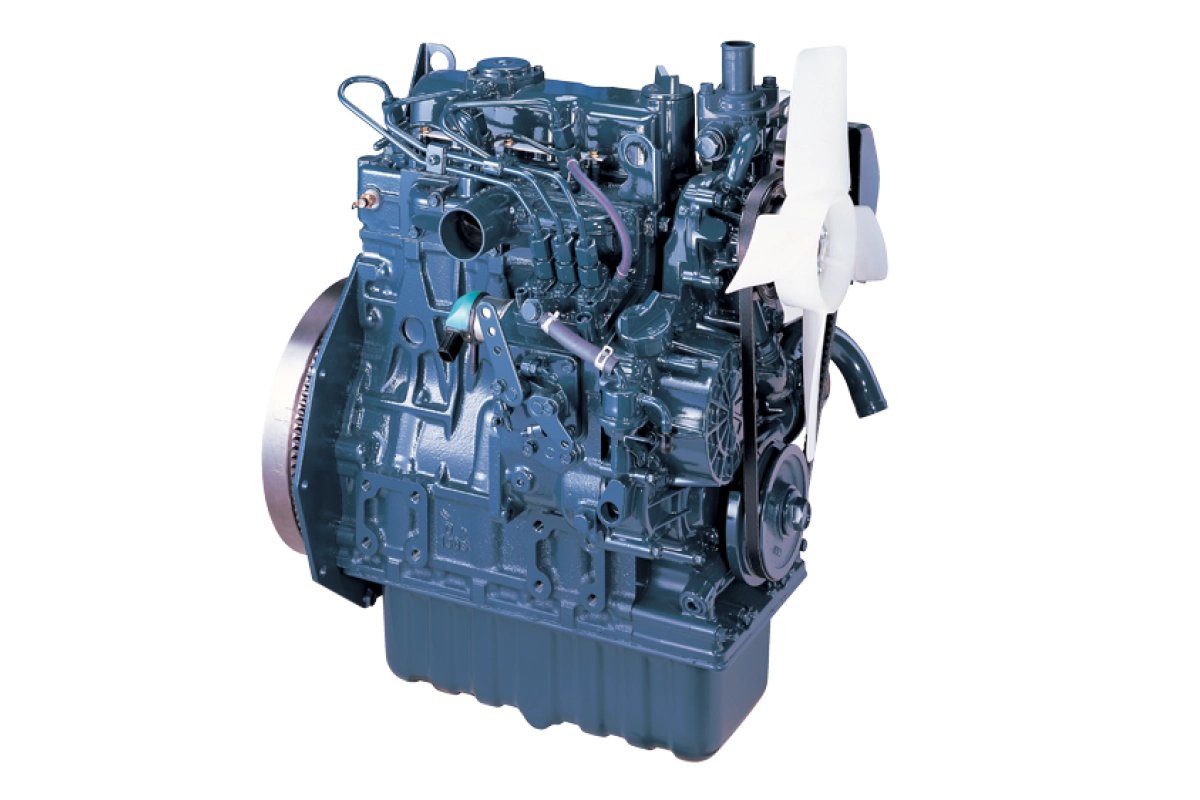

Kubota Tier 4 Final Engine

R30Z-9AK features a Tier 4 Final Kubota D1305 4 Cycle, In line, water cooled Diesel with 23.2 HP ( 17.3kW) at 2,350rpm

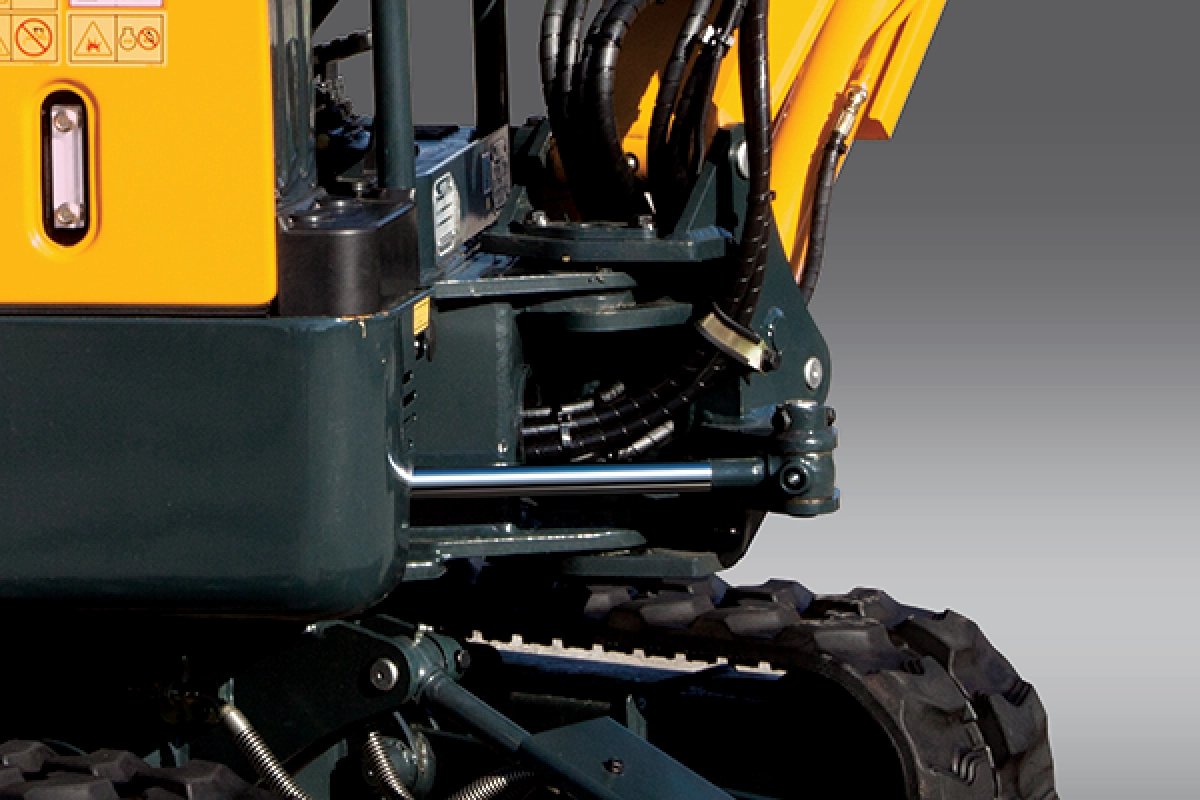

Boom Swing

The 9A series machines all feature a boom swing function to improve productivity in confined work spaces.

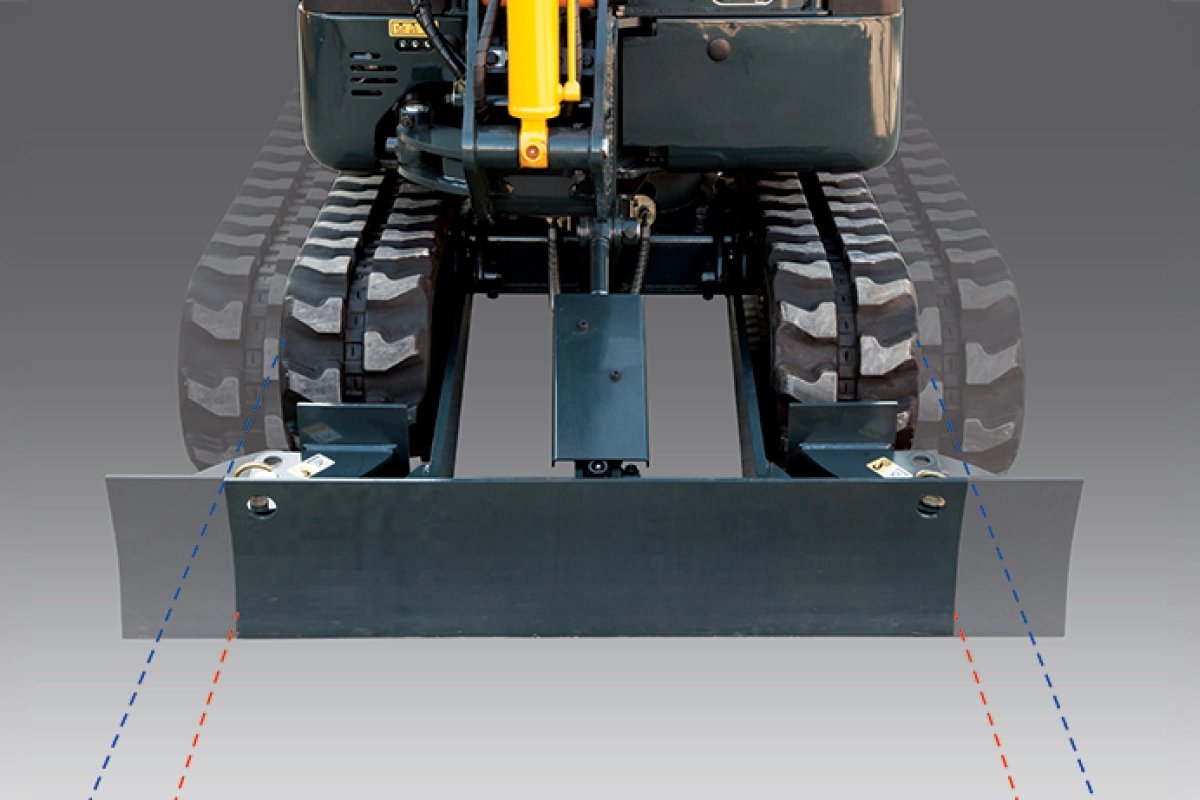

DOZER BLADE

All 9AK series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

Zero-Tail Swing

Zero-tail swing excavator allows you greater flexibility when working in narrow urban areas from an alley and indoor to residential and small gardens.

convenience

MONITOR

The monitoring system of the R30Z-9AK provides the operator with machine status information, including: engine oil pressure lamp, battery charge lamp, engine coolant temperature and a fuel gauge.

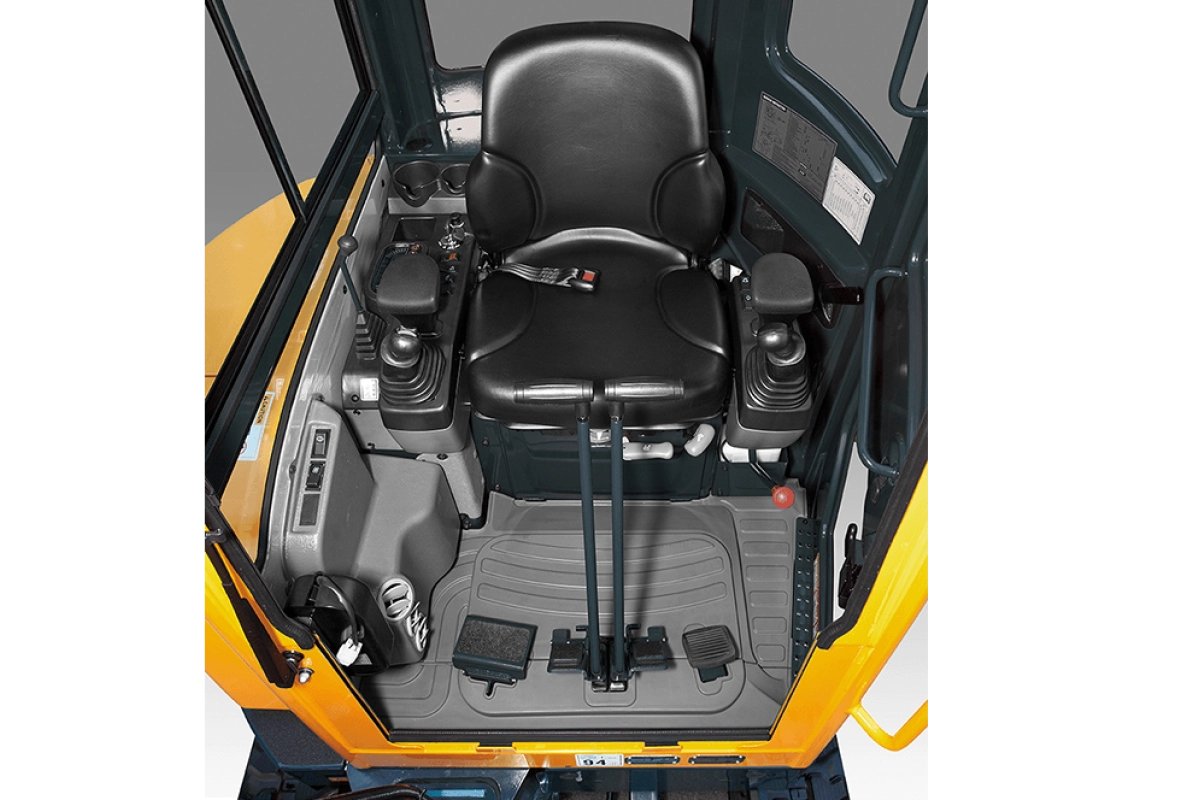

SUSPENSION SEAT

Hyundai R30Z-9AK's adjustable suspension seat, wrist rests, ergonomically designed joysticks and plenty of space help to reduce stress on the operator.

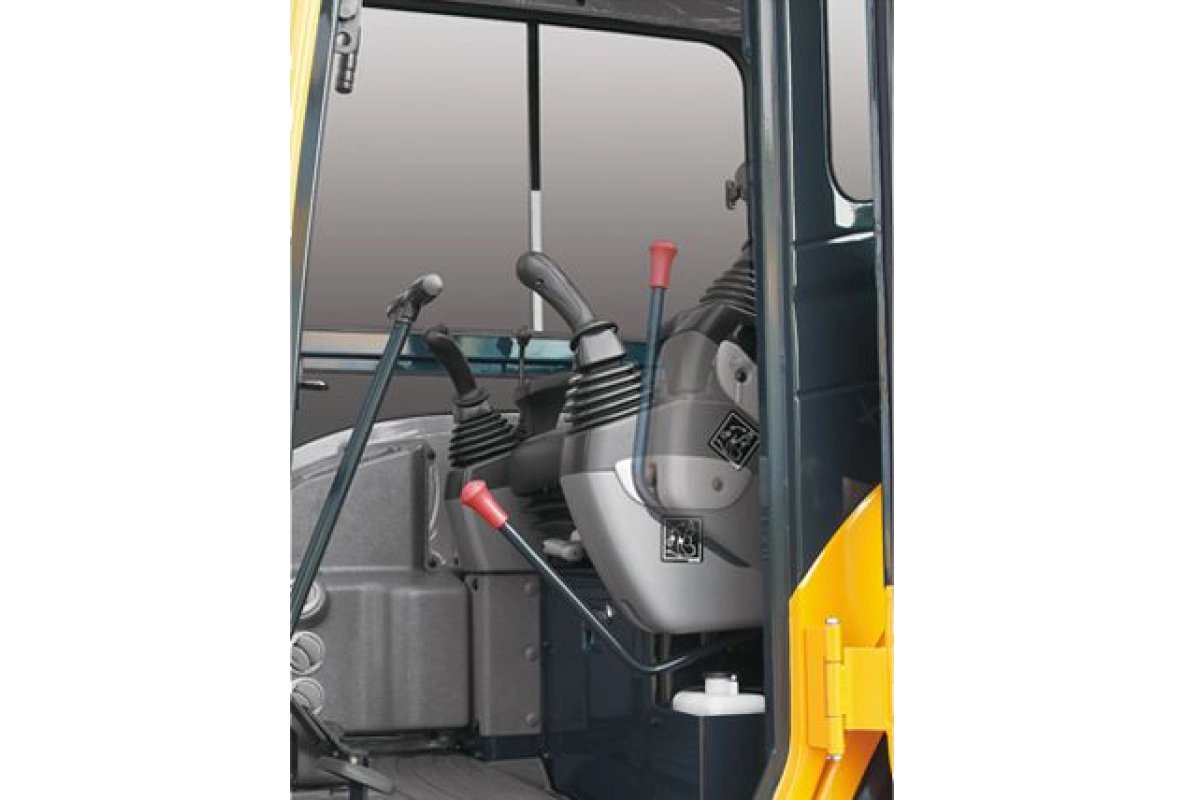

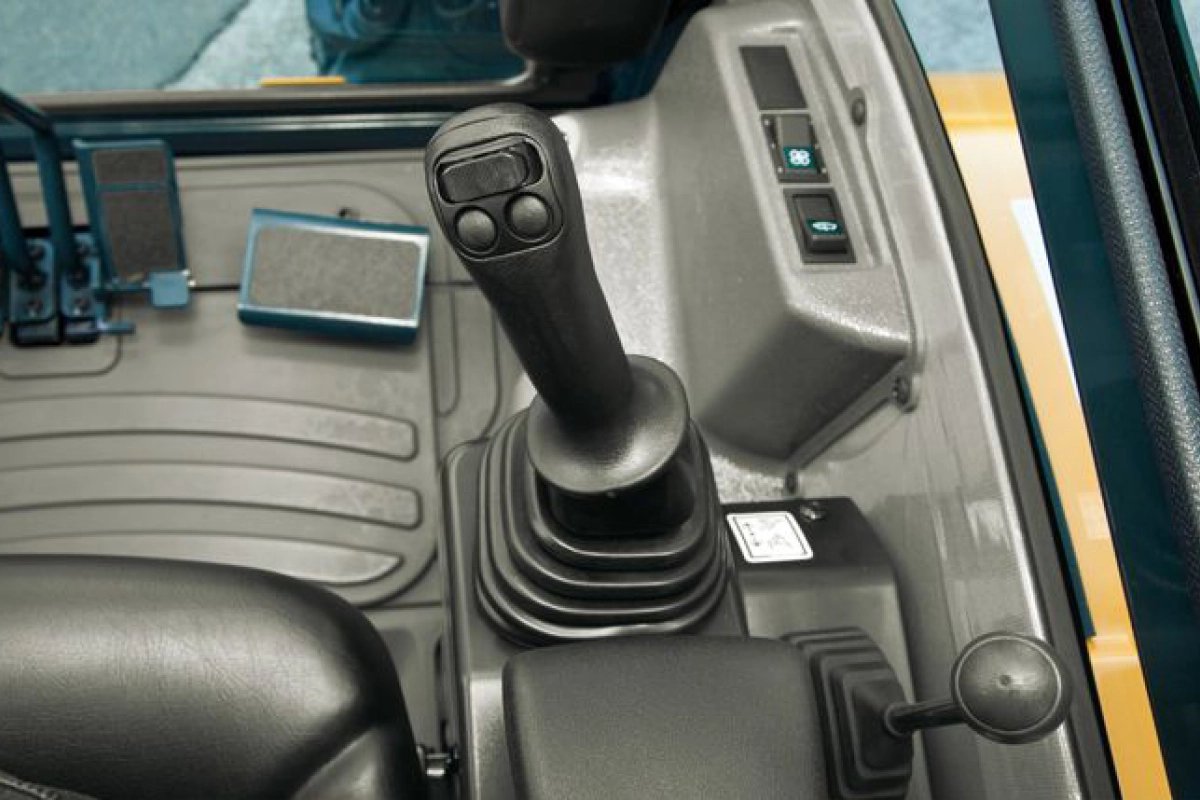

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tilt-able left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

CENTRALIZED LUBRICATION

A centralized lubrication bank is available for faster, easier service and maintenance.

LONG-LIFE COMPONENTS

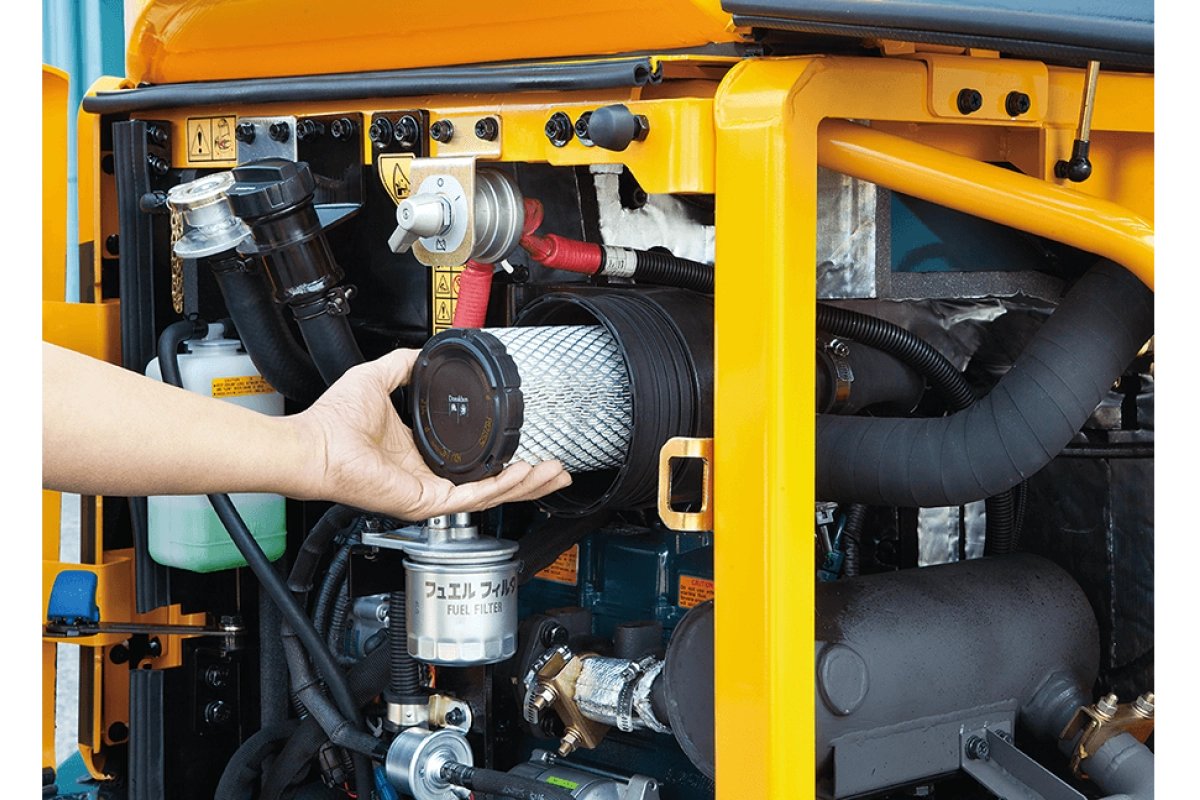

9AK series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.

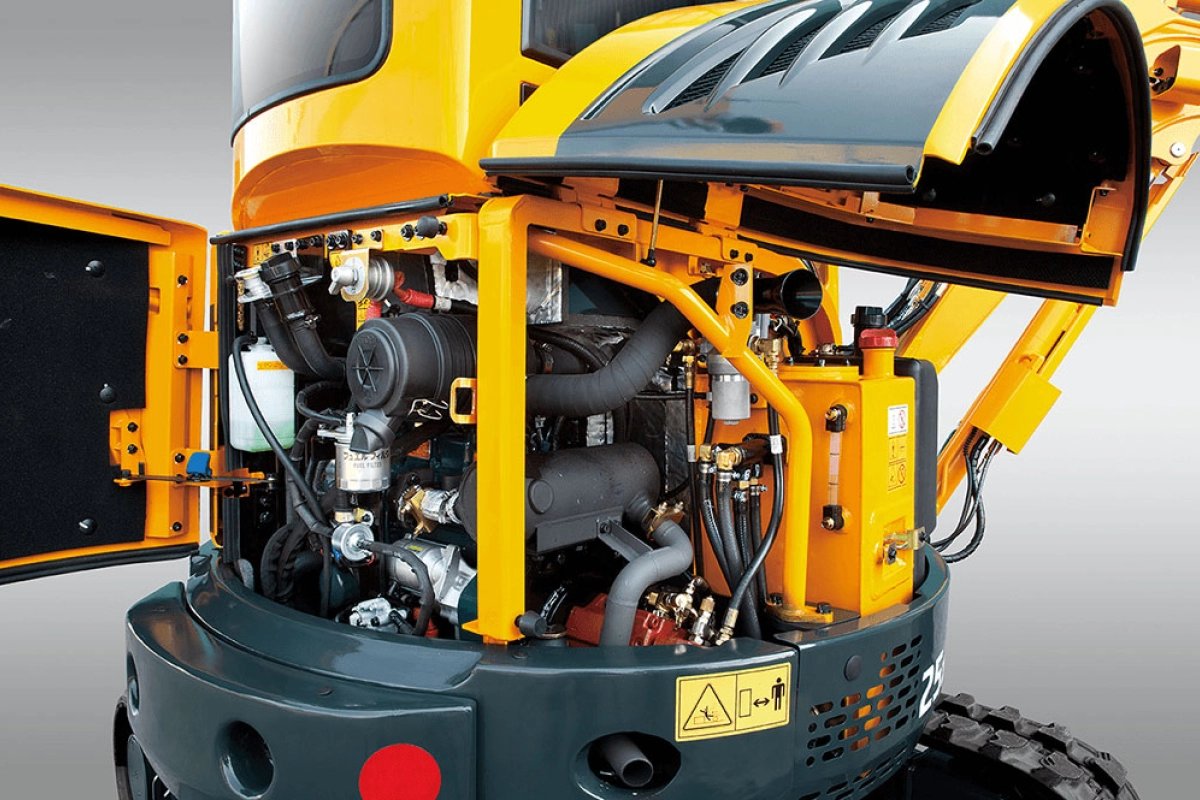

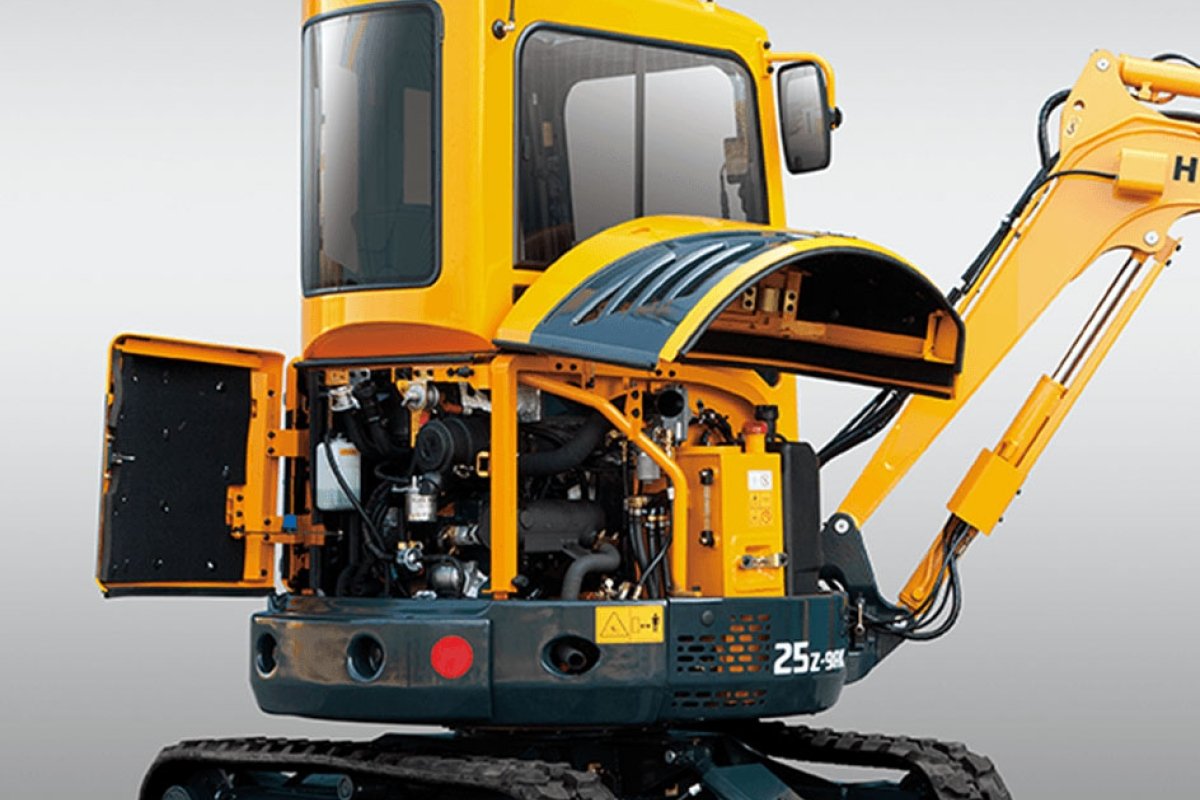

EASY ACCESS

The R30Z-9AK was built with accessibility in mind. All doors, covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R30Z-9AK.

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improve clean out and durability.

safety

Dual-Lock Coupler

The R30Z-9AK comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

Reinforced Canopy

Hyundai's R30Z-9AK is tested in accordance with stringent ISO standards. The canopy features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.
