ID # 39044386

Hyundai R80CR-9A

Name: Hyundai R80CR-9A
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

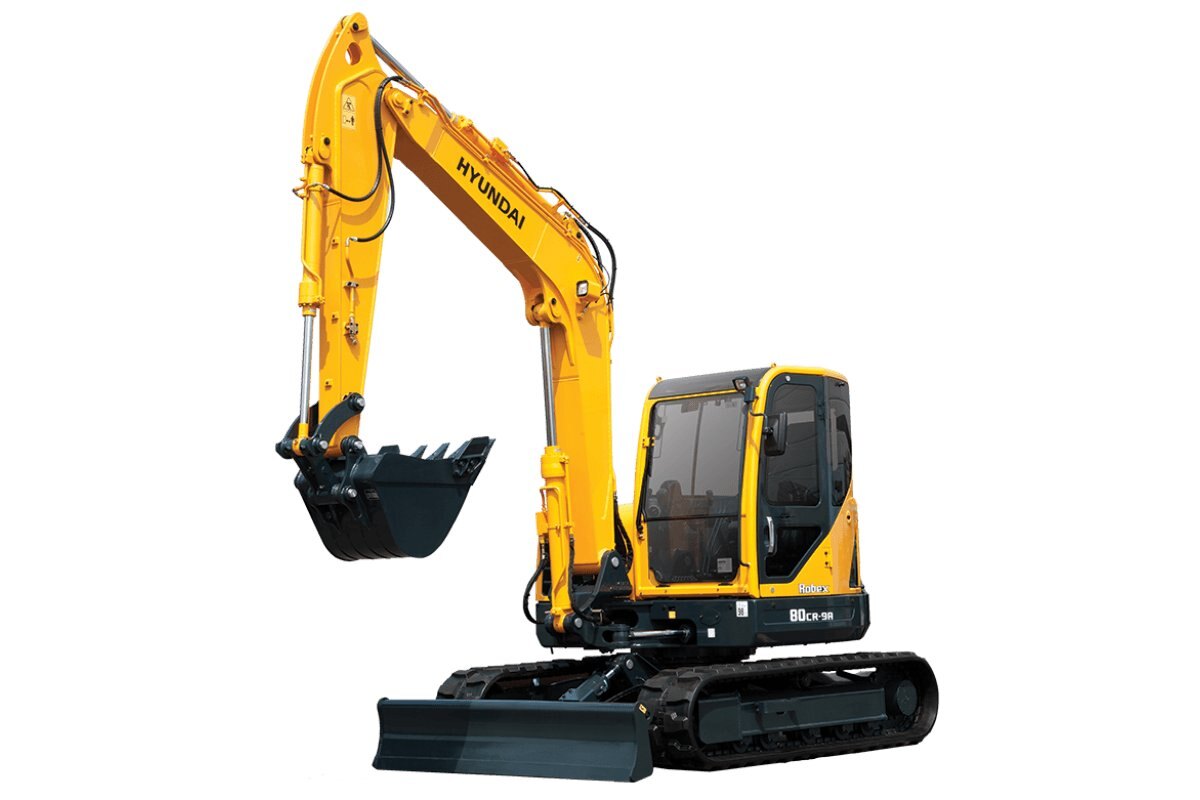

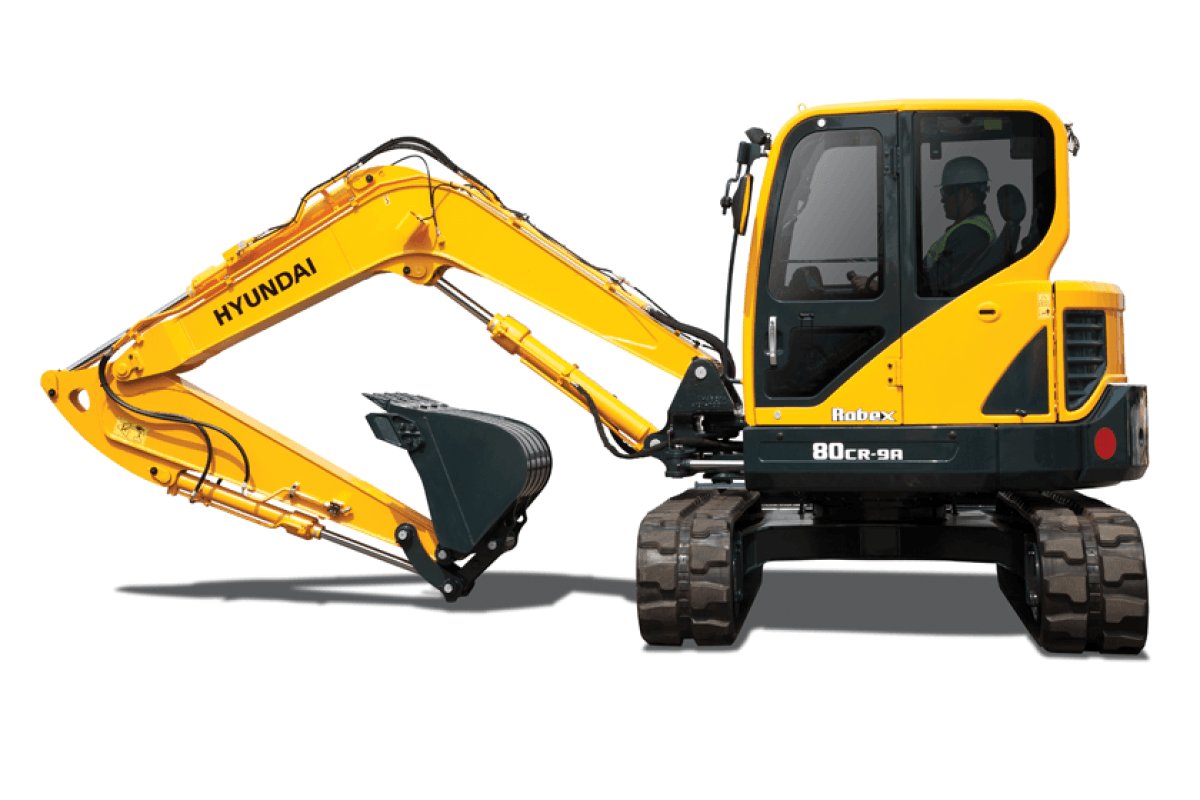

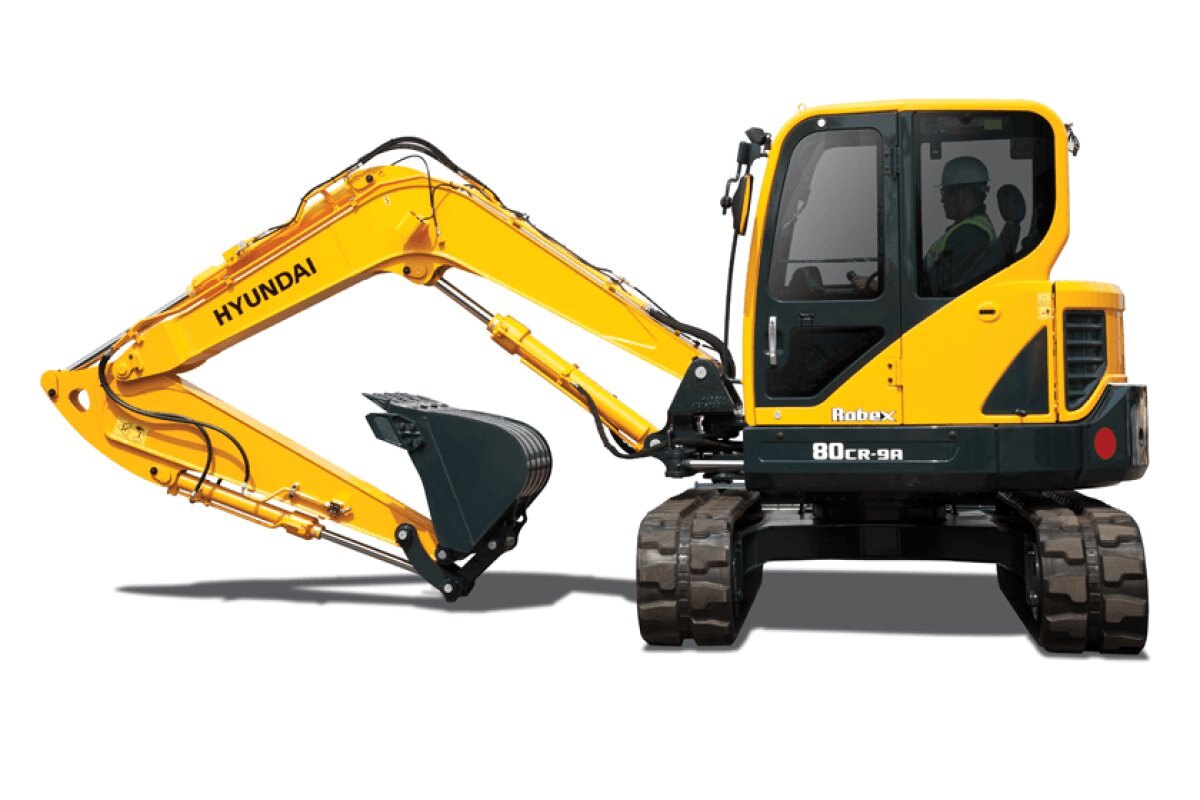

Hyundai 9A series compact excavators bring big power to small spaces. Each model features a Tier 4 Final engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of these compact machines, along with their ability to work productively in confined spaces.

Specifications

Model

R80CR-9A

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

65.1 hp @ 2,400 rpm

SWING SPEED

9.1 rpm

ENGINE MODEL

Yanmar 4TNV98C

BUCKET CAPACITY

0.37 yd³

OPERATING WEIGHT

19,290 lb.

TAIL SWING RADIUS

4' 2.4"

MAX. DIGGING DEPTH

13' 7"

MAX. DIGGING REACH

22' 10"

ARM CROWD FORCE (ISO)

9,480 lb.

MAX TRAVEL SPEED (MPH)

2.9 mph

BUCKET BREAKOUT FORCE (ISO)

12,566 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R60CR-9A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

YANMAR TIER 4 FINAL ENGINE

YANMAR 4TNV98C Water cooled, 4 cycle diesel, 4 cylinders in line, direct injection, low emission engine with65.1 HP (48.5 kW) at 2,400 rpm.

Boom Swing

The R80CR-9A's boom swing function is designed for efficient work in congested residential and urban areas. The boom can be offset left or right within an operating range. Plus, increased swing torque provides enhanced operating capability on the slope.

DOZER BLADE

All 9A series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

ZERO TAIL SWING

Zero-tail swing excavator allows you greater flexibility when working in narrow urban areas from an alley and indoor to residential and small gardens.

convenience

MONITOR

The advanced new LED cluster allows the operator to select his personal machine preferences. Button selections are provided for auto idle mode, max power mode, and travel speed. A security feature is also provided to prevent the machine from starting without a proper password.

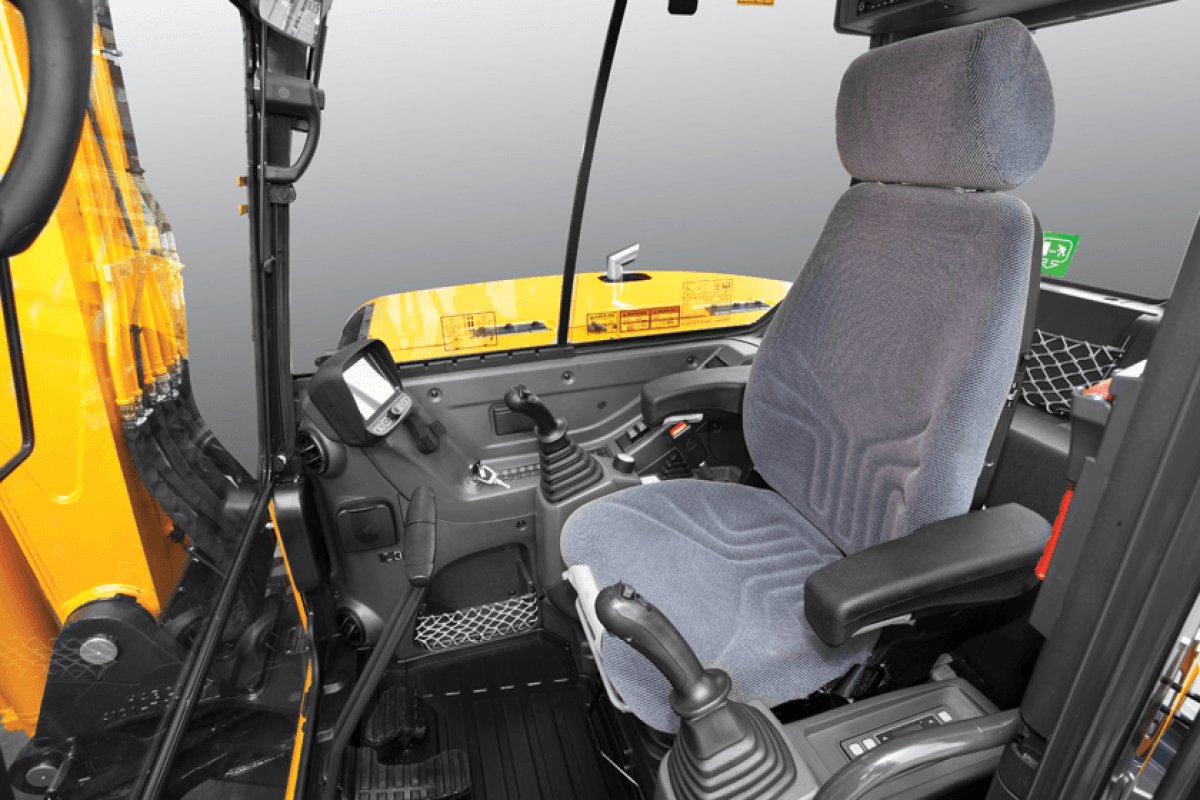

SUSPENSION SEAT

The R80CR-9A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable arm rests and a spacious environment helps to minimize operator fatigue.

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

CENTRALIZED LUBRICATION

A centralized lubrication bank is available for faster, easier service and maintenance.

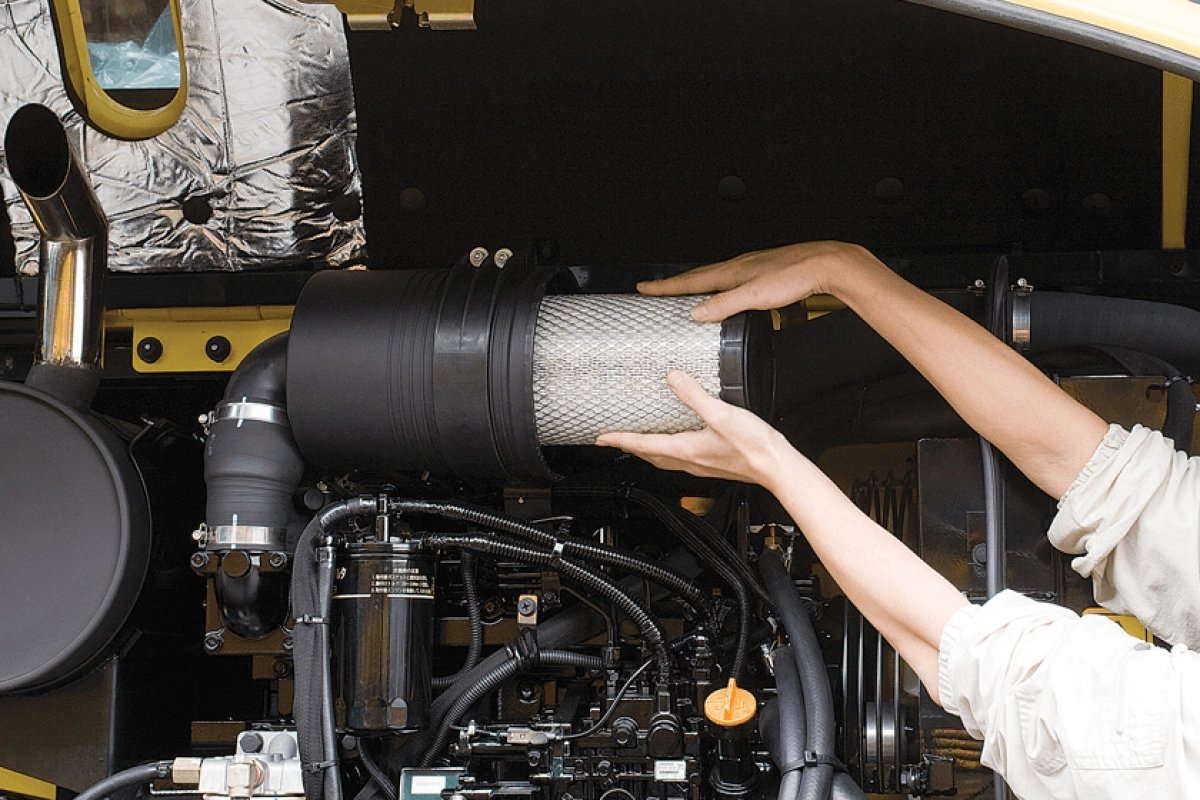

LONG-LIFE COMPONENTS

9A series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.

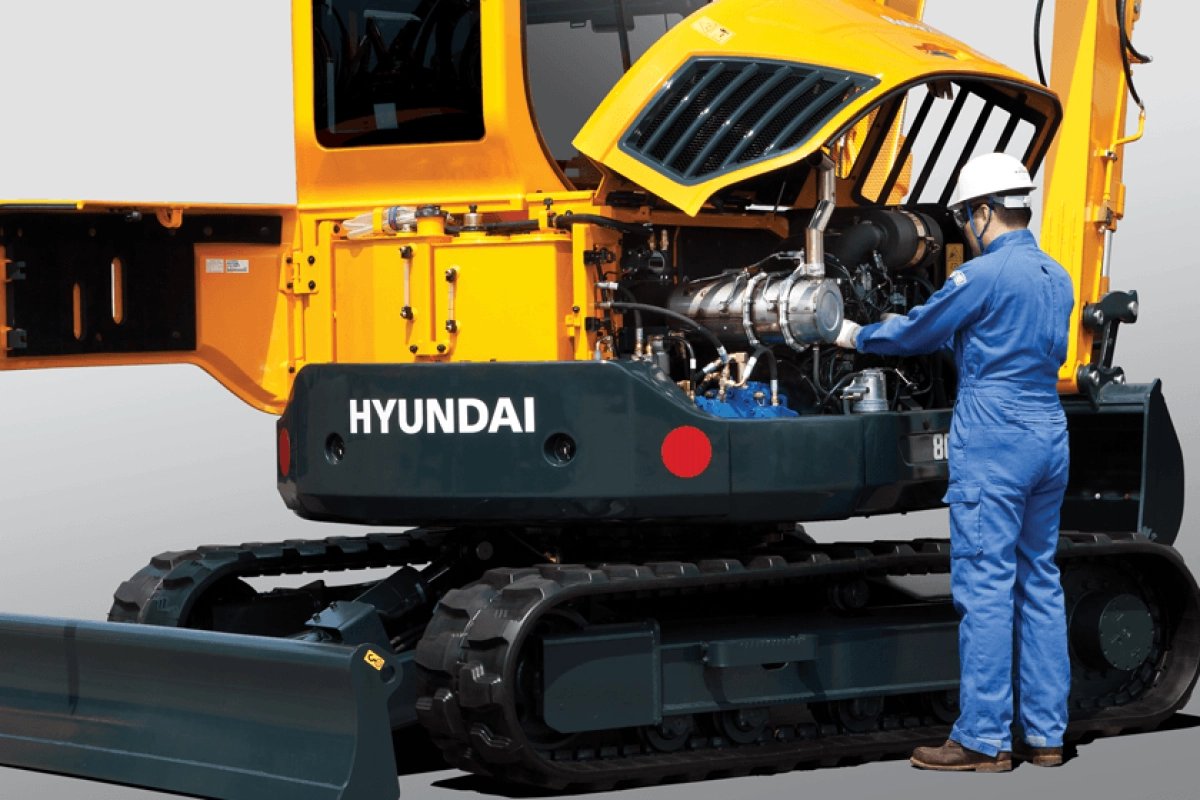

EASY ACCESS

The R80CR-9A was built with accessibility in mind. All covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R80CR-9A.

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improved clean out and durability.

safety

DUAL-LOCK QUICK COUPLER

The R80CR-9A comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

REARVIEW CAMERA

Hyundai's R80CR-9A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

REINFORCED CAB STRUCTURE

Hyundai's R80CR-9A can come equipped with a full color, integrated optional rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.
