ID # 39044403

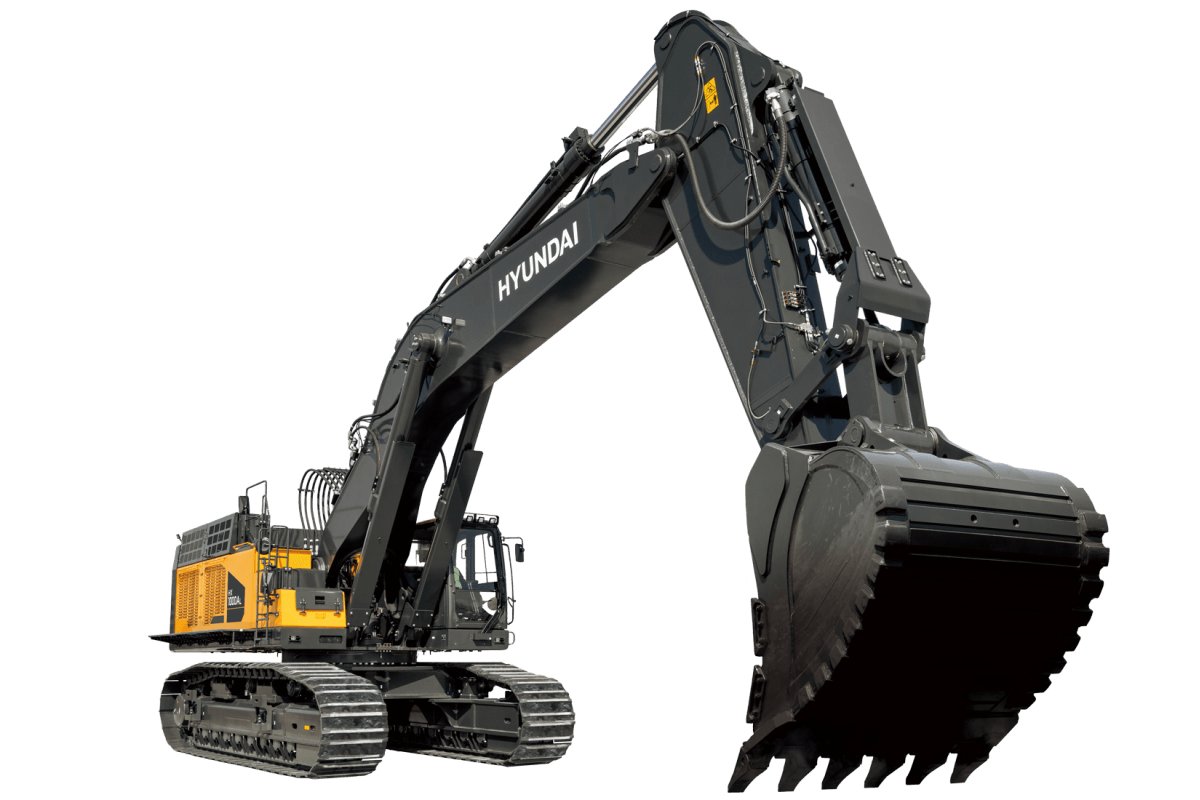

Hyundai HX1000A L

Name: Hyundai HX1000A L
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

Powered by a Perkins 2806J Stage V compliant diesel engine, the HX1000A L has new features like intelligent boom float, swing priority mode, D-Eco power hydraulic system, 8-inch touch screen LCD monitor, heated seats, newly designed foot pedals, configurable joystick shortcut button, and fleet management system, which all can help improve productivity on hard to handle jobs.

All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.

Specifications

Model

HX1000A L

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

Gross: 629 hp @ 2,000 rpm

SWING SPEED

6.1 rpm

ENGINE MODEL

Perkins 2806J

BUCKET CAPACITY

7.06 yd³

OPERATING WEIGHT

221,344 lb.

TAIL SWING RADIUS

15' 1.9"

MAX. DIGGING DEPTH

28' 10.3"

MAX. DIGGING REACH

46' 10"

ARM CROWD FORCE (ISO)

79,851 lb.

MAX TRAVEL SPEED (MPH)

2.8 mph

BUCKET BREAKOUT FORCE (ISO)

88,185 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX1000A L is designed to be economically rugged and reliable for longer up time, reduced operating cost and improved productivity. Through a combination of innovative hydraulic system enhancements, Hyundai A-Series HX excavators achieve faster cycle speeds than previous models, which increases productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

Variable Power Control

The A-Series HX excavators introduce variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.

Attachement Flow Control

The A-Series HX excavators improves pump flow rate by giving the operator independent control of two pumps. It optimizes flow rate settings according to the attachment type (10 breaker types and 10 crusher types), which is ideal for various applications.

Fuel Efficiency

HX series excavators are designed with fuel-efficient tier 4 final engines, hydraulic advancements, and electronic improvements that improve overall fuel efficiency by as much as 10% compared to the previous series.

convenience

Intelligent 8" Touchscreen Monitor

The 8-inch interactive touchscreen color display - with centralized switches - allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.

Advanced Audio System

The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.

Convenient Controls & Deluxe Operator's Seat

A-Series HX excavators feature deluxe operator's seats with air suspension, selectable heat and adjustable armrests. Seats are fully adjustable for maximum operator comfort. A convenient clustering of electronic controls and monitoring functions assist with improved operator accuracy and efficiency.

serviceability

Easy Access to DEF System

The DEF/AdBlue® compartment and access door received a new and improved design change which allows for better accessibility to both the DEF fill port, pump and filter. A more visible ¾ to FULL sight gauge was also added (replacing the previous indicator) to prevent overfilling of the tank.

Cab Air Filter Access

Cab air filter is conveniently accessible from ground level by way of a lockable door on the cab.

Upper-Structure Access

HX series excavators are equipped with large grab rails, guard rails and a proprietary anti-slip surface on the upper structure that make accessing key service areas easier and safer.

Stacked Cooler Design

A-Series HX excavators feature aluminum open-core coolers mounted in a stacked configuration to improve air flow, enhance cooling efficiency and improve serviceability.

safety

AAVM (All Around View Monitoring)

The DEF/AdBlue® compartment and access door received a new and improved design change which allows for better accessibility to both the DEF fill port, pump and filter. A more visible ¾ to FULL sight gauge was also added (replacing the previous indicator) to prevent overfilling of the tank.

Grab Rails & Guard Rails

Large upper grab rails coupled with left and right side guard rails facilitate access to the upper while reducing potential falls.

Anti-Slip Surface

Hyundai's proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.

Auto-Travel Alarm

An auto-travel alarm will sound as soon as travel is engaged forward or reverse. This standard safety feature greatly increases job site safety by alerting workers around the machine. This alarm may be deselected by a convenient switch.
