ID # 39044435

Hyundai HA45

  • Hyundai HA45
  • Hyundai HA45
  • Hyundai HA45
  • Hyundai HA45
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview

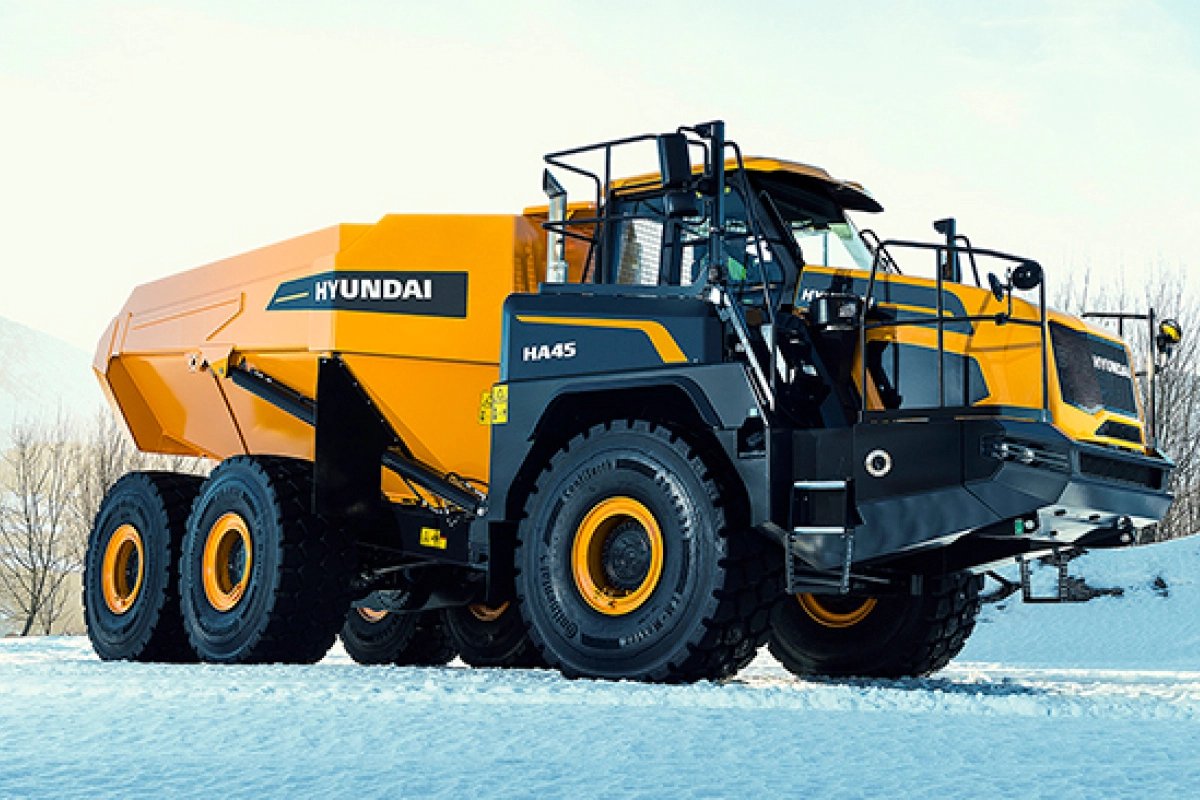

The HYUNDAI HA45 offers best-in-class ground clearance & ground bearing pressure. Combined with superior torque at low engine RPM, and superior power and traction, we offer you the best productivity. With a rated payload of 41 tons respectively, the HA45A articulated dump truck provides an ideal haul truck match for Hyundai’s larger crawler excavators and wheeled loaders. Designed primarily for high-volume earthmoving projects, highway construction, and mine and quarry operations, Hyundai’s articulated haulers provide maximum drive and traction in the worst site conditions, maintaining year-round productivity for the customer.
Specifications
Model
HA45
Category Name
Equipment
Year
2025
Manufacturer
Hyundai
NET POWER
483 hp @ 2,100 rpm / 360 kW @ 2,100 rpm
ENGINE MODEL
Scania DC13
RATED PAYLOAD
90,390 lbs / 41,000 kg
MAXIMUM TORQUE
1,750 ft. per lb. @ 1,300 rpm
HEAPED CAPACITY
34.01 yd³
OPERATING WEIGHT
66,359 lbs / 30,100 kg
MAX TRAVEL SPEED FORWARD
34.2 mph
MAX TRAVEL SPEED REVERSE
10.6 mph
reliability

Maneuverability

The unique design or rear frame, body, and front-mounted differential and transmission make the Hyundai machine the most compact ADT in its class, which results in smallest turning radius and outstanding stability.

Serviceability

Diesel and grease (for auto-lube system) filling from ground level. Easy access to filters and oil filling points. Tiltable cab with self-positioning locking mechanism.
performance

Hyundai HA45

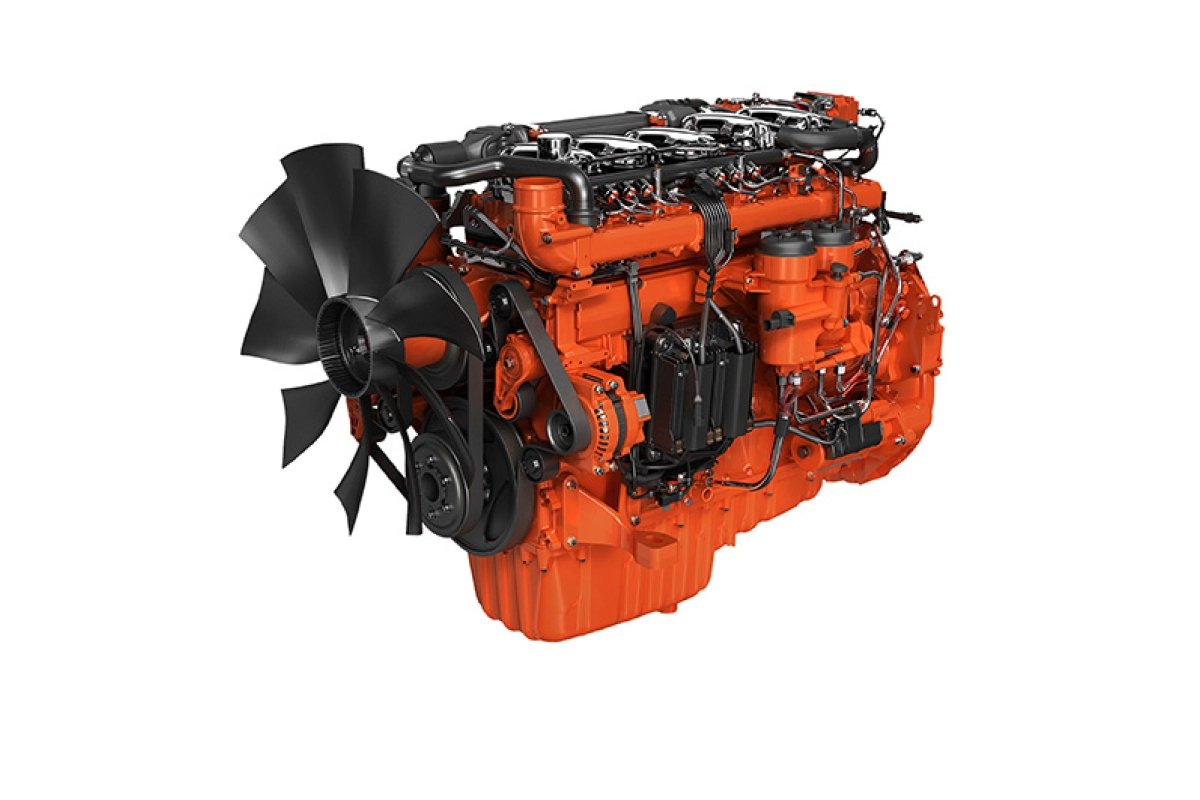

Scania Power Generation Engine

Powered by a Tier 4 Final Scania diesel engine, the HA45 uses a six-cylinder, 12.7-liter DC 13 turbocharged diesel. The power generation engines from Scania are based on a robust design with a strength-optimized cylinder block containing wet cylinder liners, which can easily be exchanged to promote reparability and fuel economy.

Hyundai HA45

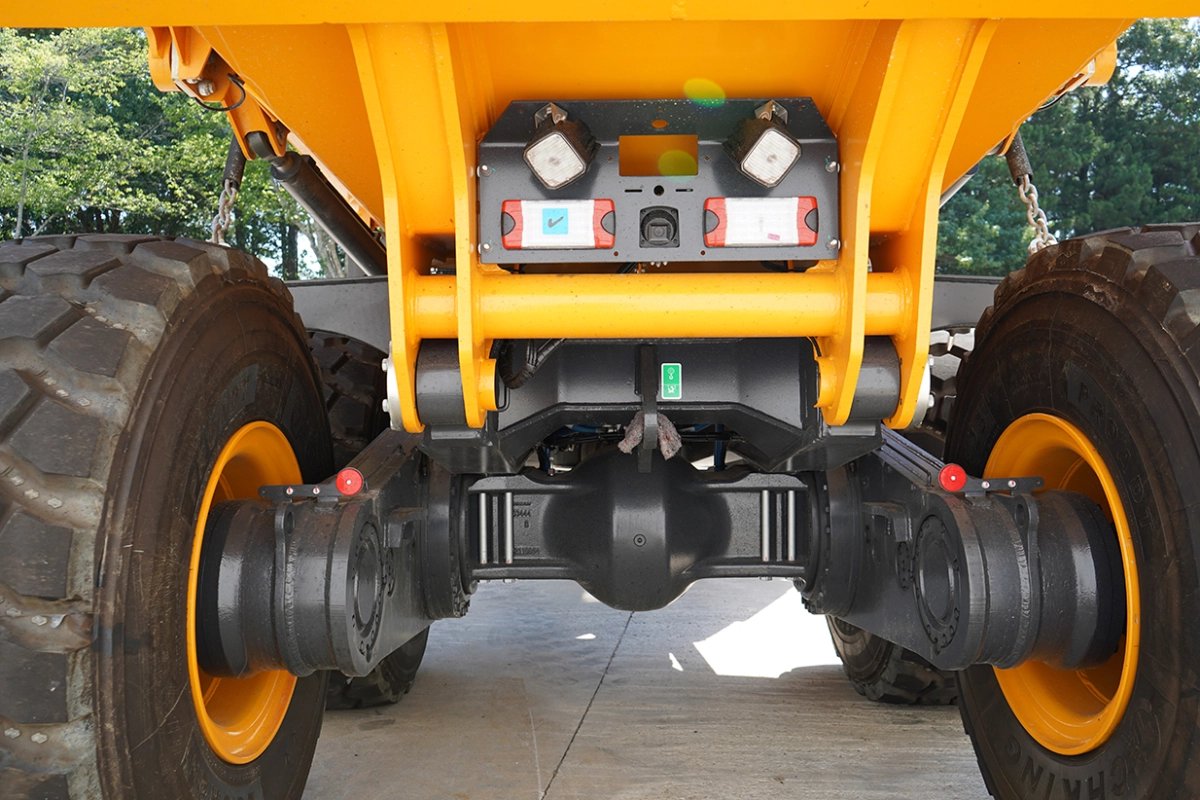

Differential and Driveline

Hyundai's articulated dump truck design has one rear differential and a simple driveline, which results in less moving parts for easier and lower-cost maintenance. Front and rear differentials are limited-slip, longitudinal differential can be manually locked by pushing 1 button.

Fuel Efficiency Hyundai HA45

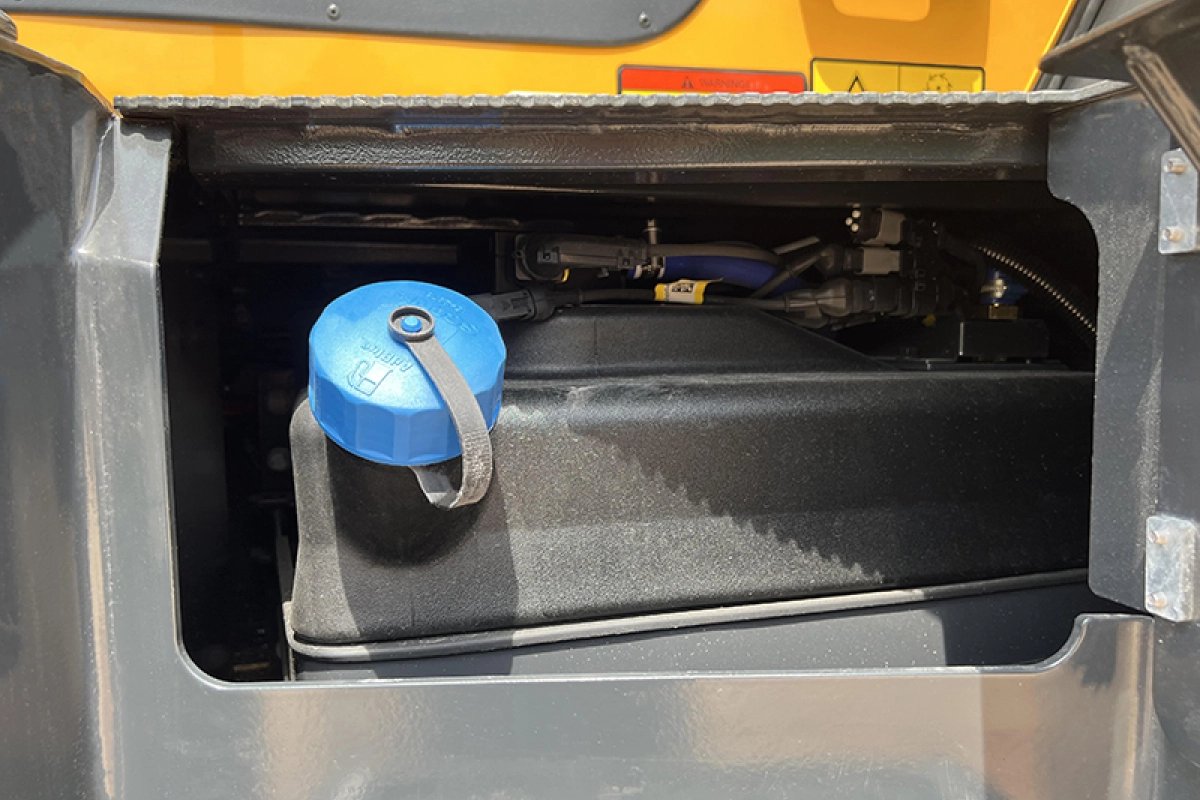

The HA45 torque converter has lock-up in all gears, reducing fuel consumption and increasing efficiency. Fuel, AdBlue diesel engine exhaust fluid and a standard auto-lube greasing system can all be easily accessed from ground level, for improved site safety.

Hyundai HA45 HiMATE Telematics

Hyundai’s Hi MATE telematic monitoring system is standard, with satellite and GSM connectivity, to reach the most inaccessible construction and mining sites across the world. This allows customers to remotely monitor productivity, fuel consumption, system warning, and maintenance status, reducing unplanned downtime and improving fleet utilization.
convenience

Hyundai HA45

Maneuverability

Unique design of rear frame, body, and front-mounted differential and transmission make the Hyundai HA45 one of the most compact ADT in its class, which results in the smallest turning radius and outstanding stability.

Hyundai HA45

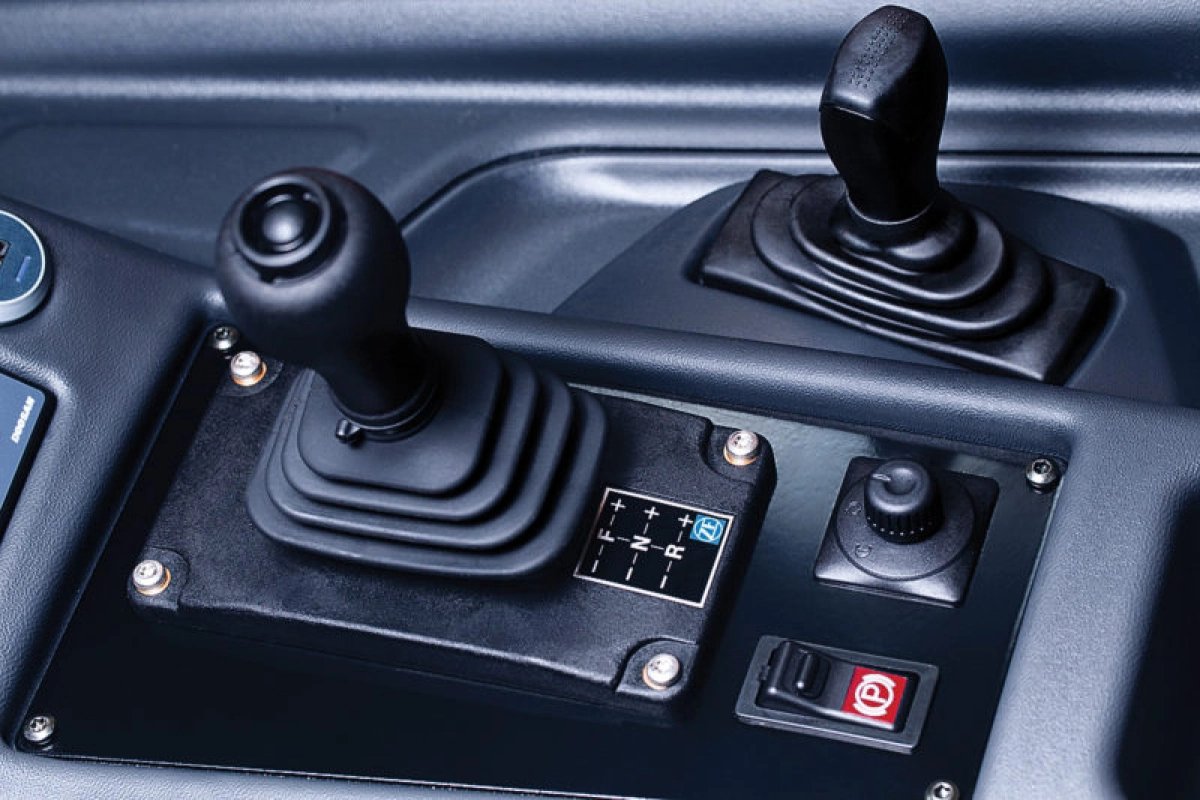

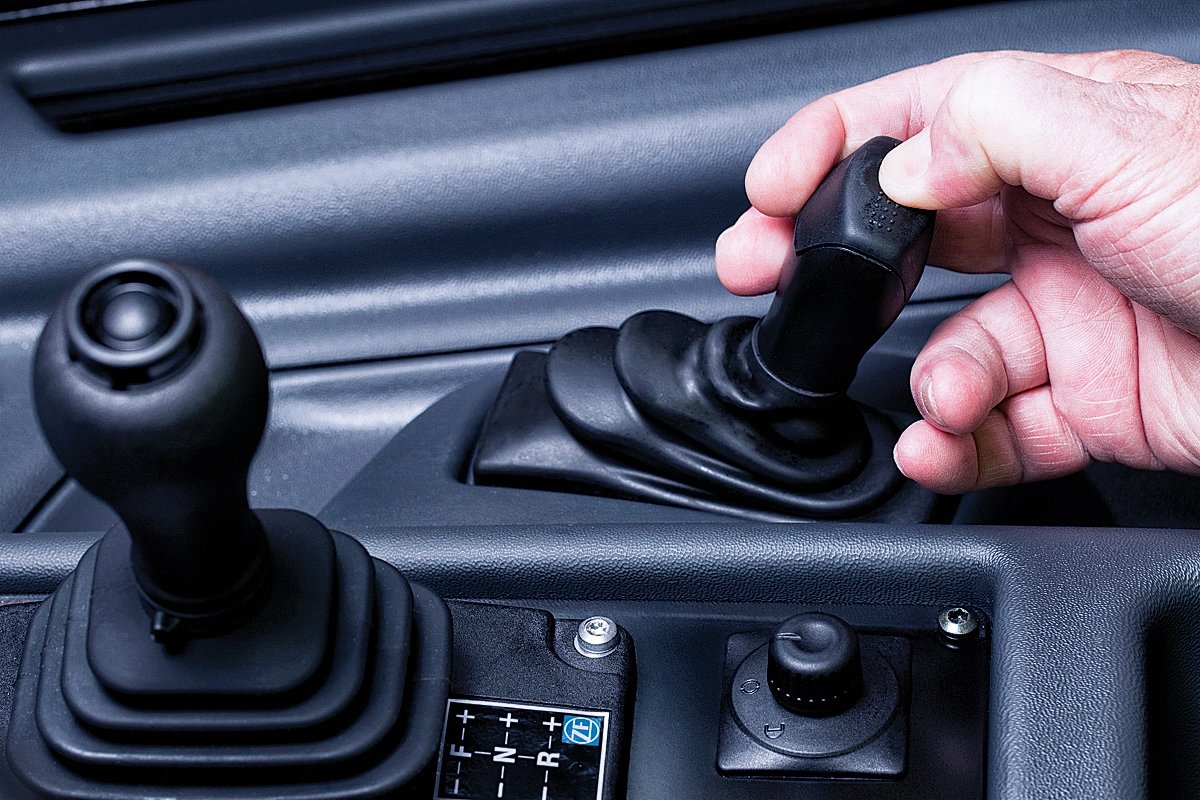

Hoist Lever with Boost Button

The HA45 has an easy to operate electronically managed body hoist lever with fingertip control. It incorporates a higher body up speed and an automatic body down feature, with soft touch, to keep you safe at all times.

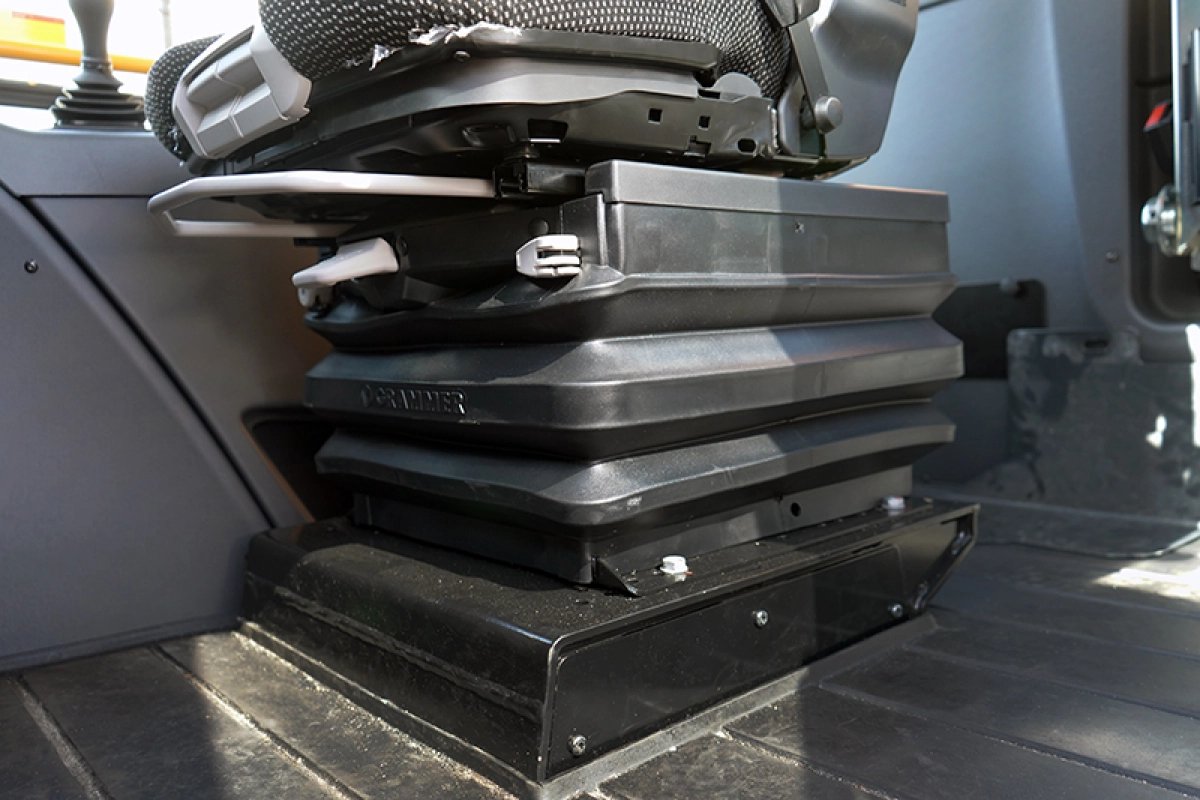

Air Ride Seats Hyundai HA45

High-quality air-suspended operator’s seat with seat belt for added comfort.

Cab Comfort​​​​​​​ Hyundai HA45

With the most spacious ROPS/FOPS cab on the market, the Hyundai ADT features an ergonomic layout to the controls, which are easily reached from the high-quality air-suspended operator’s seat.
serviceability

Hyundai HA45

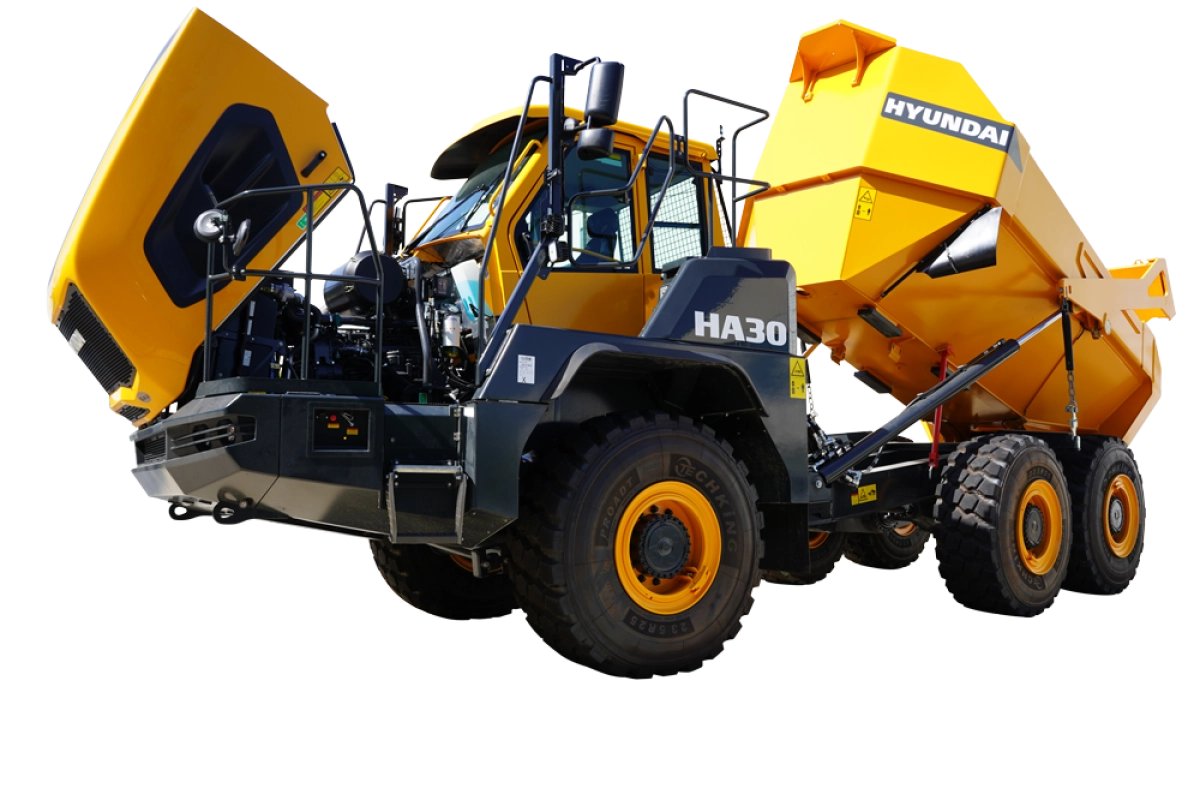

Tilting  Cab

The HA30 and HA45's tilting cab allows easy access to the transmission and hydraulic components.

Hyundai HA45

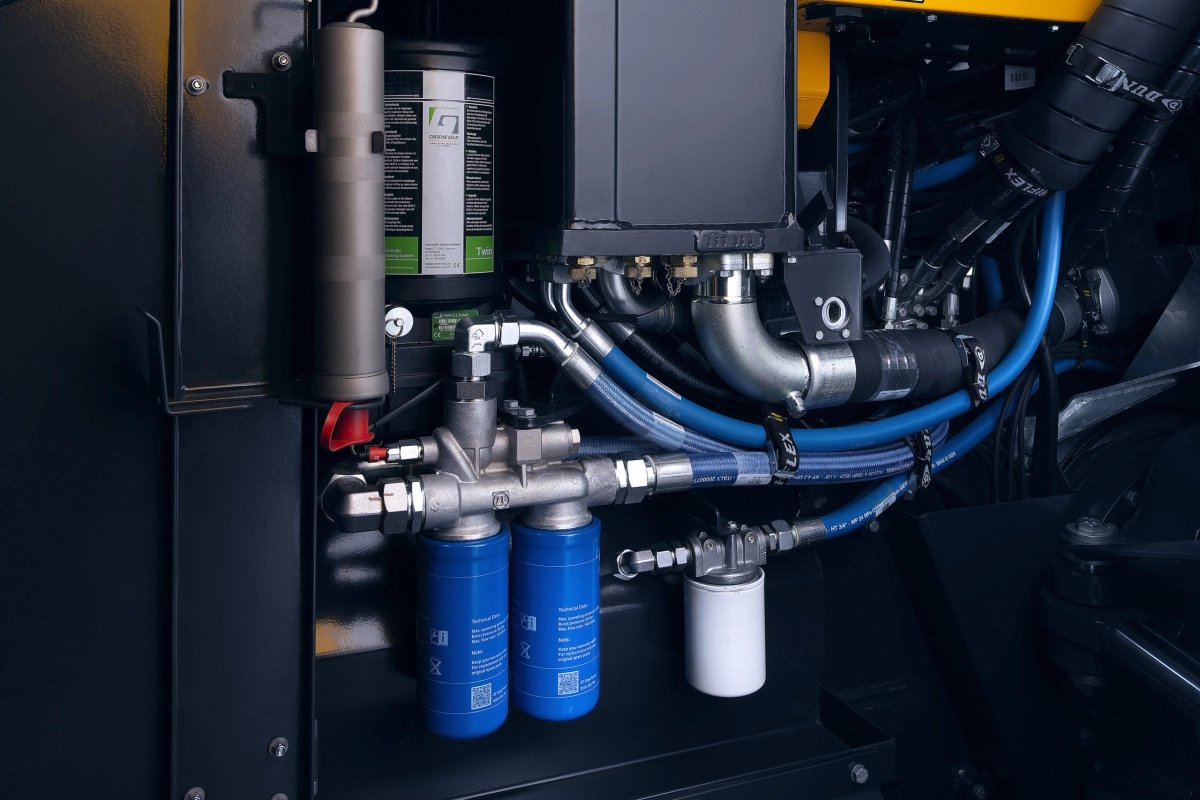

Easy Access to Auto Lube System

Hyundai articulated dump trucks have a standard automatic central lubrication system. Grease is only pumped at predetermined intervals when the truck is moving, thanks to the Vehicle Control Unit (VCU).

Hyundai HA45

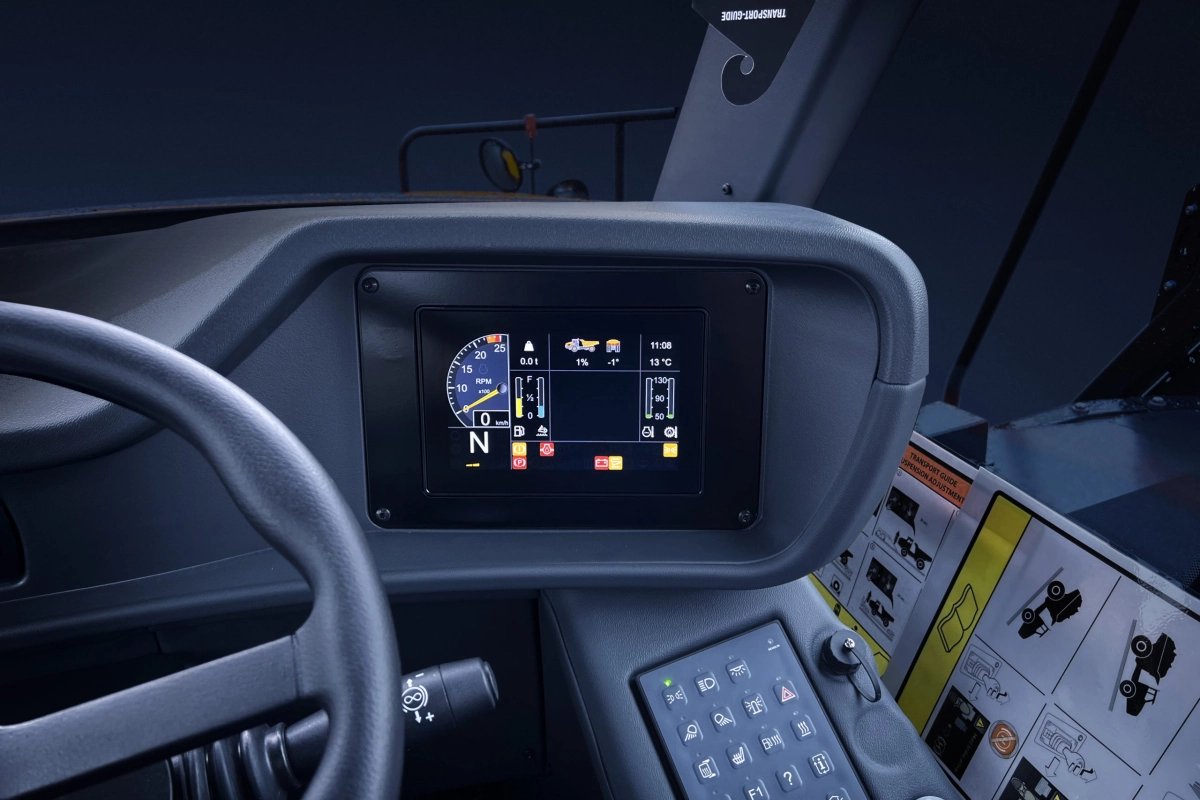

Service & Maintenance Display

The service and maintenance multifunctional display on Hyundai's articulated dump trucks makes it easy to check transmission oil level, plus hydraulic and electronic components.

Initial Maintenance Interval Hyundai HA45

Rotating beacon light can provide outstanding visual awareness of the truck on the job site.
safety

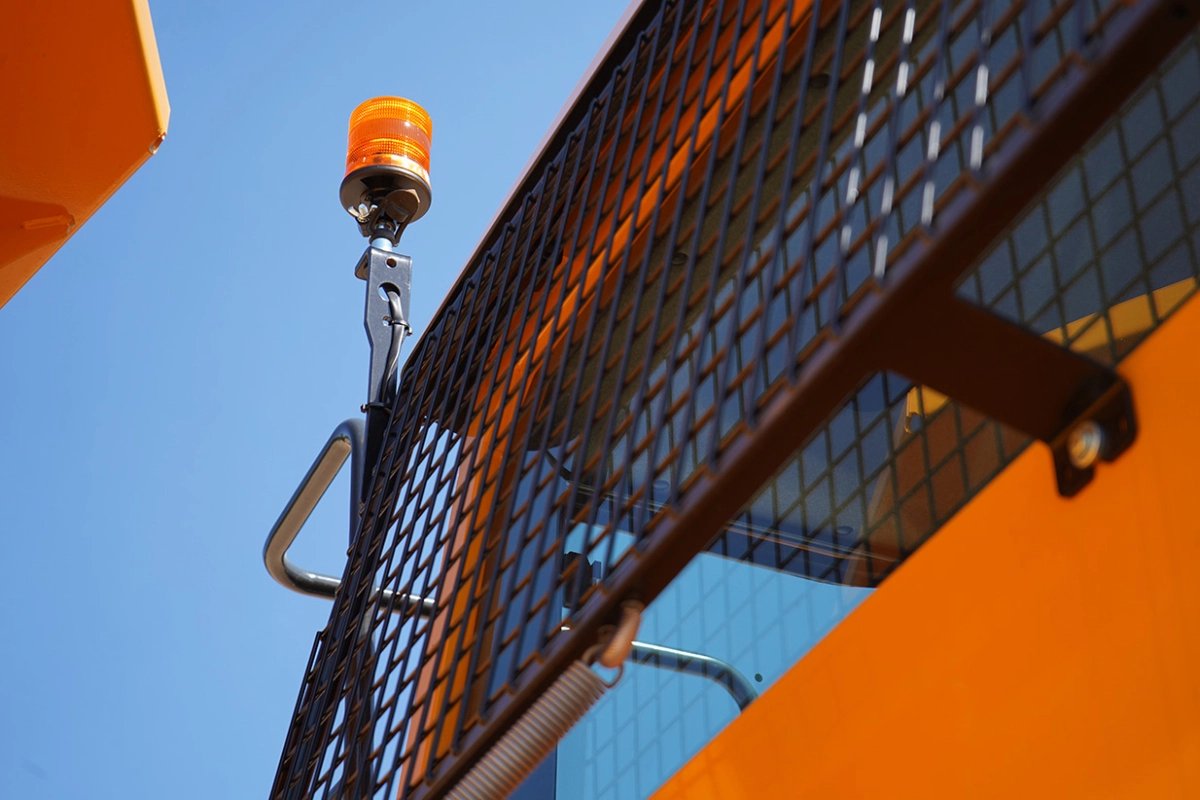

Rotating Beacon Light Hyundai HA45

Rotating beacon light can provide outstanding visual awareness of the truck on the job site.

Tandem Housing Hyundai HA45

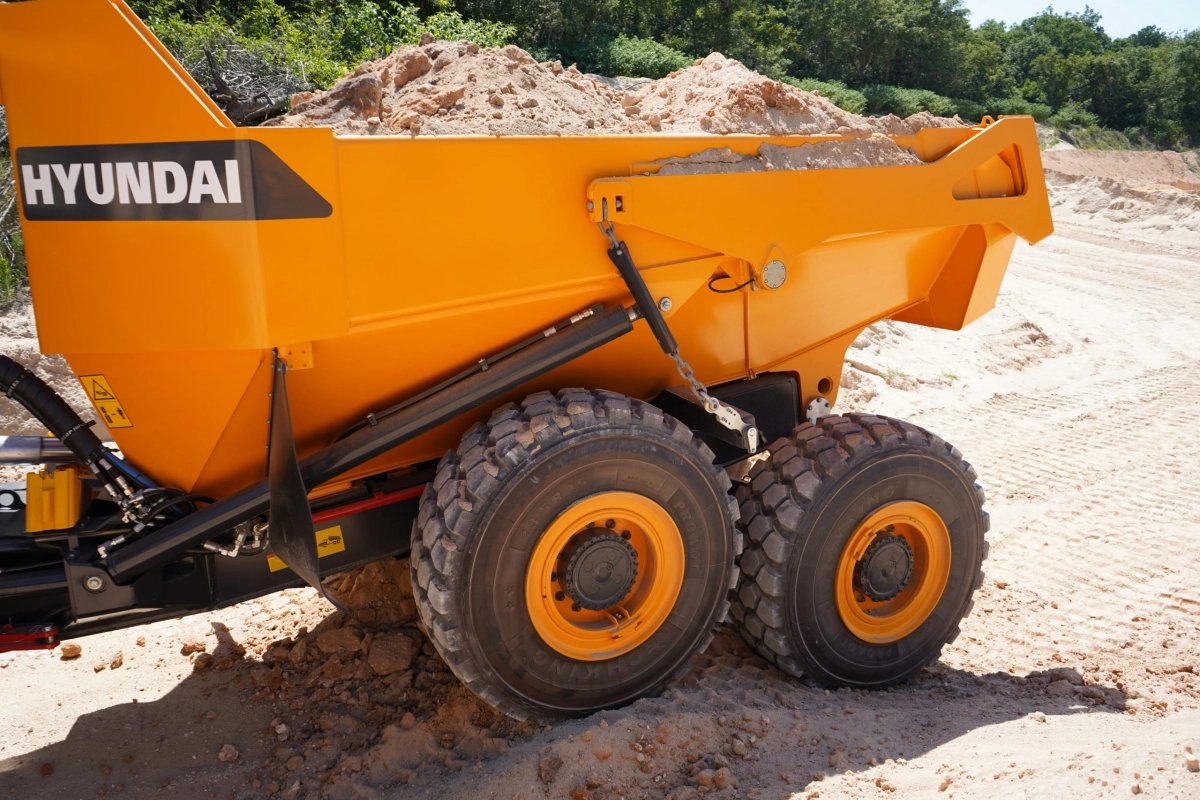

Gear-driven, free-swinging tandem housing provides equal drive to rear wheels and ensures the best possible ground contact - whatever the ground conditions.

Hyundai HA45

Handrails

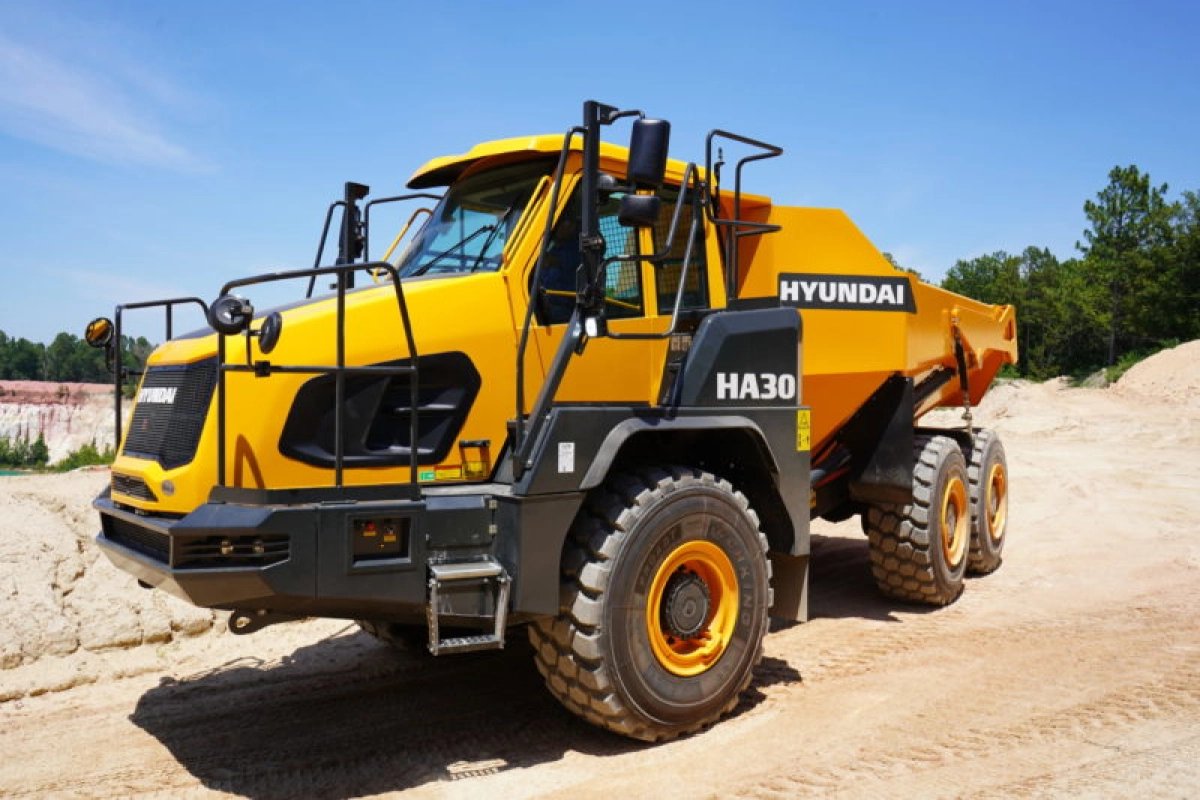

Hyundai articulated dump trucks have fenders and handrails all around the cab for superior serviceability and stability entering the cab.

Hyundai HA45

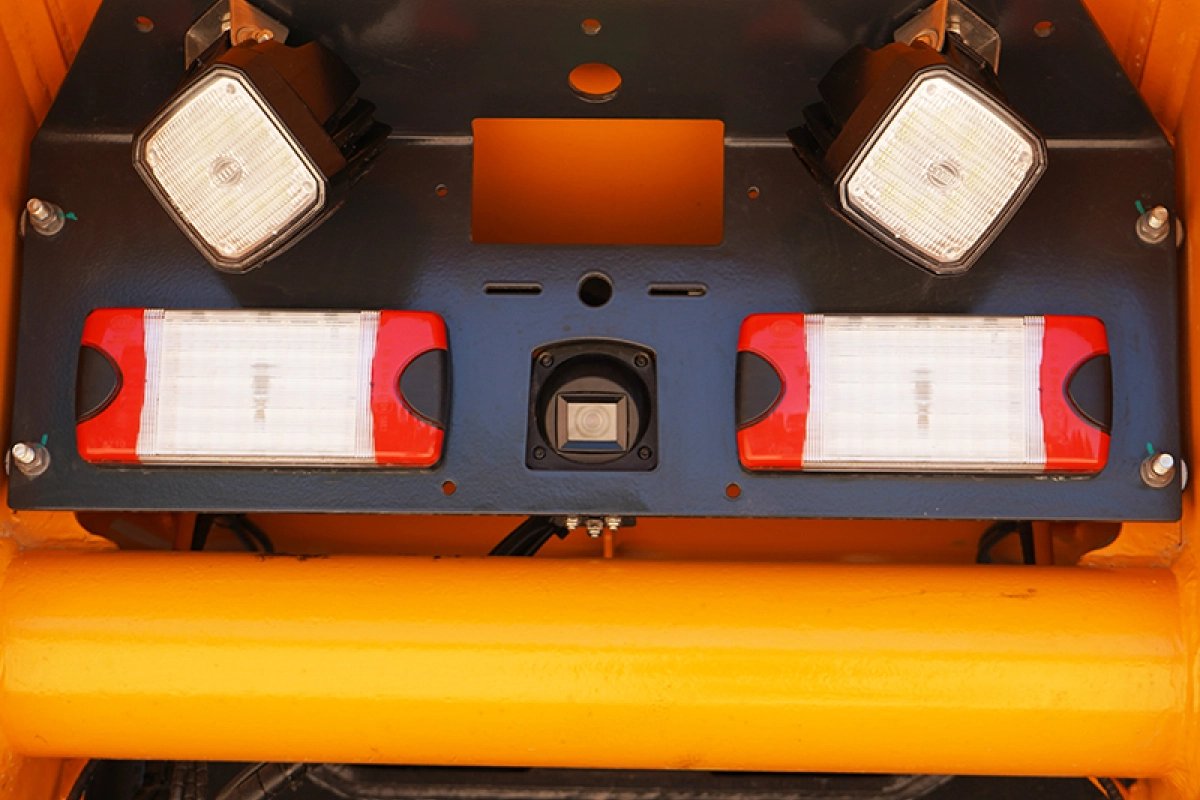

Rear-view camera

An integrated rear-view camera and large mirrors provide excellent all-round visibility, when reversing under an excavator or into the tipping area.
