Hyundai R55-9A

Name: Hyundai R55-9A
Brand: Hyundai
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Print

Operating a 9A series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs. 9A series is designed for maximum performance to keep the operator working productively.

Specifications

Model

R55-9A

Category Name

Equipment

Year

2025

Manufacturer

Hyundai

NET POWER

65.1 hp @ 2,400 rpm

SWING SPEED

9.1 rpm

ENGINE MODEL

Yanmar 4TNV98C

BUCKET CAPACITY

0.2 yd³

OPERATING WEIGHT

12,798 lb.

TAIL SWING RADIUS

5' 5"

MAX. DIGGING DEPTH

12' 6.4"

MAX. DIGGING REACH

20' 2.1"

ARM CROWD FORCE (ISO)

7,187 lb.

MAX TRAVEL SPEED (MPH)

2.6 mph

BUCKET BREAKOUT FORCE (ISO)

9,546 lb.

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R55-9A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

performance

YANMAR TIER 4 FINAL ENGINE

R55-9A fetures a tier 4 final Yanmar 4TNV98C Water-cooled, 4-cycle, 4 cylinders in line, direct injection, low emission diesel engine with 65.1 HP (48.5 kW) at 2,400 rpm.

Boom Swing

The R55-9A's boom swing function is designed for efficient work in congested residential and urban areas. The boom can be offset left or right within an operating range. Plus, increased swing torque provides enhanced operating capability on
the slope.

DOZER BLADE

All 9A series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

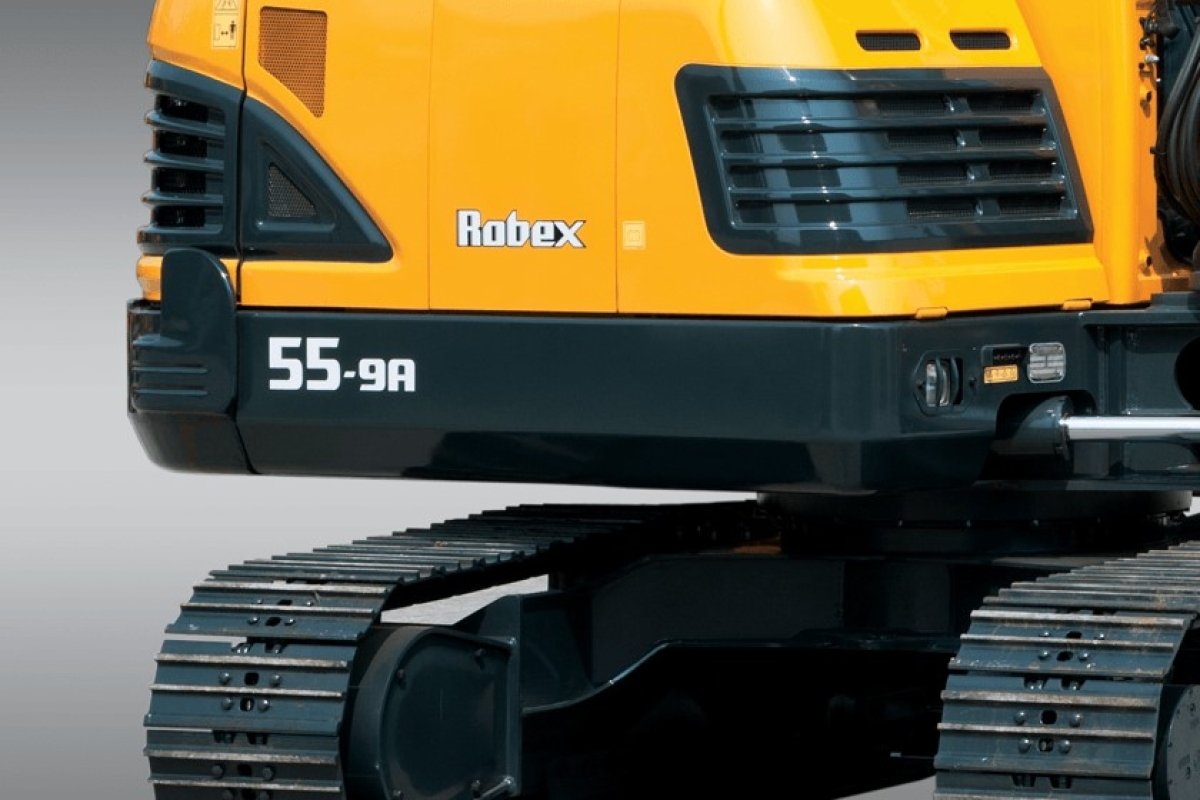

STANDARD TAIL SWING

The R55-9A is equipped with a standard tail swing which provides greater stability and lifting capacity than a traditional zero tail swing excavator. This provides additional versatility on the jobsite, especially when using auxiliary attachments.

convenience

MONITOR

The advanced new LCD cluster allows the operator to select his personal machine preferences. Button selections are provided for auto idle mode, max power mode, and travel speed. A security feature is also provided to prevent the machine from starting without a proper password.

SUSPENSION SEAT

The R55-9A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable arm rests and a spacious environment helps to minimize operator fatigue.

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

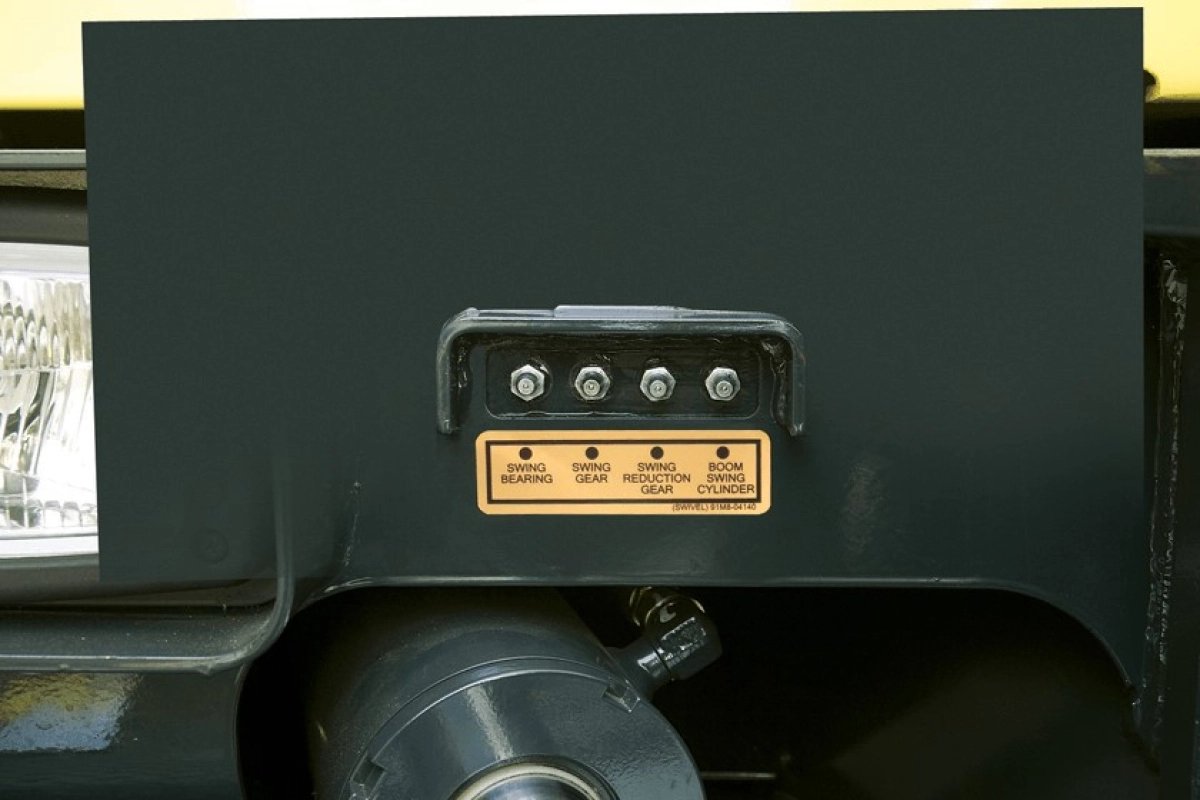

CENTRALIZED LUBRICATION

A centralized lubrication bank is available for faster, easier service and maintenance.

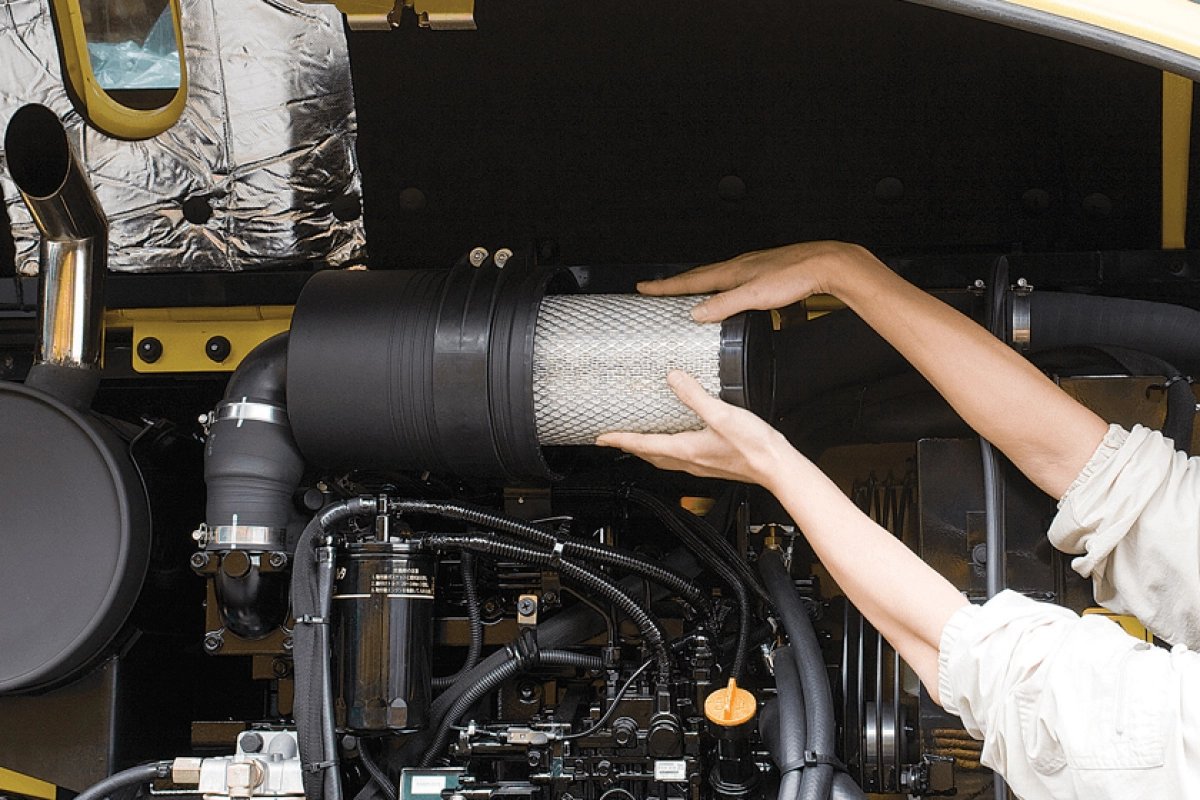

LONG-LIFE COMPONENTS

9A series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.

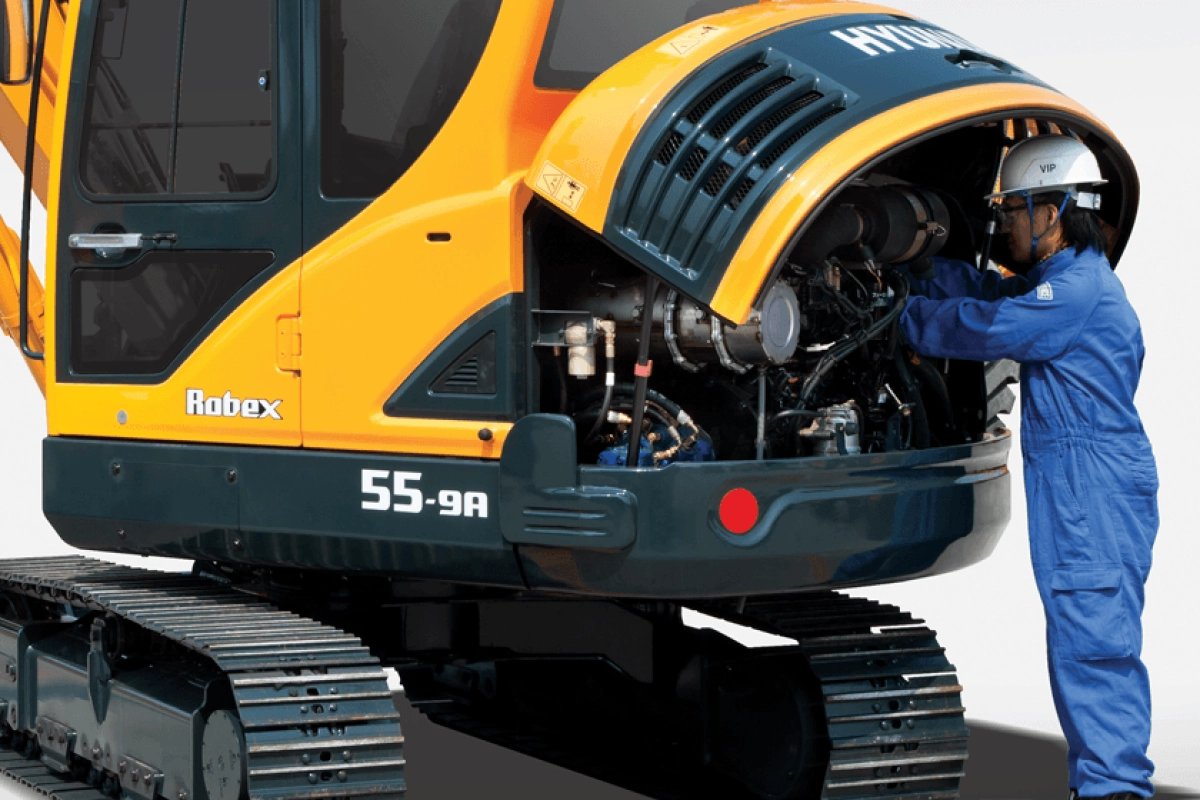

EASY ACCESS

The R55-9A was built with accessibility in mind. All covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R55-9A.

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improved clean out and durability.

safety

Dual-Lock Coupler

The R55-9A comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

REARVIEW CAMERA

Hyundai's R55-9A can come equipped with a full color, integrated optional rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.

REINFORCED CAB STRUCTURE

Hyundai's R55-9A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

Excellent Visibility

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

literature

Name	Link
FAMILY BROCHURE	Download
PRODUCT SPECS	Download

Documents

r55-9a-1041.pdf
