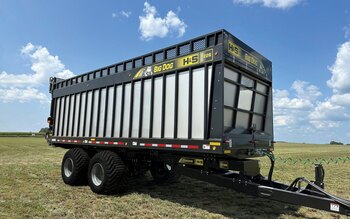

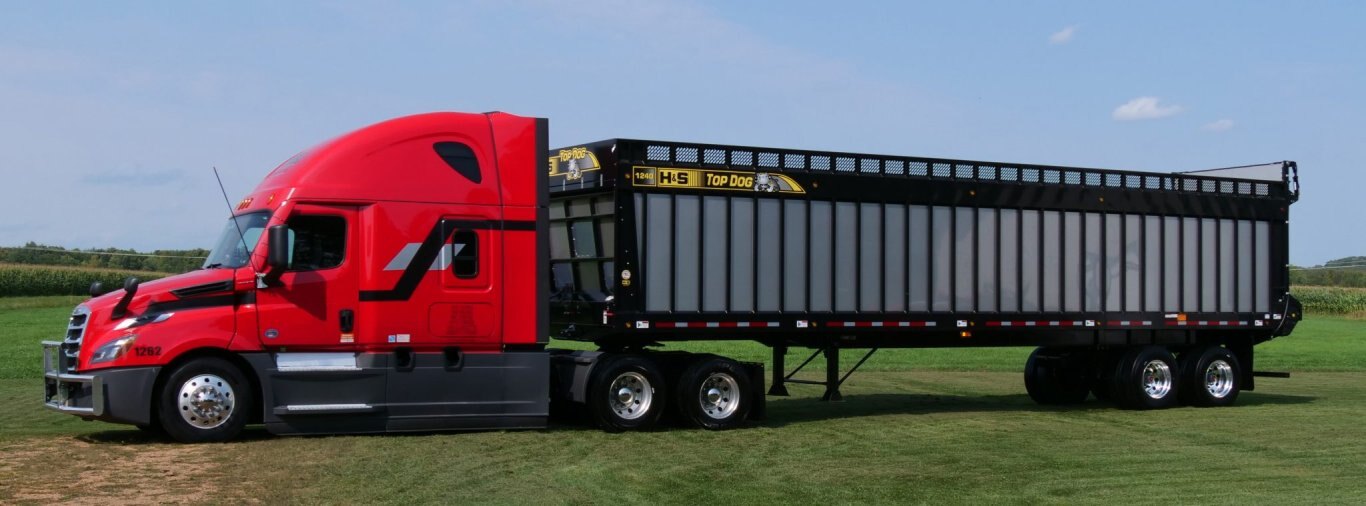

H&S TD1240 - 40' Top Dog Semi-Trailer Forage Box

Features

• The main frame is made of high-quality formed steel 10″ I-beams for the rear and continuing full length at 5″ under the 5th wheel area.
• New 25,000# spring axles w/heavy-duty spindles are standard.
• 16-gauge stainless steel sides
• The PL88C open barrel main apron pintle chain at 29,900# per strand stays flexible.
• 2″ x 1″ x 3/16″ formed apron channels are used for the apron cross bars.
• The floor is ½″ thick virgin grade solid poly.
• The  TOP DOG features 1″ steel lines to the dual hydraulic motors at the rear of the box.
• The dual hydraulic motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
• The driveshaft features MD nylon reversible-style bearings.
• Panels above the front & rear wheels act as a chain slide for the main apron and protect mud and debris from getting to the apron chain.

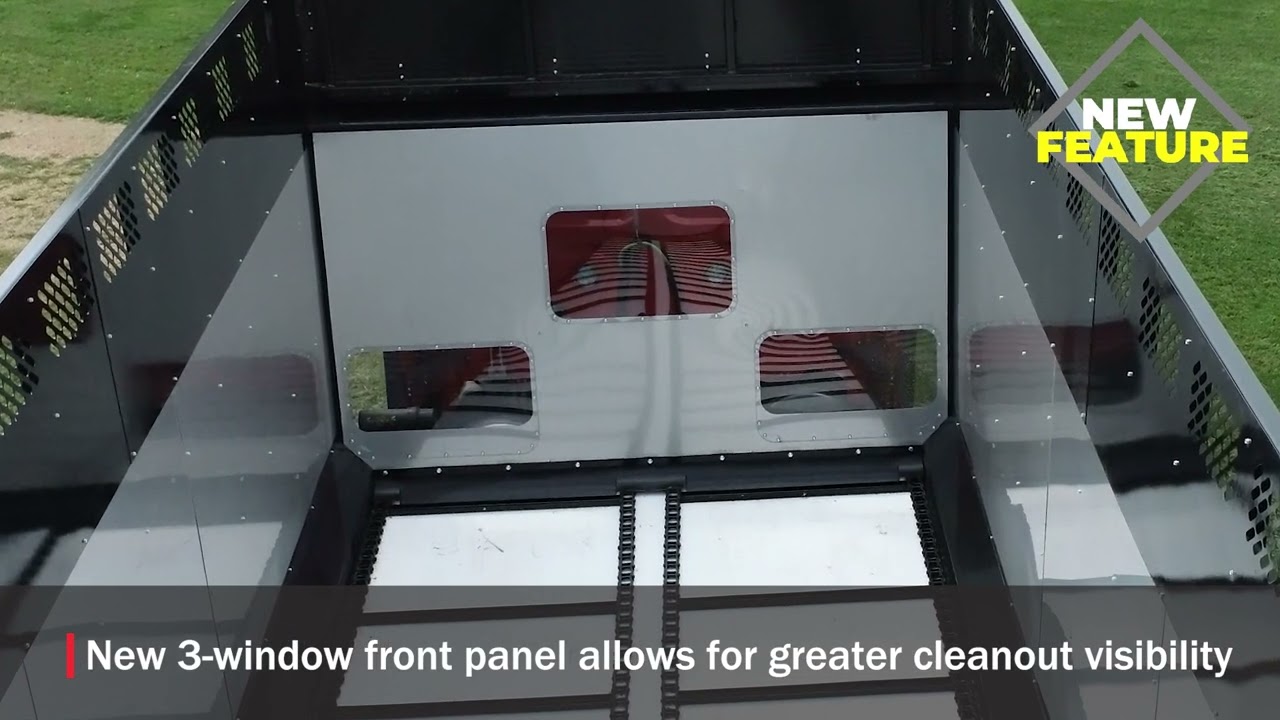

• 3 large front windows for viewing when unloading
• The idler apron shaft assembly features 6-tooth machined steel sprockets with bronze idler bushings.
• Adjustable spring-loaded tighteners on the front main apron idler shafts maintain tension on the apron during start up and operation.
• Choice of a top pivot door with gate delay system and door locks or barn doors with air closure and door locks.
• LED lighting is standard equipment
• Customer farm name – NO CHARGE!
