Overview

Why maintain another engine and hydraulic system? Utilize that farm tractor with the 4203 3 point hitch wood splitter. Made for large frame tractors, the 4203 will push 32 tons at 2900 PSI. Made for large, twisted logs, the 4203 is a 3pt hitch implement that is meant to be used, and then forgotten about until you need it next. Maintenance free due to the UHMW slider, and all fluid and power being utilized from the tractor. The internal cylinder keeps components safe from damage and the elements.

Add weld-on options like the hydraulic log lifter to help lift the big stuff or an extended stoke to make that perfect long stroke log splitter for boiler wood. Simple and powerful, this 4203 3pt log splitter is made to last, all while offering safe, simple, and efficient operation.

Specifications
Model
Log Splitter 4203
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Split-Fire
Pump
Tractor Pump Displacement
Frame
7" x 7" steel tube
Weight
430 lbs
Tonnage
32 tons @ 2900 psi
Bed Width
16"
Reservoir
Tractor
Bed Height
3 Pt. Hitch Raise/Lower
Cycle Speed
9 sec. @ 20 gpm | 15 sec. @ 12 gpm | 23 sec. @ 8 gpm
Knife Height
12"
Power Source
3pt. Hitch
Cylinder Size
4½” x 24"
Overall Width
34”
Stroke Length
24"
Hydraulic Flow
4 gpm - 12 gpm
Overall Height
18”
Overall Length
73"
Quick Connects
Not included
options

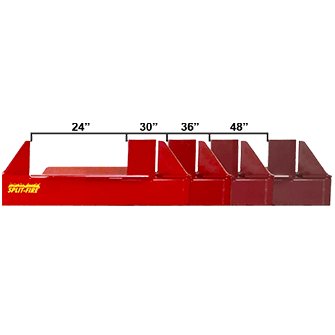

Extended Stroke (30”, 36” & 48”)

Split Fire Log Splitter 4203

Log Table

Split Fire Log Splitter 4203

Hydraulic Log Lifter

Split Fire Log Splitter 4203

3 Point Hitch Leg Kit

Split Fire Log Splitter 4203

Class 2 Hitch

Split Fire Log Splitter 4203

Closed Center 3 Point Log Lifter Valve

Split Fire Log Splitter 4203
