ID # 33459052
Landoll SOIL BUILDER
Call for Price
Overview
Specifications
features
specifications
Documents
ADVANCED SOLUTIONS TO HIGH RESIDUE PROBLEMS
The Brillion Soil Builder is best described as an alternative tillage tool to the moldboard plow. Introduced in the early 1970s, these machines and their ability for good, economical primary tillage have stood the test of time. |
WHY IT WORKS

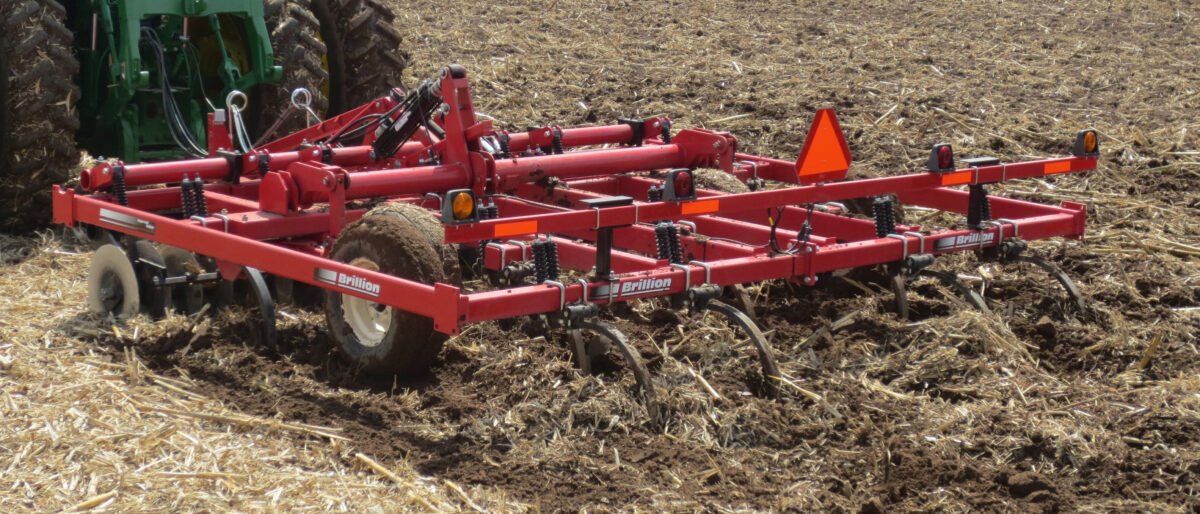

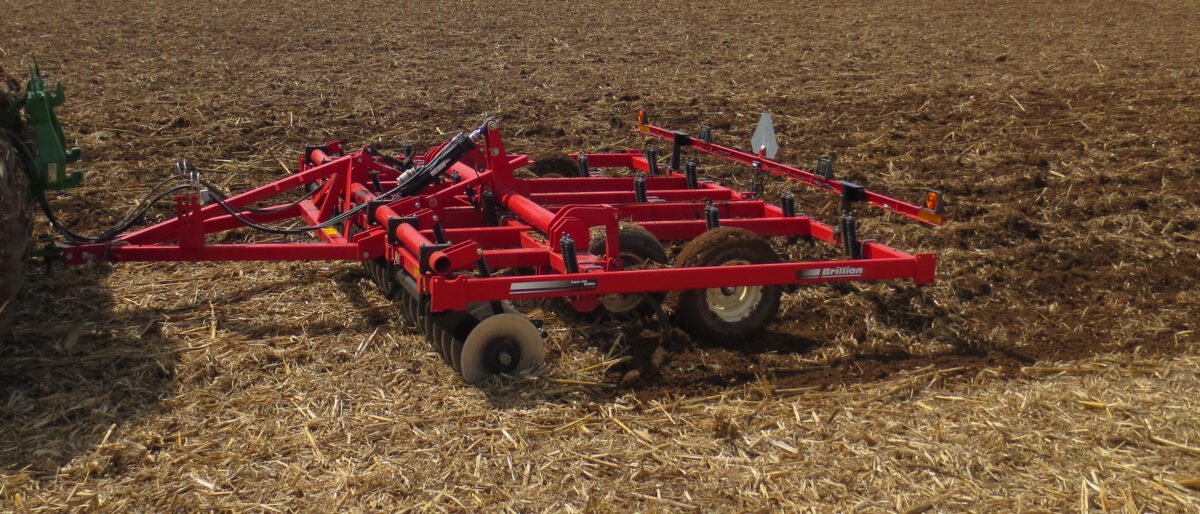

Simple by design, basic straight cut coulters on a weighted gang in the front of the unit cut and size the residue. The chisel shanks, spaced on 15″ centers and equipped with twisted chisel points, engage the soil and mix and blend the sized residue into an acceptable medium for preventing erosion and conserving moisture. These tools will leave the surface ridged to allow more soil surface available to the sun for better dry down and warm up before the next planting season. |
THE BOTTOM LINE
The consistent performance of the Brillion Soil Builder has allowed its basic conservation tillage concept to stand the test of time. Cutting, sizing and blending the residue into the growth environment while addressing compaction issues, all define the Soil Builder’s objective. The finish of the field and the residue left on the surface provide for optimal erosion control with a single pass. |
|
BRILLION CD MODELS
The CD models are the original Soil Builders offered by Brillion. A single, manually adjustable gang of coulters with 7 1/2″ spacing in the front of the machine starts the tillage process. Two ranks of chisel shanks are supported on a weighted frame that allows for 15″ shank spacing. The shank and coulter spacing allow one coulter to lead each shank and have one coulter in between each shank for optimum soil breakout and residue flow. The CD Series is available in 5 and 7 shank models. These machines fit very well with 100 to 150 HP tractors in most conditions. |
|
BRILLION HSB MODELS

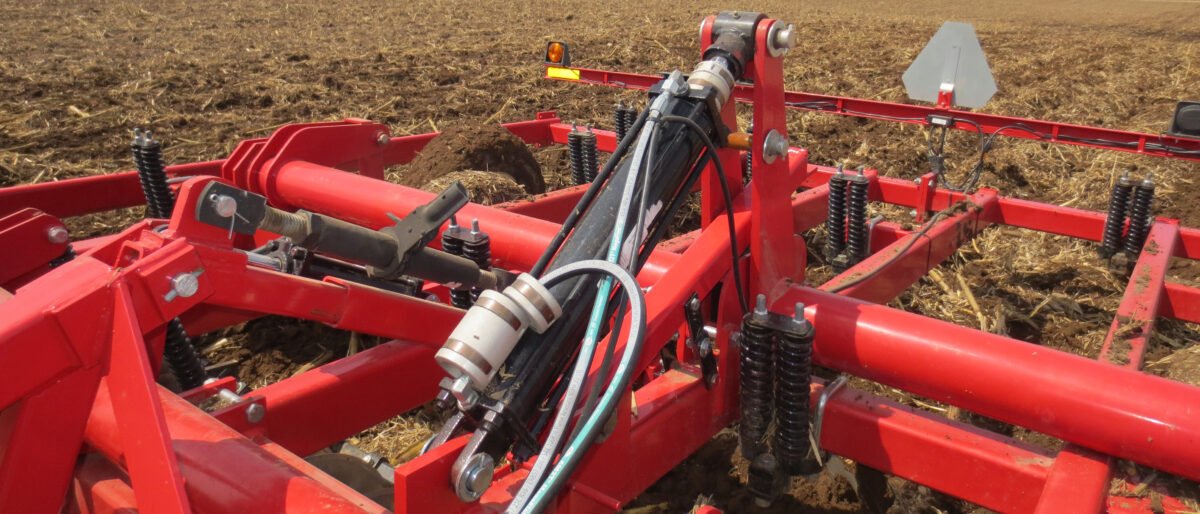

The HSB Series is the next generation of Soil Builders. Many of the proven components and features from the CD Series have been incorporated into the HSB models. The coulter gangs on this series are hydraulically controlled. The chisel shanks are mounted to a 3-rank frame for added residue capacity. The lift axle is controlled with a single depth stop cylinder. Walking tandems are available on the larger units to provide for a smooth ride and more uniform depth control at higher operating speeds. The hitch is longer to accommodate larger tractors with dual tires. The HSB Series is available in 7, 9, 11, and 13 shank models; horsepower requirements are 15 to 20 HP per shank. |
Model
Soil Builder
Category Name
Agriculture
Year
2024
Sale Type
New
Manufacturer
Landoll
Features
| 5 to 13 Shank Rigid Frame Models Available Flip-Flop Style Hitch A-Frame Drawbar Ratchet Jack Frame Leveling Single Point Depth Control 4″ x 4″ Square Tube Weighted Frame 29″ Under Frame Clearance Walking Tandem Axles Provide for a Smooth Ride (Model Dependent) 20″ Coulter Blades Spaced at 7.5″ |
| 7.5″ Solid Cast Iron Spools Provide Extra Weight to Cut Through the Toughest Residue 1.5″ Square Gang Bolt Prevents Coulters from Sliding in Wet Conditions Hydraulic Depth Control for Coulters (Model Dependent) Dual Nested Spring Shanks Trip to to 5.5″ Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs. Maximum Operating Depth is 10″ One Piece 4″ Twisted Shovels are Standard Equipment LED Safety Warning Lights and SMV Emblem are Standard Equipment Powder Coat Paint |
Model
Soil Builder
Category Name
Agriculture
Year
2024
Sale Type
New
Manufacturer
Landoll
Quantity
0
