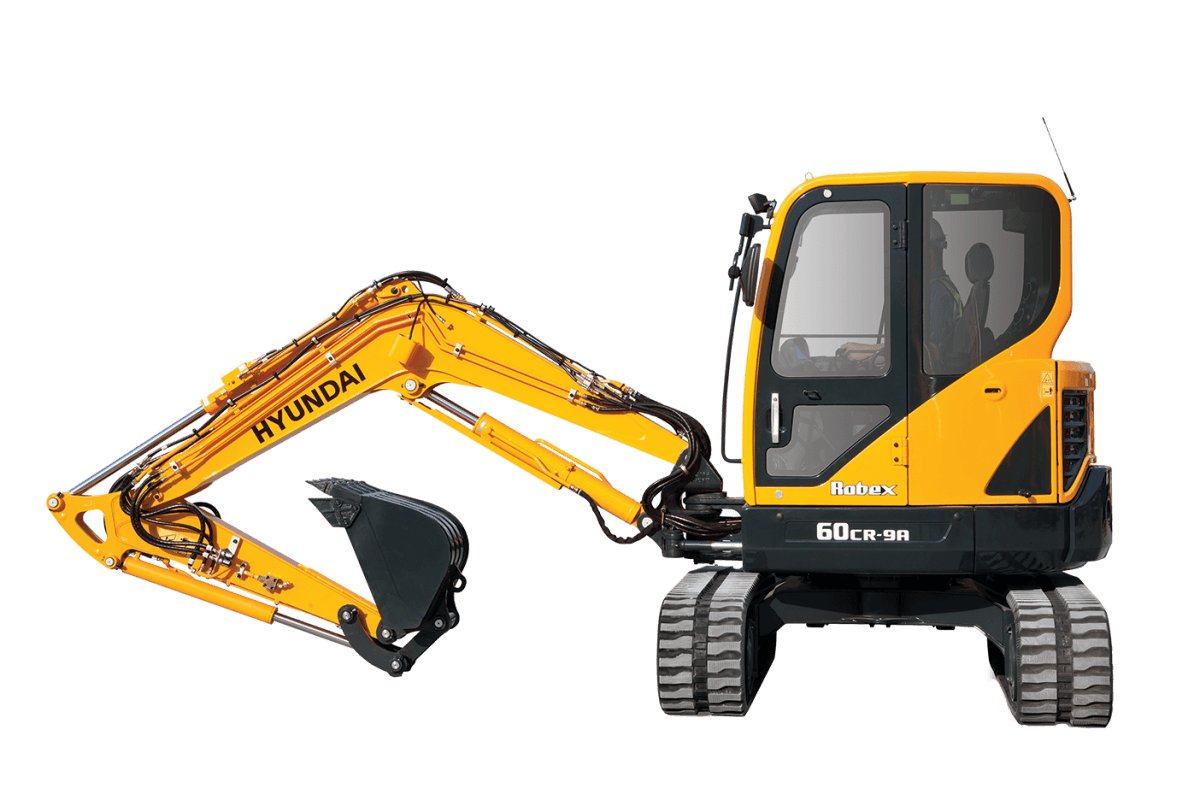

Hyundai R60CR-9A
|
|
|
Specifications
|
Model |
R60CR-9A
|
Category Name |
Equipment
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
Hyundai
|
NET POWER |
63 hp @ 2,200 rpm
|
|
SWING SPEED |
8.8 rpm
|
ENGINE MODEL |

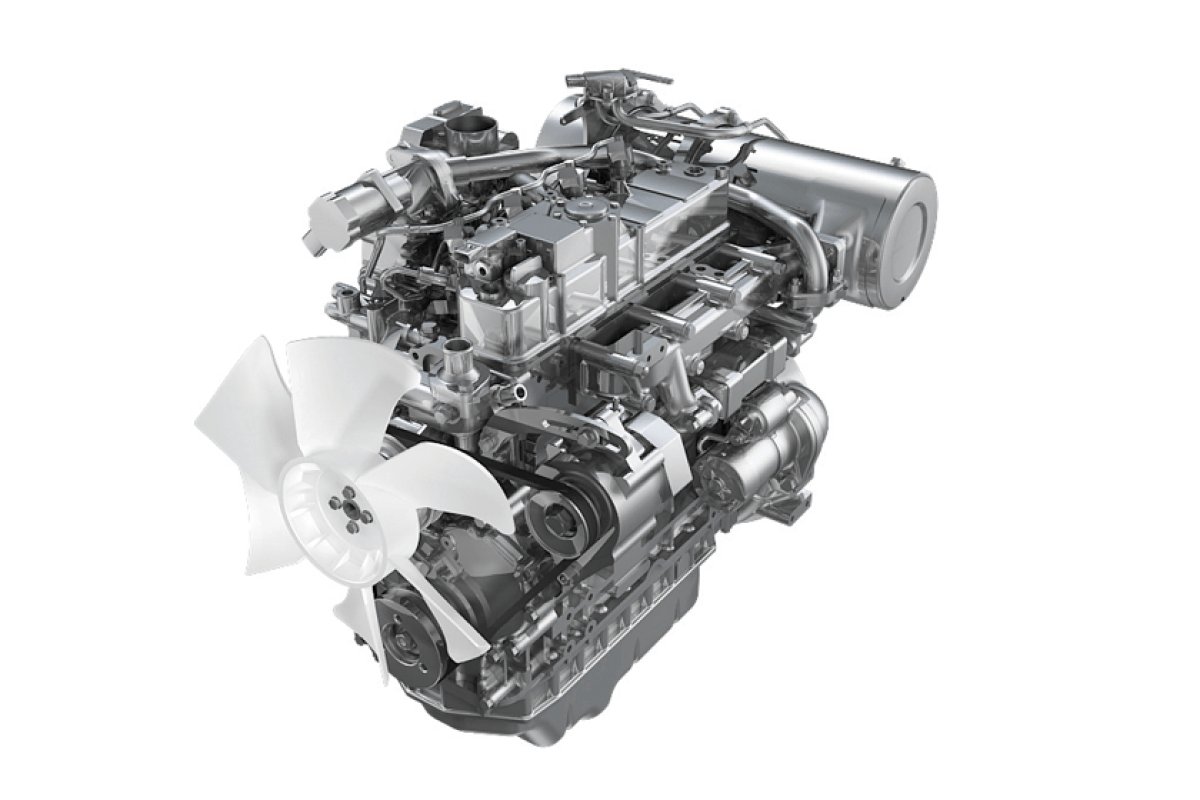

Yanmar 4TNV98C
|
BUCKET CAPACITY |
0.24 yd³
|
|
OPERATING WEIGHT |
13,360 lb.
|
TAIL SWING RADIUS |
3' 6.5"
|
MAX. DIGGING DEPTH |
11' 8.6"
|
|
MAX. DIGGING REACH |
20' 2.1"
|
ARM CROWD FORCE (ISO) |
5,952 lb.
|
MAX TRAVEL SPEED (MPH) |
2.5 mph
|
|
BUCKET BREAKOUT FORCE (ISO) |
9,193 lb.
|
Price |
Contact for price CAD
|
|
|
|
|
Description
|
Hyundai 9A series compact excavators bring big power to small spaces. Each model features a Tier 4 Final engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of these compact machines, along with their ability to work productively in confined spaces. |
|
|
RELIABILITY AND DURABILITY
|
RELIABILITY_&_DURABILITY
 RELIABILITY
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R60CR-9A is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
|
DURABILITY
Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
|
|
|
PERFORMANCE
|
|
|
|
CONVENIENCE
|
CONVENIENCE

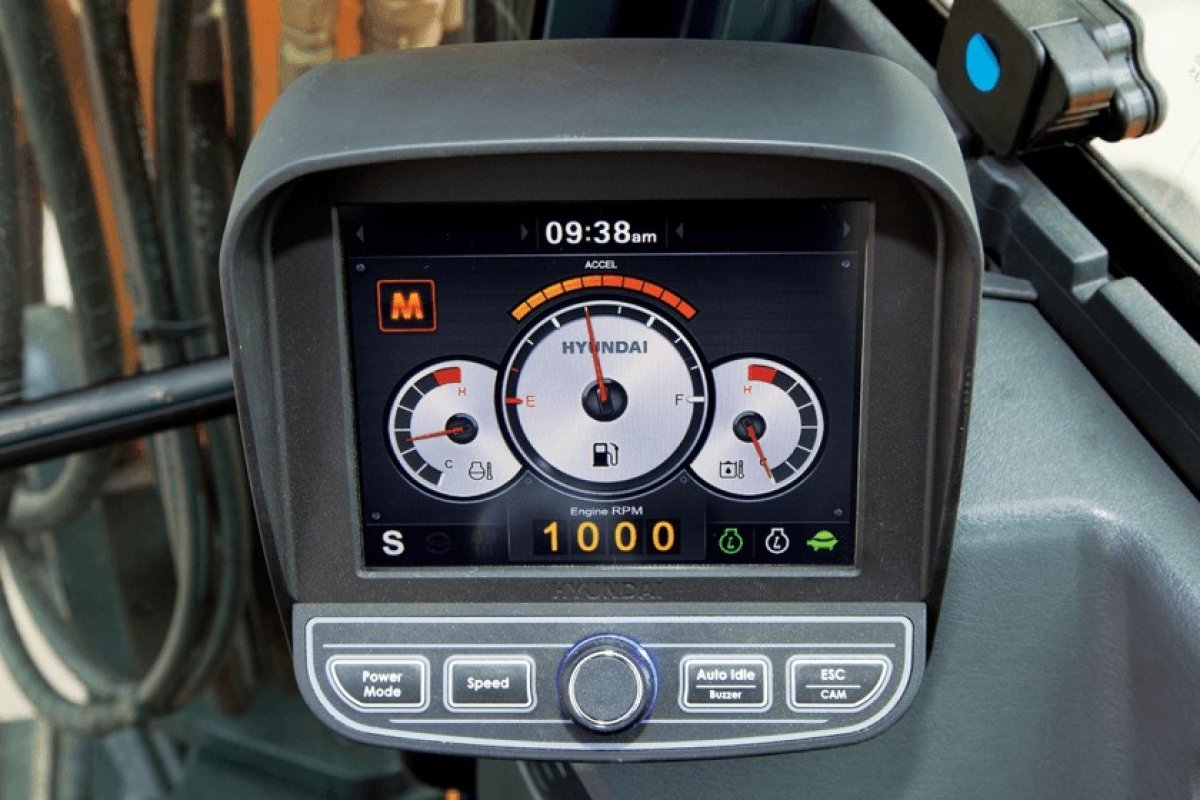

MONITOR
The advanced new LED cluster allows the operator to select his personal machine preferences. Button selections are provided for auto idle mode, max power mode, and travel speed. A security feature is also provided to prevent the machine from starting without a proper password.
|

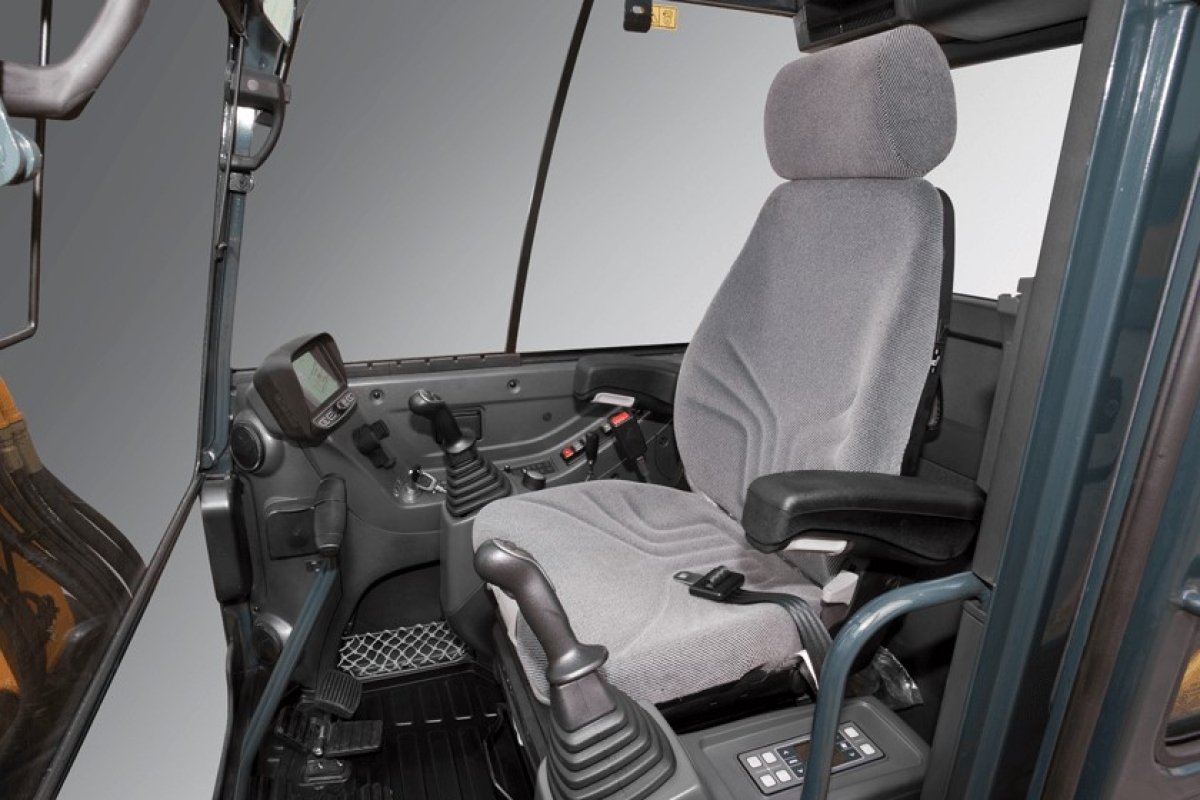

 SUSPENSION SEAT
The R60CR-9A operator's cab is designed for a comfortable operating experience. An ergonomically designed suspension seat, adjustable arm rests and a spacious environment helps to minimize operator fatigue.
|
ERGONOMIC CONTROLS & SWITCHES

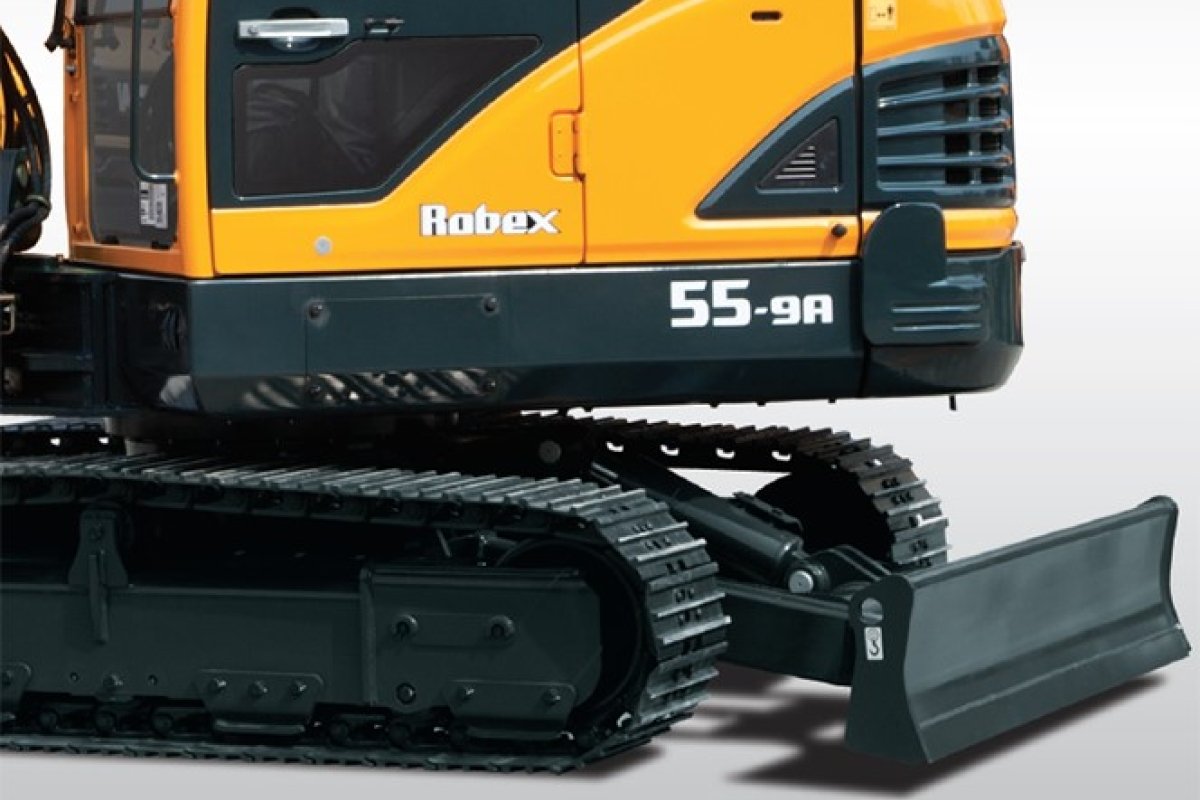

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.
|

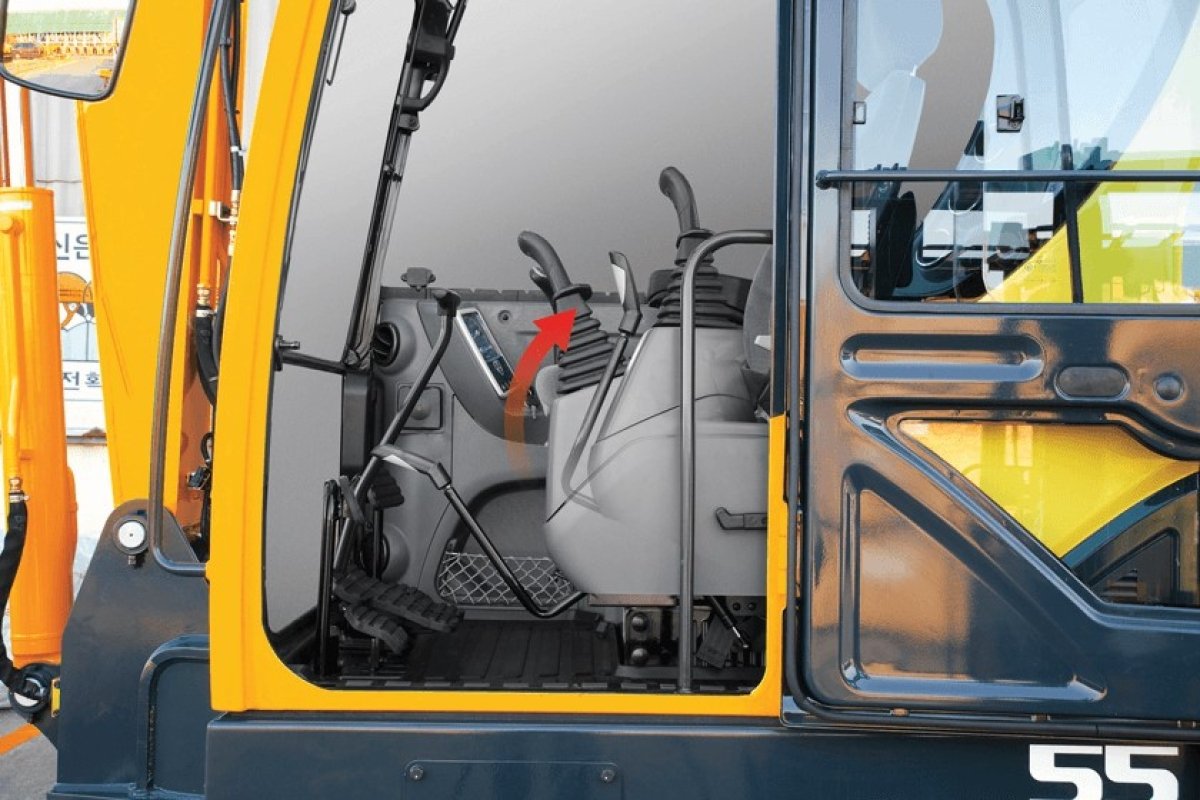

CAB ENTRY
A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
|
|
|
SERVICEABILITY
|
SERVICEABILITY

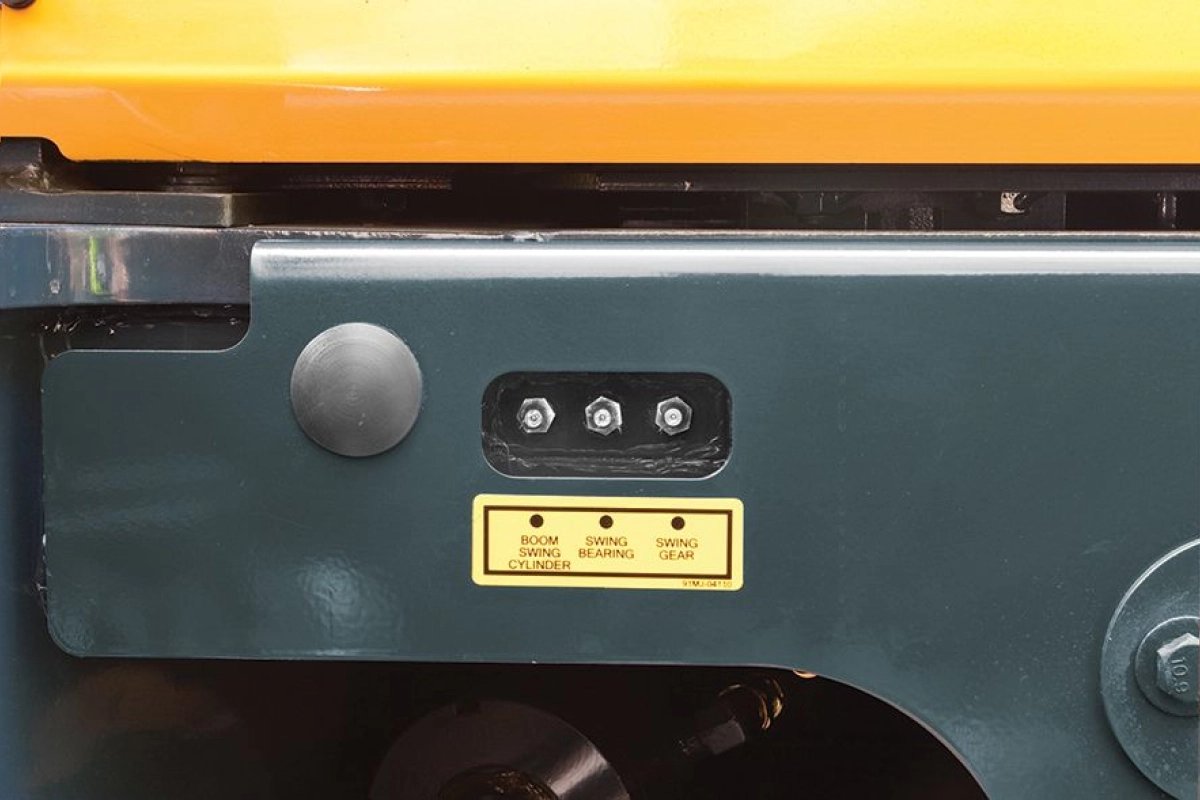

CENTRALIZED LUBRICATION
A centralized lubrication bank is available for faster, easier service and maintenance.
|
LONG-LIFE COMPONENTS
9A series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.
|

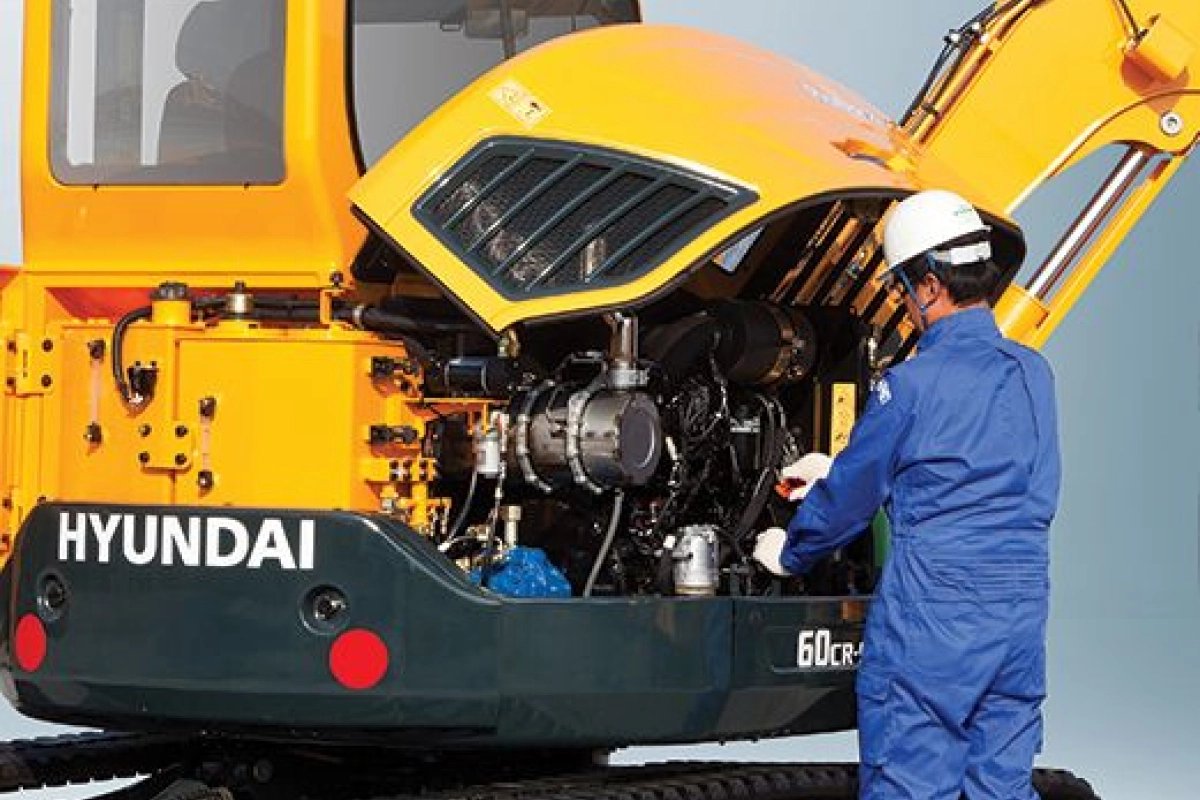

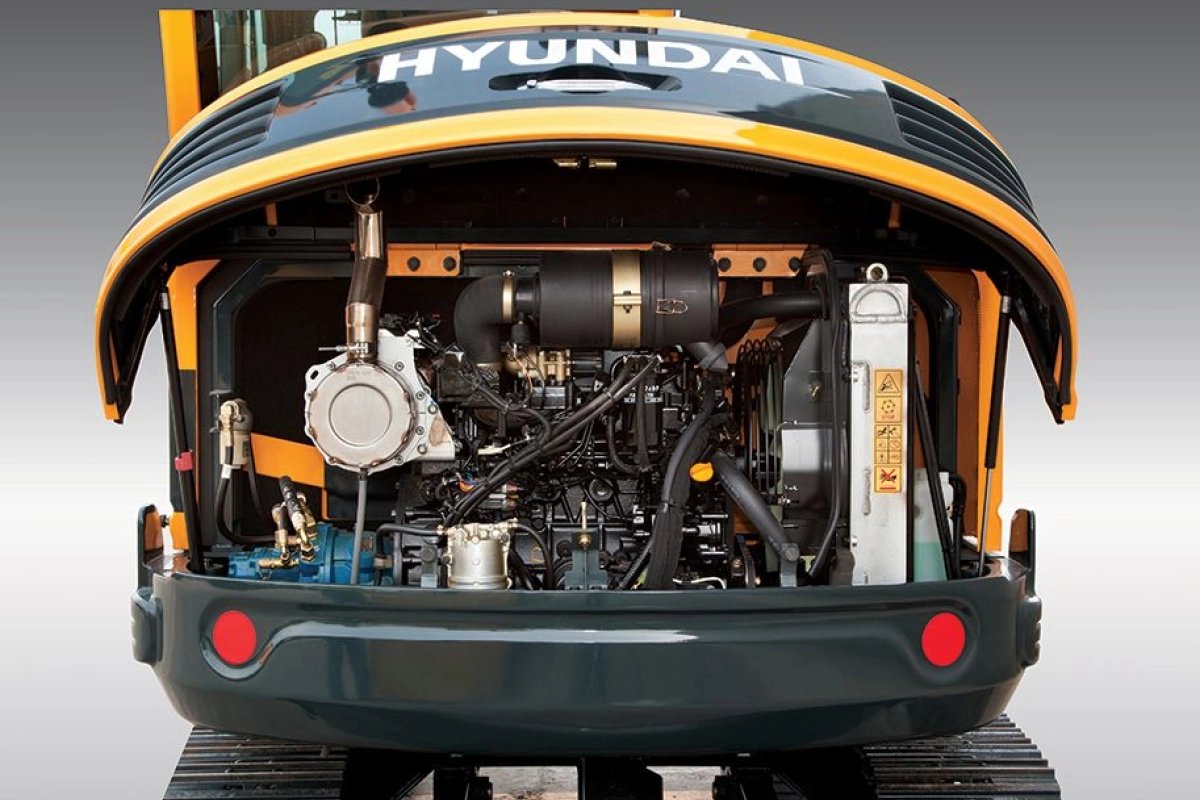

EASY ACCESS

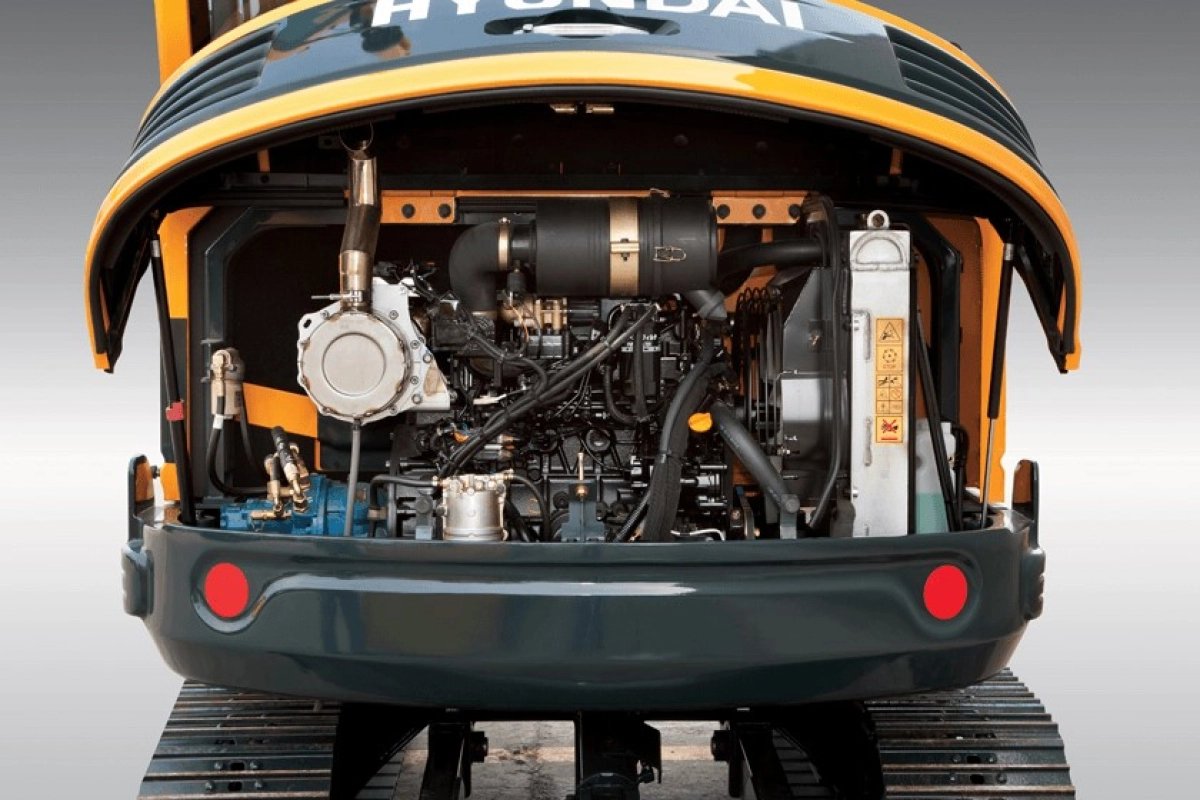

A newly designed full-open type engine hood makes service more convenient on the R60CR-9A.
|
DURABLE COOLER
Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improved clean out and durability.
|
|
|
SAFETY
|
SAFETY

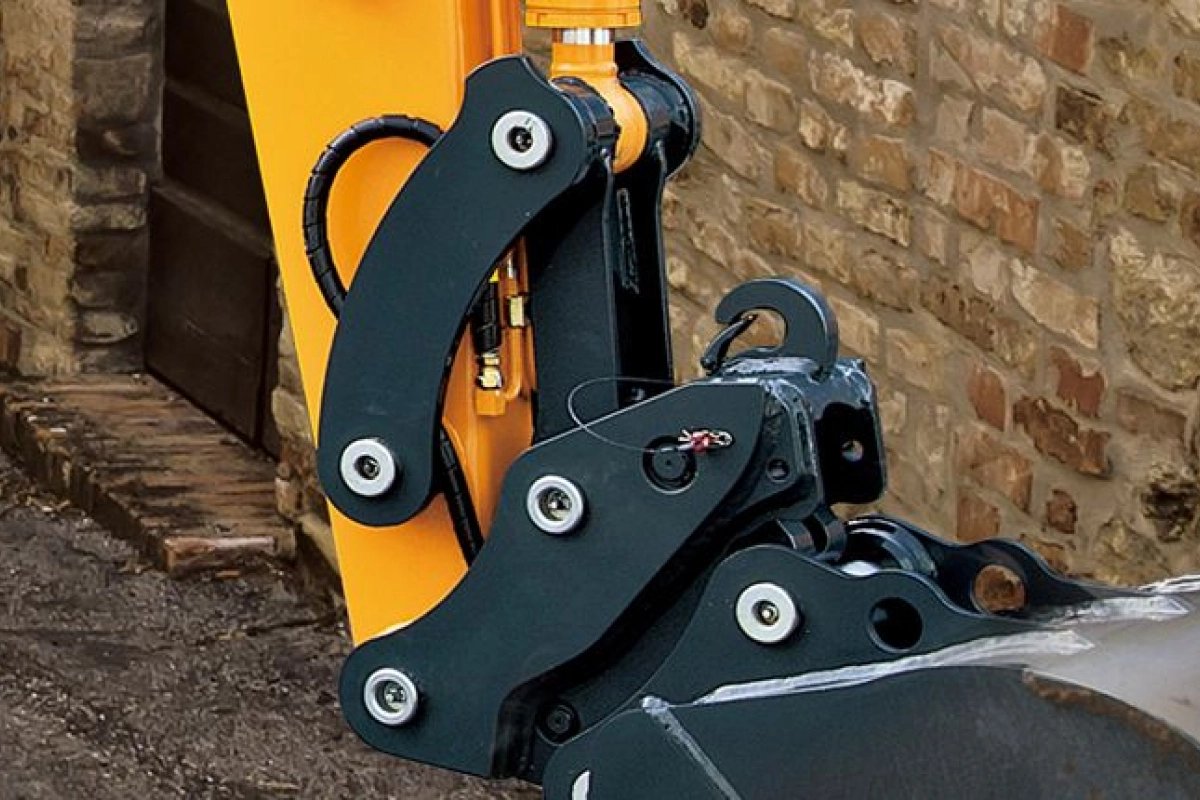

Dual-Lock Coupler
The R60CR-9A comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.
|

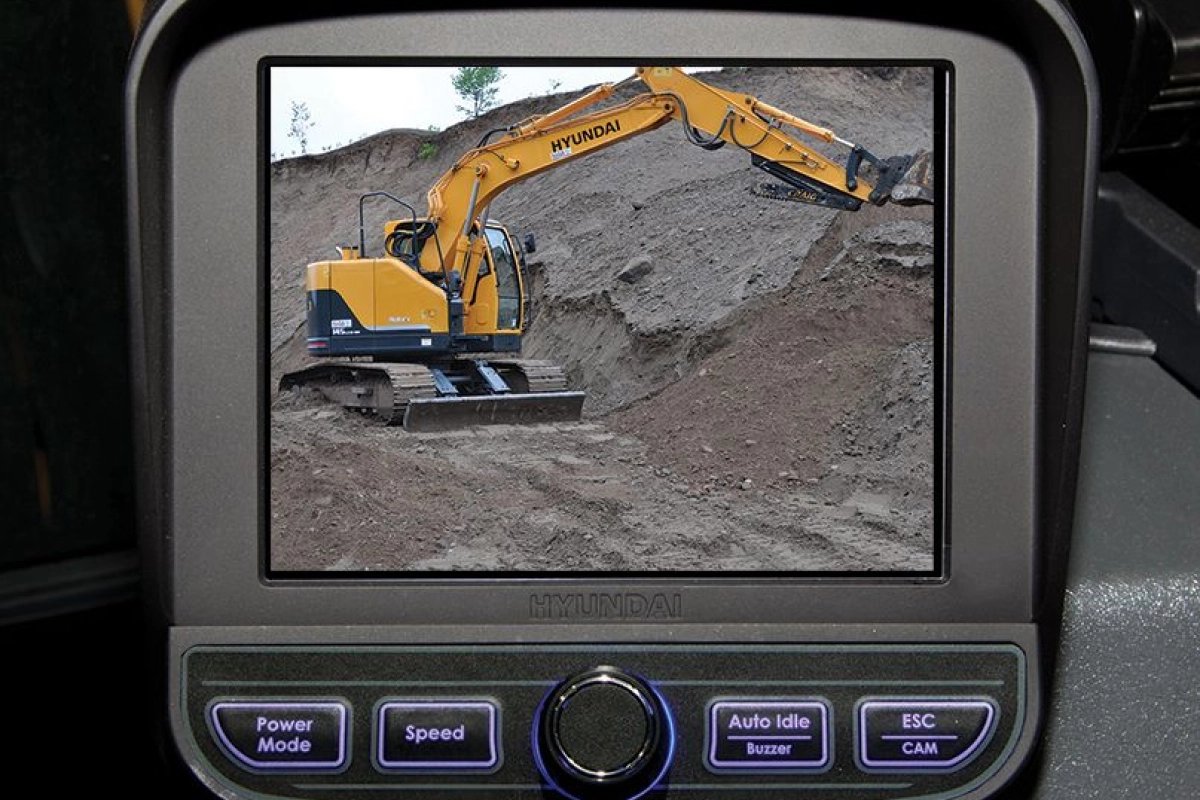

REARVIEW CAMERA
Hyundai's R60CR-9A can come equipped with a full color, integrated optional rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.
|

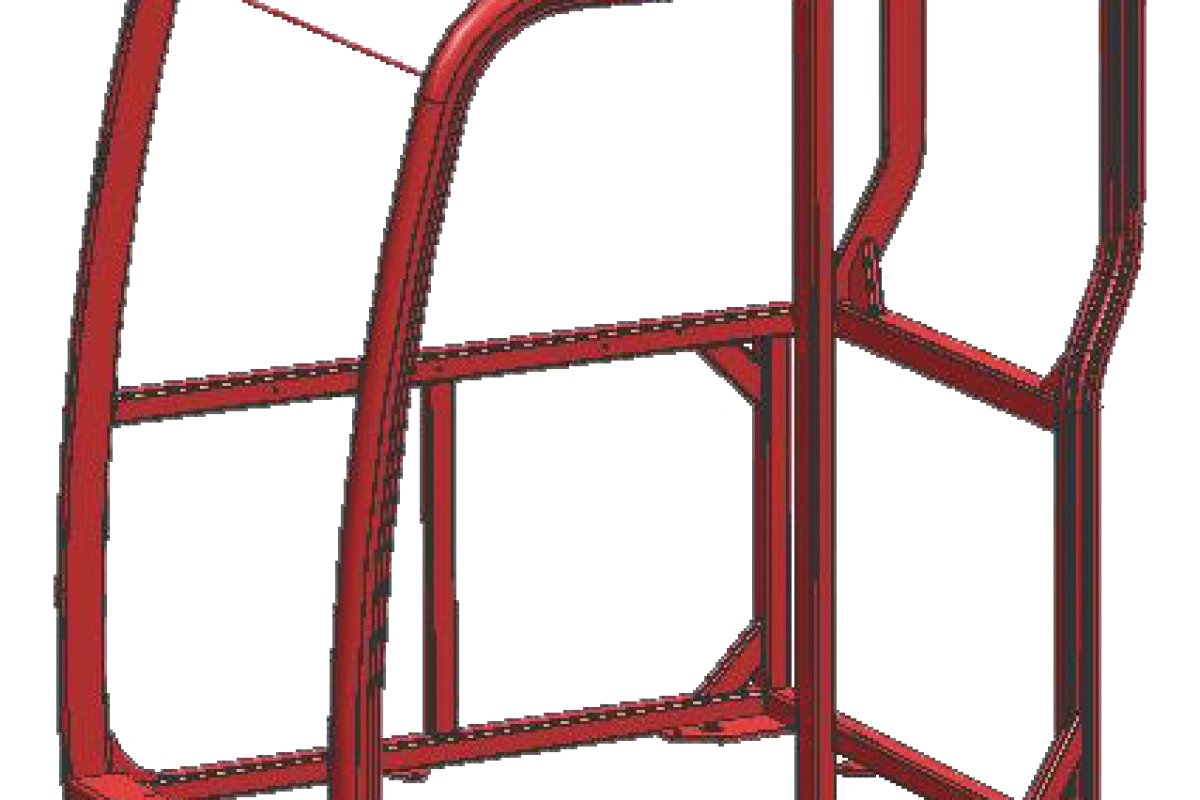

REINFORCED CAB STRUCTURE
Hyundai's R60CR-9A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.
|

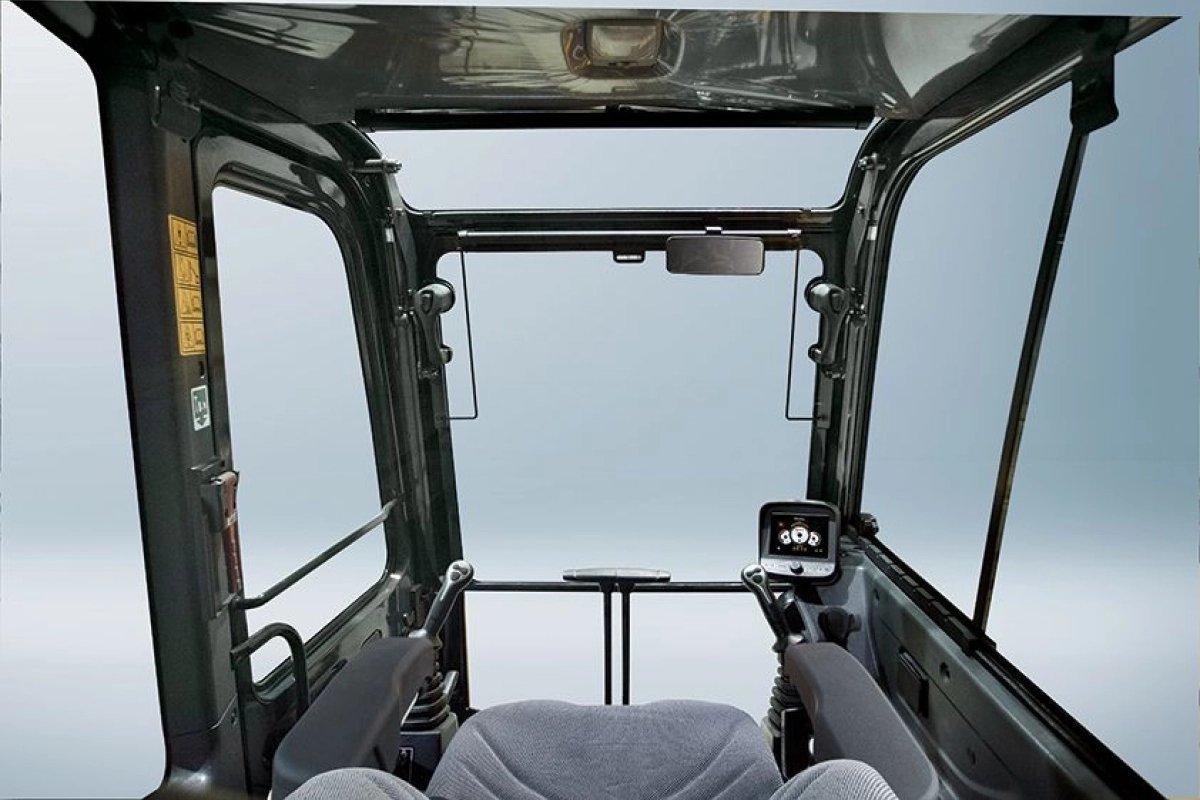

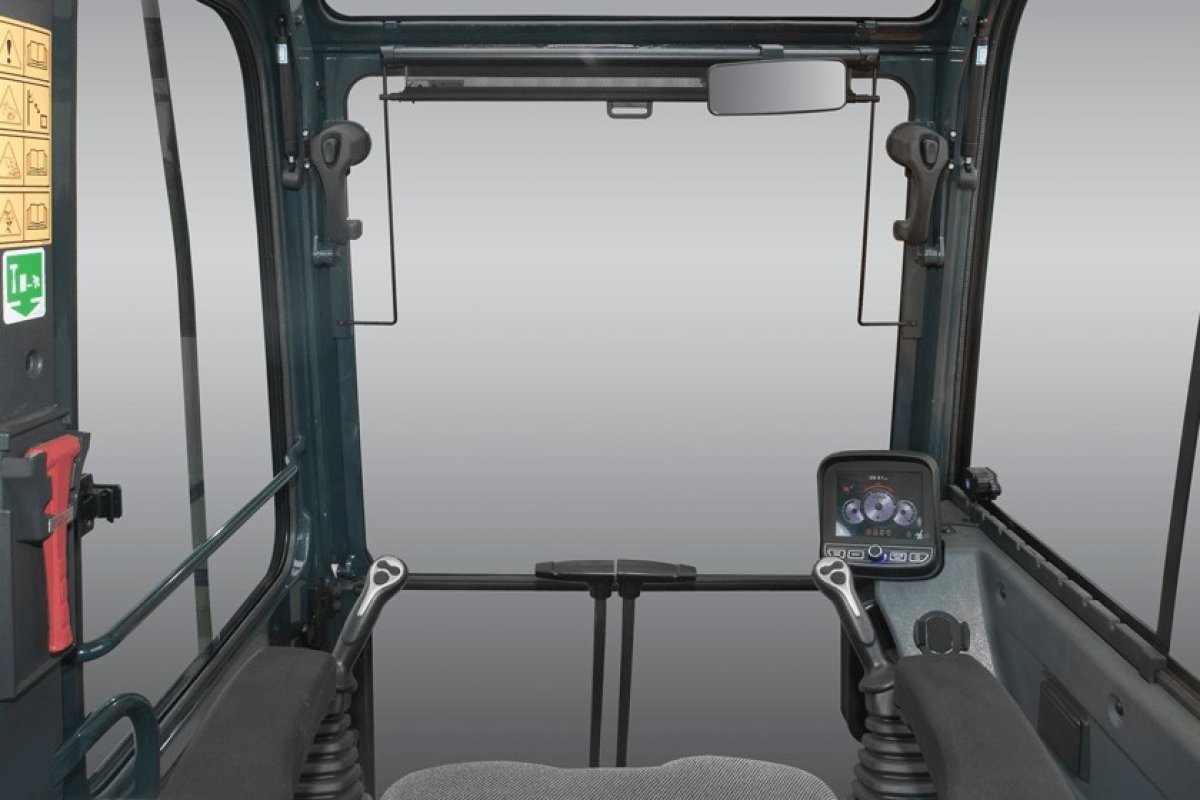

Excellent Visibility
Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.
|
|
|
