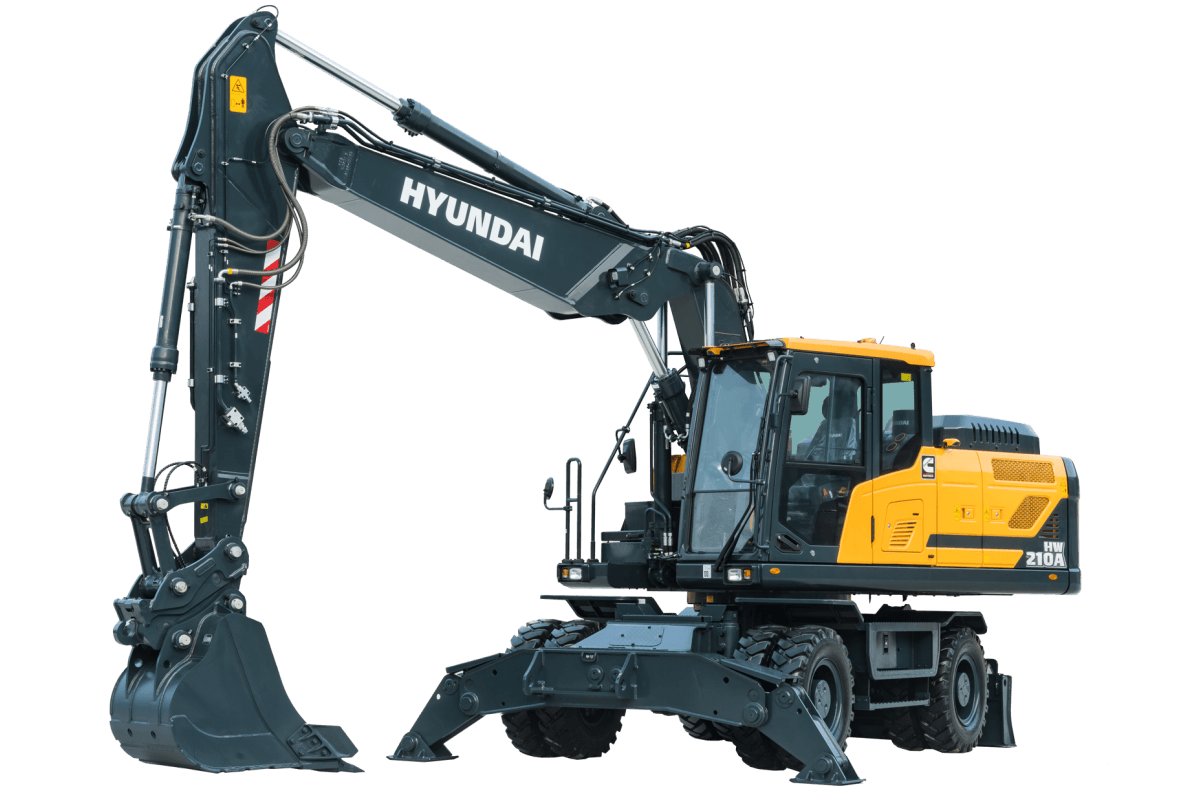

Hyundai HW210A

  • Hyundai HW210A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The Hyundai wheeled excavator product line includes three HW series models and one 9A series compact model to give you an edge in a wide range of on-road and off-road applications. These Tier 4-Final-compliant wheeled excavators deliver improved performance, increased fuel efficiency, superior travel speeds on the road, an enhanced cab and added safety features.

Specifications
Model
HW210A
Category Name
Equipment
Year
2025
Sale Type
New
Manufacturer
Hyundai
NET POWER
170 HP @ 2,200 rpm
SWING SPEED
10.7 rpm
ENGINE MODEL
Cummins B6.7
BUCKET CAPACITY
1.31 yd³
MAX TRAVEL SPEED
23.9 mph
OPERATING WEIGHT
46,685 lb.
TAIL SWING RADIUS
8' 11.9"
MAX. DIGGING DEPTH
21' 1.1"
MAX. DIGGING REACH
32' 8.5"
ARM CROWD FORCE (ISO)
24,030 lb.
BUCKET BREAKOUT FORCE (ISO)
33,951 lb.
reliability and durability

Hyundai HW210A RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HW210A is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai HW210A DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models ensuring optimum durability and reliability.
performance

Hyundai HW210A

Variable Power Control

The HW series introduces variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.

Hyundai HW210A

Attachement Flow Control

The HW series improves pump flow rate by giving the operator independent control of two pumps. It optimizes flow rate settings according to the attachment type (10 breaker types and 10 crusher types), which is ideal for various applications.

Fuel Efficiency Hyundai HW210A

HW series excavators are designed with fuel efficient tier 4 final engines, hydraulic advancements and electronic improvements that improve overall fuel efficiency by as much as 10% compared to the previous series.

Cycle Time Improvement Hyundai HW210A

Through a combination of innovative hydraulic system enhancements, Hyundai HW series excavators achieve faster cycle speeds than previous models, which increases productivity.
convenience

Hyundai HW210A

Advanced Audio System

The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.

Hyundai HW210A

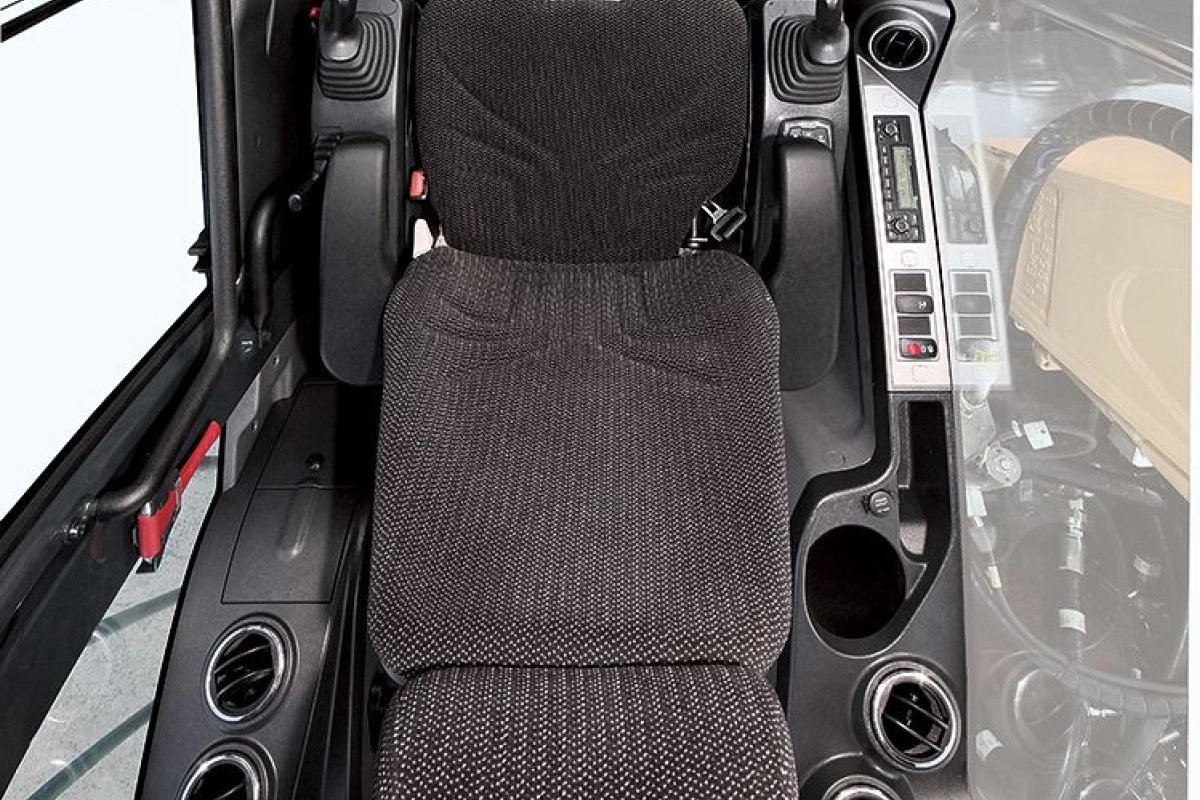

Deluxe Operator's Suspension Seat

The operator’s seat is designed to reduce fatigue and maximize productivity. Standard air suspension, selectable heat and fully adjustable seat, back, arm rests and control consoles provide a truly custom fit for any operator.

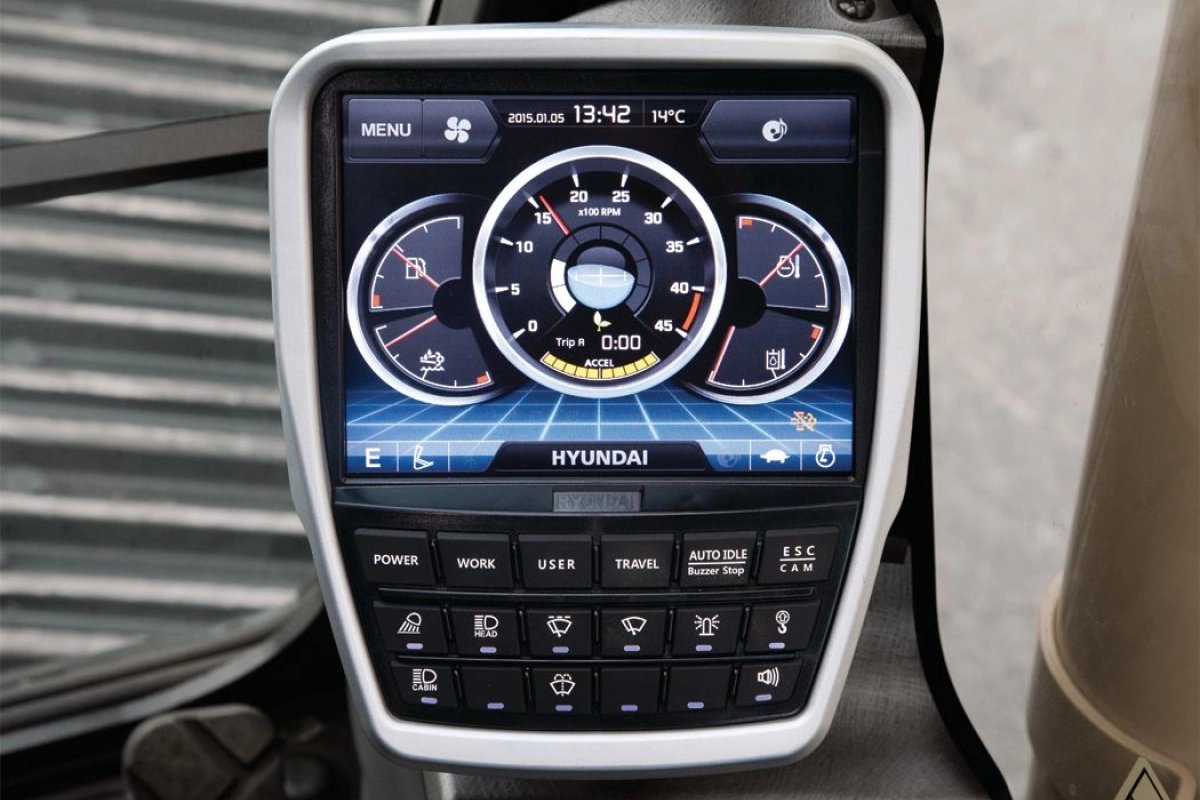

Intelligent 8" Touchscreen Monitor Hyundai HW210A

The 8-inch interactive wide touchscreen color display - with centralized switches - allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.

Innovative Haptic Control Hyundai HW210A

Haptic control is a common technology found on luxury automobiles that makes selecting menus and adjusting settings easy. The haptic remote control uses vibrations and pulses to guide the operator through menu selections, enabling control of the accelerator, air conditioner, and all functions within the cluster for maximum convenience.
serviceability

Hyundai HW210A

Easy Access to DEF System

The DEF/AdBlue® tank is installed next to the tool box. Its inlet is remotely located for easy access and convenient supply. A red lamp signal warns of overfill. The DEF/AdBlue® supply module is attached on the side of the fuel tank for easy maintenance and filter replacement.

Hyundai HW210A

Cab Air Filter Access

Cab air filter is conveniently accessible from ground level by way of a lockable door on the cab.

Hyundai HW210A

Upper-structure Access

HW series excavators are equipped with large grab rails, guard rails and a proprietary anti-slip surface on the upper structure that make accessing key service areas easier and safer.

Stacked Cooler Design Hyundai HW210A

HW series excavators feature aluminum open-core coolers mounted in a stacked configuration to improve air flow, enhance cooling efficiency and improve serviceability.
safety

AAVM (All Around View Monitoring) optional Hyundai HW210A

The Hyundai-exclusive AAVM video camera system provides the operator a 360-degree field of view on the monitor, which greatly contributes to work site safety. Part of this system includes IMOD (Intelligent Moving Object Detection), which alerts the operator to the presence of people or objects within a 5 meter (16 ft) range of operation.

Grab Rails & Guard Rails Hyundai HW210A

Large upper grab rails coupled with left and right side guard rails facilitate access to the upper while reducing potential falls.

Hyundai HW210A

Anti-Slip Surface

Hyundai's proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.

Hyundai HW210A

Auto-Travel Alarm

An auto-travel alarm will sound as soon as travel is engaged forward or reverse. This standard safety feature greatly increases job site safety by alerting workers around the machine. This alarm may be deselected by a convenient switch.
